Toyota LAND CRUISER — ELECTRONIC DIESEL INJECTION CONTROL SYSTEM

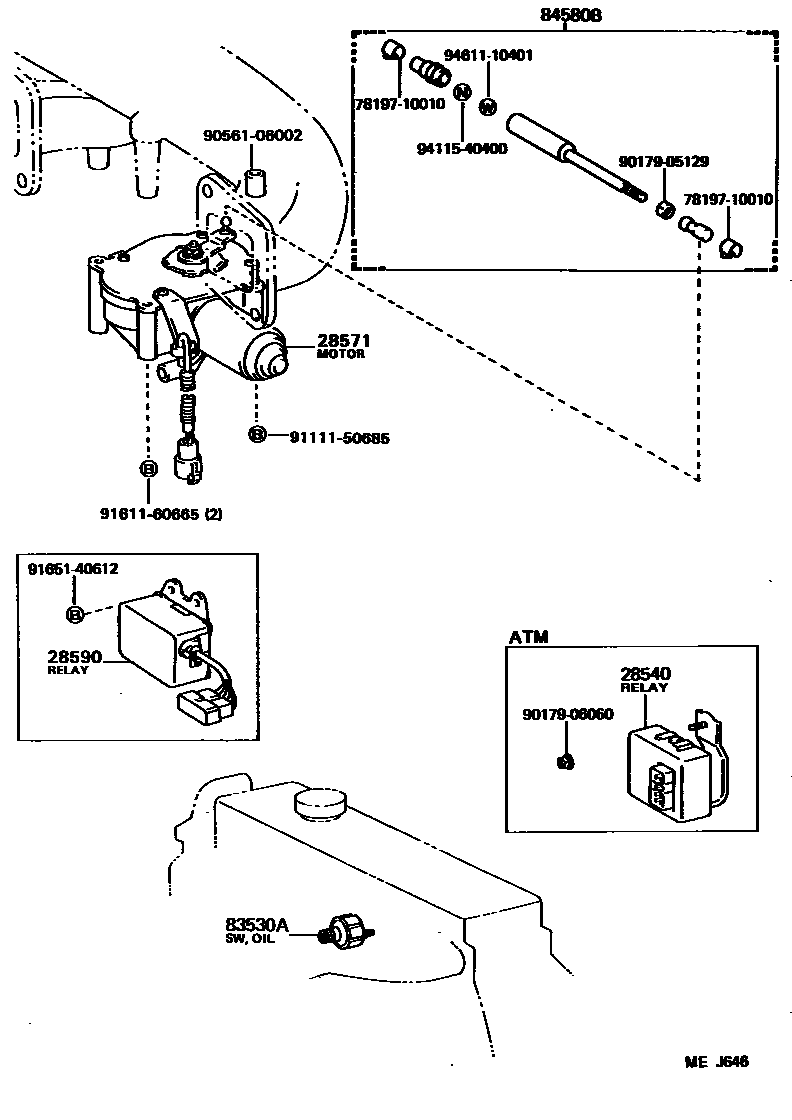

Parts diagram

28540RELAY ASSY, AIR CONTROL

main28540-68010i198708-199001

28571MOTOR, FUEL CONTROL

main28571-56150i198708-199001

28590RELAY ASSY, FUEL CONTROL

main28590-56100i198708-199001

83530ASWITCH ASSY, OIL PRESSURE

main83530-14030i198708-199001

84580BROD ASSY, CONNECTING

main84580-36040i198708-199001

7819710010CLIP, ACCELERATOR JOINT BALL

main78197-10010

9017905129

main90179-05129

9017906060

main90179-06060

9056106002

main90561-06002

9111150685

main91111-50685

9161160665

main91611-60665

9165140612

main91651-40612

9411540400

main94115-40400

9461110401

main94611-10401

14 parts on this diagram · 1 diagram in section

ELECTRONIC DIESEL INJECTION CONTROL SYSTEM for Toyota LAND CRUISER

This section contains 14 genuine Toyota parts for the ELECTRONIC DIESEL INJECTION CONTROL SYSTEM system of the Toyota LAND CRUISER. Key components include: RELAY ASSY, AIR CONTROL, MOTOR, FUEL CONTROL, RELAY ASSY, FUEL CONTROL, SWITCH ASSY, OIL PRESSURE, ROD ASSY, CONNECTING.
