Toyota LAND CRUISER — DIFFERENTIAL LOCK CONTROL

0001 1 0003 1

42506ROD SUB-ASSY, DIFFERENTIAL LOCK CABLE LINK

main42506-60010iBJ75198608-199001

42513BRACKET, DIFFERENTIAL LOCK

main42513-60030iBJ75198608-199001

42514KNOB, DIFFERENTIAL LOCK, FRONT

main42514-60030iBJ75198608-199001

42514ABUSH (FOR DIFFERENTIAL LOCK KNOB)

main90386-13014iBJ75198608-199001

42515KNOB, DIFFERENTIAL LOCK, REAR

main42515-60030iBJ70,71,73..LHD198608-199001

42518SHAFT, DIFFERENTIAL LOCK LINK

main42518-60010iBJ70,71,73..LHD198608-199001

42537BCOVER, CONTROL SHAFT DUST, NO.3

main42537-60010iBJ75198608-199001

42537CCOVER, CONTROL SHAFT DUST, NO.4

main33789-36010iBJ70,71,73..LHD198608-199001

sub33789-36020

42560LINK ASSY, DIFFERENTIAL LOCK CABLE

main42560-60011iBJ75198608-199001

42562SHAFT, DIFFERENTIAL LOCK CABLE LINK

main42562-60010iBJ75198608-199001

42562ABUSH (FOR DIFFERENTIAL LOCK CABLE LINK SHAFT)

main90386-13014iBJ75198608-199001

9020110042

main90201-10042

9046814022

main90468-14022

9161160820

main91611-60820

9165640820

main91656-40820

9411041000

main94110-41000

9451201000

main94512-01000

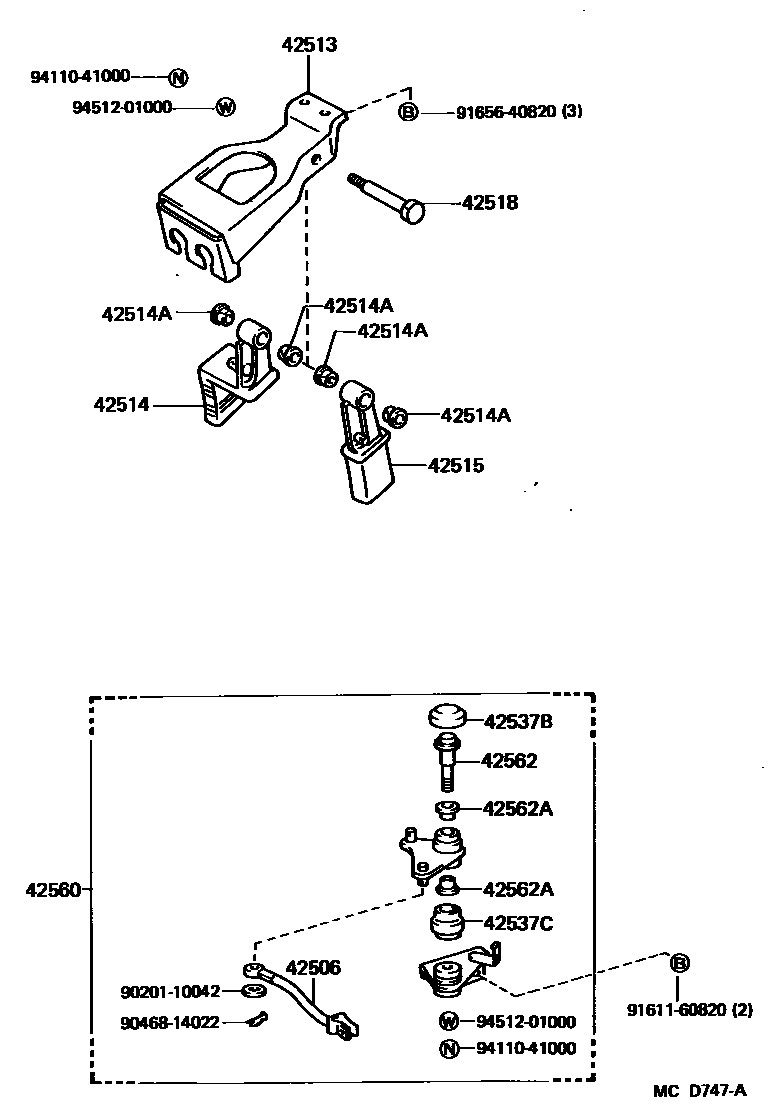

17 parts on this diagram · 2 diagrams in section
