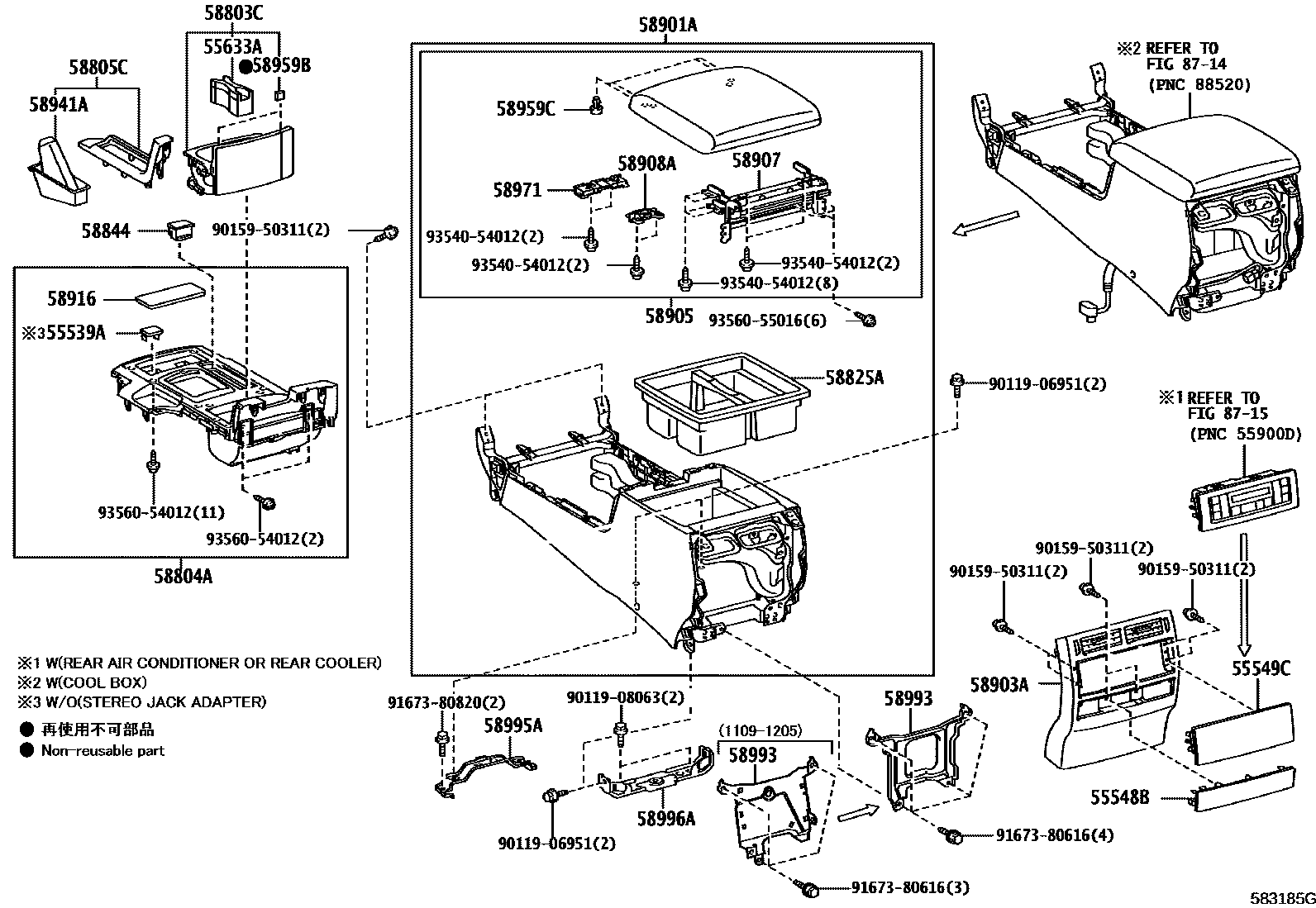

Toyota LAND CRUISER — CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1

55539ACOVER, SPARE SWITCH HOLE

main55539-52060-C0iVDJ200..LHD200709-201508

BLACK

sub55539-52060

main55539-52060-C0iURJ202..08S;VDJ200..RHD201201-201508

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER,BLACK

sub55539-52060

55548BCOVER, INSTRUMENT PANEL HOLE

main55548-60050-A0iURJ202,VDJ200201201-201508

SHELL,TRIM0#

main55548-60050-A1iURJ202,VDJ200201508-201708

FLAXEN,TRIM0#

main55548-60050-C0iURJ202..08S..VX201508-201708

BLACK,TRIM2#,4#

main55548-60050-C0iURJ202..08S..VX201508-201708

BLACK,TRIM1#,2#,4#

main55548-60050-C0iVDJ200..08S;UZJ200..LHD..08S200709-201508

BLACK,TRIM1#,2#

main55548-60050-C0iVDJ200..08S;UZJ200..LHD..08S200709-201201

BLACK,TRIM1#

main55548-60050-C0iVDJ200201201-201508

BLACK,TRIM2#

main55548-60050-C0iVDJ200..08S;URJ202..VXR;URJ202..05S201708-202104

BLACK,TRIM1#,2#,42,46

main55548-60050-C0iURJ202..08S..VX201708-202104

BLACK,TRIM2#,42,46

main55548-60050-E0iUZJ200,VDJ200200709-201201

DK. BROWN,TRIM4#

main55548-60050-E1iVDJ200..05S;URJ202..08S..VX201708-202104

NEUTRAL BEIGE,TRIM47

55549CCOVER, REAR COOLER SWITCH HOLE

main55549-60040-A0iURJ202,VDJ200..05S201201-201508

SHELL,TRIM0#

sub55549-60041

main55549-60040-A0iVDJ200..08S201201-201508

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),SHELL,TRIM0#

sub55549-60041

main55549-60040-A0iURJ202,VDJ200..05S201201-201508

REAR NO.2 SEAT-WITHOUT,SHELL,TRIM0#

sub55549-60041

main55549-60040-A1iURJ202,VDJ200..05S201508-201703

FLAXEN,TRIM0#

sub55549-60041

main55549-60040-A1iVDJ200..LHD..08S201508-201703

REAR NO.2 SEAT-WITHOUT,FLAXEN,TRIM0#

sub55549-60041

main55549-60040-C0iVDJ200..08S201201-201508

BLACK,TRIM2#

sub55549-60041

main55549-60040-C0iUZJ200,VDJ200..08S200709-201201

BLACK,TRIM1#

sub55549-60041

main55549-60040-C0iUZJ200,VDJ200..08S200709-201008

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),BLACK,TRIM1#

sub55549-60041

main55549-60040-C0iVDJ200..05S201201-201508

BLACK,TRIM1#,2#

sub55549-60041

main55549-60040-C0iVDJ200..05S201201-201508

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),BLACK,TRIM1#,2#

sub55549-60041

main55549-60040-C0iVDJ200..05S201201-201508

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),BLACK,TRIM2#

sub55549-60041

main55549-60040-C0iVDJ200..05S201201-201508

REAR NO.2 SEAT-WITHOUT,BLACK,TRIM1#

sub55549-60041

main55549-60040-C0iURJ202,VDJ200..05S201508-201703

BLACK,TRIM1#,2#,4#

sub55549-60041

main55549-60040-C0iURJ202,VDJ200..05S201508-201703

REAR NO.2 SEAT-WITHOUT,BLACK,TRIM1#,4#

sub55549-60041

main55549-60040-E0iUZJ200,VDJ200..08S200709-201201

DK. BROWN,TRIM4#

sub55549-60041

main55549-60040-E0iUZJ200,VDJ200..08S200709-201008

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),DK. BROWN,TRIM4#

sub55549-60041

main55549-60041-A1iVDJ200..LHD..08S201704-201708

REAR NO.2 SEAT-WITHOUT,FLAXEN,TRIM0#

main55549-60041-A1iURJ202,VDJ200..05S201704-201708

FLAXEN,TRIM0#

main55549-60041-C0iVDJ200..LHD..08S201704-201708

REAR NO.2 SEAT-WITHOUT,BLACK,TRIM1#,4#

main55549-60041-C0iVDJ200..05S..VXR201708-202104

BLACK,TRIM1#,2#,46

main55549-60041-C0iURJ202..05S201708-202103

REAR NO.2 SEAT-WITHOUT,BLACK,TRIM1#,46

main55549-60041-C0iURJ202,VDJ200..05S201704-201708

BLACK,TRIM1#,2#,4#

main55549-60041-E1iURJ202..05S201708-202104

NEUTRAL BEIGE,TRIM47

main55549-60041-E1iURJ202..05S201708-202103

REAR NO.2 SEAT-WITHOUT,NEUTRAL BEIGE,TRIM47

55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1

main55633-60040iUZJ200,VDJ200200709-202104

58803CBOX SUB-ASSY, CONSOLE CUP HOLDER

main58803-60030-A1iURJ202,VDJ200..LHD201201-201508

SHELL,TRIM0#,W(WOOD GRAIN)

sub58803-60030

main58803-60030-C0iUZJ200,VDJ200..05S200709-201201

BLACK,TRIM1#,W(WOOD GRAIN)

sub58803-60030

main58803-60030-C0iUZJ200,VDJ200..05S200709-201201

BLACK,TRIM1#,2#,W(WOOD GRAIN)

sub58803-60030

main58803-60030-C1iVDJ200..LHD201201-201508

BLACK,TRIM1#,2#,W(WOOD GRAIN)

sub58803-60030

main58803-60030-C1iVDJ200..LHD201201-201508

BLACK,TRIM2#,W(WOOD GRAIN)

sub58803-60030

main58803-60030-E0iUZJ200,VDJ200..LHD200709-201201

DK. BROWN,TRIM4#,W(WOOD GRAIN)

sub58803-60030

main58803-60040-A1iURJ202,VDJ200..RHD201201-201508

SHELL,TRIM0#,W(WOOD GRAIN)

sub58803-60040

main58803-60040-C0iVDJ200..RHD200709-201201

BLACK,TRIM1#,2#,W(WOOD GRAIN)

sub58803-60040

main58803-60040-C0iUZJ200..RHD200709-201201

BLACK,TRIM1#,W(WOOD GRAIN)

sub58803-60040

main58803-60040-C1iVDJ200..RHD201201-201508

BLACK,TRIM2#,W(WOOD GRAIN)

sub58803-60040

main58803-60040-C1iVDJ200..RHD201201-201508

BLACK,TRIM1#,2#,W(WOOD GRAIN)

sub58803-60040

main58803-60040-E0iUZJ200,VDJ200..RHD200709-201201

DK. BROWN,TRIM4#,W(WOOD GRAIN)

sub58803-60040

main58803-60310-A0iURJ202,VDJ200..LHD201508-201708

FLAXEN,TRIM0#

sub58803-60310

main58803-60310-C0iVDJ200..LHD;URJ202..VXR;URJ202..05S201708-201908

BLACK,TRIM1#,2#,42,46

sub58803-60310

main58803-60310-C0iURJ202..08S..VX201508-201708

BLACK,TRIM2#,4#

sub58803-60310

main58803-60310-C0iURJ202..08S..VX201508-201708

BLACK,TRIM1#,2#,4#

sub58803-60310

main58803-60310-C0iURJ202..08S..VX201708-201908

BLACK,TRIM2#,42,46

sub58803-60310

main58803-60310-C2iURJ202..08S..VX201908-202104

BLACK/SILVER HAIRLINE,TRIM2#,42,46

sub58803-60310

main58803-60310-C2iVDJ200..05S201908-202104

BLACK/SILVER HAIRLINE,TRIM1#,2#,42,46

sub58803-60310

main58803-60310-E0iURJ202,VDJ200..LHD201708-201908

NEUTRAL BEIGE,TRIM47

sub58803-60310

main58803-60310-E1iVDJ200..05S;URJ202..08S..VX201908-202104

NEUTRAL BEIGE/SILVER,TRIM47

sub58803-60310

main58803-60330-A0iVDJ200..RHD201508-201708

FLAXEN,TRIM0#

sub58803-60330

main58803-60330-C0iVDJ200..RHD201508-201708

BLACK,TRIM1#,2#,4#

sub58803-60330

main58803-60330-C0iVDJ200..RHD201708-201908

BLACK,TRIM1#,2#,42,46

sub58803-60330

main58803-60330-C1iVDJ200..RHD201908-202103

BLACK,TRIM2#,46

sub58803-60330

main58803-60330-E0iVDJ200..RHD201708-201908

NEUTRAL BEIGE,TRIM47

sub58803-60330

main58803-60330-E1iVDJ200..RHD201908-202103

NEUTRAL BEIGE,TRIM47

sub58803-60330

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-60440-C0iUZJ200..05S;VDJ200..LHD200709-201008

BLACK,TRIM1#,W(WOOD GRAIN)

sub58804-60440

main58804-60440-C0iUZJ200..LHD..08S200709-201201

BLACK,TRIM1#,2#,W(WOOD GRAIN)

sub58804-60440

main58804-60440-E0iUZJ200..05S;VDJ200..LHD200709-201201

DK. BROWN,TRIM4#,W(WOOD GRAIN)

sub58804-60440

main58804-60450-C0iUZJ200..RHD200709-201201

BLACK,TRIM1#,2#,W(WOOD GRAIN)

sub58804-60450

main58804-60450-C0iVDJ200..RHD200709-201201

BLACK,TRIM1#,W(WOOD GRAIN)

sub58804-60450

main58804-60450-E0iUZJ200,VDJ200..RHD200709-201201

DK. BROWN,TRIM4#,W(WOOD GRAIN)

sub58804-60450

main58804-60510-C0iUZJ200,VDJ200..05S201008-201201

BLACK,TRIM1#,W(WOOD GRAIN)

sub58804-60510

main58804-60510-C0iUZJ200,VDJ200..05S201008-201201

BLACK,TRIM1#,2#,W(WOOD GRAIN)

sub58804-60510

main58804-60510-E0iUZJ200..05S;VDJ200..LHD201008-201201

DK. BROWN,TRIM4#,W(WOOD GRAIN)

sub58804-60510

main58804-60890-A1iURJ202..LHD..08S201201-201508

SHELL,TRIM0#,W(WOOD GRAIN)

main58804-60890-A1iURJ202..LHD..08S201201-201508

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER,SHELL,TRIM0#,W(WOOD GRAIN)

main58804-60890-C1iURJ202..LHD..08S201201-201508

BLACK,TRIM2#,W(WOOD GRAIN)

main58804-60890-C1iURJ202..LHD..08S201201-201508

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER,BLACK,TRIM1#,W(WOOD GRAIN)

main58804-60A00-A1iURJ202,VDJ200..RHD201201-201508

SHELL,TRIM0#,W(WOOD GRAIN)

main58804-60A00-C1iVDJ200..RHD201201-201508

BLACK,TRIM1#,2#,W(WOOD GRAIN)

main58804-60A00-C1iVDJ200..RHD201201-201508

BLACK,TRIM2#,W(WOOD GRAIN)

main58804-60A30-A1iURJ202..LHD..08S201201-201508

SHELL,TRIM0#,W(WOOD GRAIN)

main58804-60A30-A1iURJ202..05S;VDJ200..LHD201201-201508

AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM JBL 14SPEAKER,SHELL,TRIM0#,W(WOOD GRAIN)

main58804-60A30-A1iURJ202..05S;VDJ200..LHD201201-201508

AUDIO(FOR OVERSEAS MARKET)-CD-CHANGER + AM/FM + *BT 9SPEAKER,SHELL,TRIM0#,W(WOOD GRAIN)

main58804-60A30-C1iURJ202..LHD..08S201201-201508

AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM JBL 14SPEAKER,BLACK,TRIM2#,W(WOOD GRAIN)

main58804-60A30-C1iVDJ200..LHD201201-201508

BLACK,TRIM2#,W(WOOD GRAIN)

main58804-60A30-C1iVDJ200..LHD201201-201508

AUDIO(FOR OVERSEAS MARKET)-CD-CHANGER + AM/FM + *BT 9SPEAKER,BLACK,TRIM2#,W(WOOD GRAIN)

main58804-60A30-C1iURJ202..05S201201-201508

BLACK,TRIM1#,2#,W(WOOD GRAIN)

main58804-60G80-A3iURJ202,VDJ200..LHD201508-201602

FLAXEN,TRIM0#

sub58804-60G81

main58804-60G80-C2iURJ202..08S..VX201508-201602

BLACK,TRIM1#,2#,4#

sub58804-60G81

main58804-60G80-C2iVDJ200..LHD;URJ202..VXR;URJ202..05S201508-201602

BLACK,TRIM2#,4#

sub58804-60G81

main58804-60G81-A3iURJ202,VDJ200..LHD201603-201708

FLAXEN,TRIM0#

main58804-60G81-C2iURJ202..VXR;URJ202..05S;VDJ200..LHD..08S201708-202104

BLACK,TRIM1#,2#,42,46

main58804-60G81-C2iURJ202..08S..VX201708-202104

BLACK,TRIM2#,42,46

main58804-60G81-C2iURJ202..08S..VX201603-201708

BLACK,TRIM2#,4#

main58804-60G81-C2iURJ202..08S..VX201603-201708

BLACK,TRIM1#,2#,4#

main58804-60G81-E0iURJ202..VXR;URJ202..05S;VDJ200..LHD..08S201708-202104

NEUTRAL BEIGE,TRIM47

main58804-60J00-A1iVDJ200..RHD201508-201708

FLAXEN,TRIM0#

main58804-60J00-C1iVDJ200..RHD201508-201708

BLACK,TRIM1#,2#,4#

main58804-60J00-C1iVDJ200..RHD201708-202103

BLACK,TRIM1#,2#,42,46

main58804-60J00-E0iVDJ200..RHD201708-202103

NEUTRAL BEIGE,TRIM47

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-60050-A0iURJ202,VDJ200..LHD201201-201508

SHELL,TRIM0#,W(WOOD GRAIN)

main58805-60050-C0iVDJ200..LHD200709-201508

BLACK,TRIM1#,2#,W(WOOD GRAIN)

main58805-60050-C0iVDJ200..LHD201201-201508

BLACK,TRIM2#,W(WOOD GRAIN)

main58805-60050-C0iUZJ200..LHD..08S200709-201201

BLACK,TRIM1#,W(WOOD GRAIN)

main58805-60050-E0iUZJ200,VDJ200..LHD200709-201201

DK. BROWN,TRIM4#,W(WOOD GRAIN)

main58805-60060-A0iURJ202,VDJ200..RHD201201-201508

SHELL,TRIM0#,W(WOOD GRAIN)

main58805-60060-C0iURJ202..RHD201201-201508

BLACK,TRIM2#,W(WOOD GRAIN)

main58805-60060-C0iVDJ200..RHD200709-201508

BLACK,TRIM1#,2#,W(WOOD GRAIN)

main58805-60060-C0iVDJ200..RHD200709-201201

BLACK,TRIM1#,W(WOOD GRAIN)

main58805-60060-E0iUZJ200,VDJ200..RHD200709-201201

DK. BROWN,TRIM4#,W(WOOD GRAIN)

main58805-60300-A1iURJ202,VDJ200..LHD201508-201708

FLAXEN,TRIM0#

main58805-60300-C0iURJ202..08S..VX201508-201708

BLACK,TRIM1#,2#,4#

main58805-60300-C0iURJ202..08S..VX201508-201708

BLACK,TRIM2#,4#

main58805-60300-C0iURJ202..VXR;URJ202..05S;VDJ200..LHD..08S201708-202104

BLACK,TRIM1#,2#,42,46

main58805-60300-C0iURJ202..08S..VX201708-202104

BLACK,TRIM2#,42,46

main58805-60300-E0iURJ202..VXR;URJ202..05S;VDJ200..LHD..08S201708-202104

NEUTRAL BEIGE,TRIM47

main58805-60310-A1iVDJ200..RHD201508-201708

FLAXEN,TRIM0#

main58805-60310-C0iVDJ200..RHD201708-202103

BLACK,TRIM1#,2#,42,46

main58805-60310-C0iVDJ200..RHD201508-201708

BLACK,TRIM1#,2#,4#

main58805-60310-E0iVDJ200..RHD201708-202103

NEUTRAL BEIGE,TRIM47

58825APOCKET, CONSOLE BOX

main58806-60080iVDJ200;URJ202..LHD200709-201808

main58806-60080iURJ202..05S201508-202104

SEAT COVER MATERIAL-NATURAL LEATHER

58844BEZEL, CONSOLE BOX

main84656-60110iVDJ200..LHD201201-201508

SEAT COVER MATERIAL-MOQUETTE

main84656-60110iUZJ200;VDJ200..RHD200709-201201

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-60610-C0iUZJ200..LHD200709-201201

BLACK,TRIM1#

main58901-60610-C0iVDJ200..05S200709-201201

BLACK,TRIM1#,2#

main58901-60610-E0iVDJ200..LHD200709-201201

DK. BROWN,TRIM4#

main58901-60620-C0iUZJ200..05S201008-201201

BLACK,TRIM1#,2#

main58901-60620-C0iUZJ200..LHD..08S201008-201201

BLACK,TRIM1#

main58901-60620-E0iUZJ200..LHD201008-201201

DK. BROWN,TRIM4#

main58901-60640-C0iUZJ200,VDJ200..RHD200709-201008

BLACK,TRIM1#

main58901-60640-E0iUZJ200,VDJ200..RHD200709-201008

DK. BROWN,TRIM4#

main58901-60650-C0iVDJ200..RHD201008-201201

BLACK,TRIM1#

main58901-60650-C0iVDJ200..RHD201008-201201

BLACK,TRIM1#,2#

main58901-60650-E0iUZJ200,VDJ200..RHD201008-201201

DK. BROWN,TRIM4#

main58901-60730-A1iVDJ200..LHD201201-201411

SHELL,TRIM0#

sub58901-60731

main58901-60730-C1iVDJ200..LHD201201-201411

BLACK,TRIM1#

sub58901-60731

main58901-60731-A1iVDJ200..LHD201412-201508

SHELL,TRIM0#

main58901-60731-C1iVDJ200..LHD201412-201508

BLACK,TRIM1#

main58901-60740-A1iURJ202..LHD201201-201411

SHELL,TRIM0#

sub58901-60741

main58901-60740-A1iURJ202..LHD201201-201411

SEAT COVER MATERIAL-NATURAL LEATHER,SHELL,TRIM0#

sub58901-60741

main58901-60740-C1iURJ202..LHD201201-201411

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

sub58901-60741

main58901-60740-C1iURJ202..LHD201201-201411

BLACK,TRIM2#

sub58901-60741

main58901-60741-A1iURJ202..LHD201412-201508

SEAT COVER MATERIAL-NATURAL LEATHER,SHELL,TRIM0#

main58901-60741-A1iURJ202..LHD201412-201508

SHELL,TRIM0#

main58901-60741-A3iURJ202..VX201508-201708

SEAT COVER MATERIAL-NATURAL LEATHER,FLAXEN,TRIM0#

main58901-60741-A3iVDJ200..LHD..VX201508-201708

FLAXEN,TRIM0#

main58901-60741-C1iVDJ200..LHD201412-201508

BLACK,TRIM2#

main58901-60741-C1iVDJ200..LHD201412-201508

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

main58901-60741-C3iVDJ200..05S..VX201708-202104

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,42,46

main58901-60741-C3iURJ202..VX201508-201708

BLACK,TRIM2#,4#

main58901-60741-C3iURJ202..VX201508-201708

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4#

main58901-60741-C3iURJ202..08S..VX201708-202104

BLACK,TRIM2#,42,46

main58901-60741-E0iURJ202..08S..VX201708-202104

NEUTRAL BEIGE,TRIM47

main58901-60741-E0iURJ202..08S..VX201708-202104

SEAT COVER MATERIAL-NATURAL LEATHER,NEUTRAL BEIGE,TRIM47

main58901-60770-A1iVDJ200..RHD201201-201411

SHELL,TRIM0#

sub58901-60771

main58901-60770-C1iVDJ200..RHD201201-201411

BLACK,TRIM2#

sub58901-60771

main58901-60771-A1iVDJ200..RHD201412-201508

SHELL,TRIM0#

main58901-60771-A3iVDJ200..RHD..VX201508-201608

FLAXEN,TRIM0#

main58901-60771-C1iVDJ200..RHD201412-201508

BLACK,TRIM2#

main58901-60771-C3iVDJ200..RHD..VX201508-201608

BLACK,TRIM2#,4#

main58901-60830-A2iURJ202,VDJ200..LHD..VXR201508-201708

FLAXEN/SILVER HAIRLINE,TRIM0#

main58901-60830-C2iURJ202,VDJ200..VXR201708-201808

BLACK,TRIM2#,42,46

main58901-60830-C2iURJ202,VDJ200..LHD..VXR201508-201708

BLACK,TRIM2#,4#

main58901-60830-E0iURJ202,VDJ200..VXR201708-201808

NEUTRAL BEIGE,TRIM47

main58901-60840-A2iVDJ200..RHD..VXR201508-201608

FLAXEN/SILVER HAIRLINE,TRIM0#

main58901-60840-C2iVDJ200..RHD..VXR201508-201608

BLACK/SILVER HAIRLINE,TRIM2#,4#

main58901-60860-A1iVDJ200..LHD..VX201508-201708

FLAXEN,TRIM0#

main58901-60860-A1iVDJ200..LHD..VX201508-201708

SEAT COVER MATERIAL-FABRIC(MOQUETTE),FLAXEN,TRIM0#

main58901-60860-C1iVDJ200..05S..VX201708-202104

BLACK,TRIM1#,46

main58901-60860-C1iVDJ200..05S..VX201708-202104

SEAT COVER MATERIAL-FABRIC(MOQUETTE),BLACK,TRIM1#,46

main58901-60860-C1iURJ202..05S;URJ202,VDJ200..LHD..VXR201508-201708

SEAT COVER MATERIAL-FABRIC(MOQUETTE),BLACK,TRIM1#,4#

main58901-60860-C1iURJ202..05S;URJ202,VDJ200..LHD..VXR201508-201708

BLACK,TRIM1#,4#

main58901-60860-E0iVDJ200..05S..VXR201708-202104

SEAT COVER MATERIAL-FABRIC(MOQUETTE),NEUTRAL BEIGE,TRIM47

main58901-60860-E0iURJ202..05S;URJ202,VDJ200..08S..VXR201708-202104

NEUTRAL BEIGE,TRIM47

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-60160-C0iVDJ200..08S;UZJ200..LHD..08S200709-201010

BLACK,TRIM1#,2#

sub58903-60161

main58903-60160-C0iVDJ200..08S;UZJ200..LHD..08S200709-201010

BLACK,TRIM1#

sub58903-60161

main58903-60160-E0iUZJ200,VDJ200200709-201010

DK. BROWN,TRIM4#

sub58903-60161

main58903-60161-C0iVDJ200..08S;UZJ200..LHD..08S201011-201201

BLACK,TRIM1#,2#

sub58903-60909

main58903-60161-C0iVDJ200..08S;UZJ200..LHD..08S201011-201201

BLACK,TRIM1#

sub58903-60909

main58903-60161-E0iUZJ200,VDJ200201011-201201

DK. BROWN,TRIM4#

sub58903-60909

main58903-60350-A0iURJ202,VDJ200201201-201508

SHELL,TRIM0#

main58903-60350-C0iVDJ200201201-201508

BLACK,TRIM1#,2#

main58903-60350-C0iVDJ200201201-201508

BLACK,TRIM2#

main58903-60690-A0iURJ202,VDJ200201508-201708

FLAXEN,TRIM0#

main58903-60690-C0iURJ202..08S..VX201508-201708

BLACK,TRIM2#,4#

main58903-60690-C0iURJ202..08S..VX201508-201708

BLACK,TRIM1#,2#,4#

main58903-60690-C0iVDJ200..08S;URJ202..VXR;URJ202..05S201708-202104

BLACK,TRIM1#,2#,42,46

main58903-60690-C0iURJ202..08S..VX201708-202104

BLACK,TRIM2#,42,46

main58903-60690-E0iVDJ200..05S;URJ202..08S..VX201708-202104

NEUTRAL BEIGE,TRIM47

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-60190-C0iVDJ200..LHD200709-201201

BLACK,TRIM1#

main58905-60190-E0iUZJ200;VDJ200..RHD200709-201201

DK. BROWN,TRIM4#

main58905-60200-C0iVDJ200..RHD;UZJ200..LHD..08S201008-201201

BLACK,TRIM1#

main58905-60200-C0iUZJ200..RHD;UZJ200..05S201008-201201

BLACK,TRIM1#,2#

main58905-60200-E0iUZJ200;VDJ200..RHD201008-201201

DK.BROWN,TRIM4#

main58905-60420-A1iVDJ200..LHD201201-201508

SHELL,TRIM0#

main58905-60420-A1iVDJ200..LHD201201-201508

SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT),SHELL,TRIM0#

main58905-60420-C1iVDJ200..LHD201201-201508

BLACK,TRIM1#

main58905-60420-C1iVDJ200..LHD201201-201508

SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT),BLACK,TRIM1#

main58905-60430-A2iURJ202..LHD;VDJ200..RHD201201-201508

SHELL,TRIM0#

main58905-60430-A2iURJ202..LHD;VDJ200..RHD201201-201508

SEAT COVER MATERIAL-NATURAL LEATHER,SHELL,TRIM0#

main58905-60430-A5iVDJ200..LHD..VX201508-201708

SEAT COVER MATERIAL-NATURAL LEATHER,FLAXEN,TRIM0#

main58905-60430-A5iVDJ200..RHD..VX201508-201708

FLAXEN,TRIM0#

main58905-60430-C2iURJ202..LHD;VDJ200..RHD201201-201508

BLACK,TRIM2#

main58905-60430-C2iVDJ200..LHD201201-201508

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

main58905-60430-C5iVDJ200..LHD..08S..VX201708-202104

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,42,46

main58905-60430-C5iURJ202..VX201508-201708

BLACK,TRIM2#,4#

main58905-60430-C5iURJ202..VX201508-201708

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4#

main58905-60430-C5iURJ202..08S..VX201708-202104

BLACK,TRIM2#,42,46

main58905-60430-E0iVDJ200..05S..VX201708-202104

NEUTRAL BEIGE,TRIM47

main58905-60430-E0iURJ202..05S201708-202104

SEAT COVER MATERIAL-NATURAL LEATHER,NEUTRAL BEIGE,TRIM47

main58905-60550-A2iVDJ200..RHD..VXR201508-201708

FLAXEN/SILVER HAIRLINE,TRIM0#

main58905-60550-C2iURJ202,VDJ200..LHD..VXR201508-201708

BLACK,TRIM2#,4#

main58905-60550-C2iURJ202,VDJ200..VXR201708-201808

BLACK,TRIM2#,42,46

main58905-60550-E0iURJ202,VDJ200..VXR201708-201808

NEUTRAL BEIGE,TRIM47

main58905-60610-A0iVDJ200..LHD..VX201508-201708

FLAXEN/FLAXEN,TRIM0#

main58905-60610-A0iVDJ200..LHD..VX201508-201708

SEAT COVER MATERIAL-FABRIC(MOQUETTE),FLAXEN/FLAXEN,TRIM0#

main58905-60610-C0iVDJ200..05S..VX201708-202104

BLACK/BLACK,TRIM1#,42,46

main58905-60610-C0iVDJ200..05S..VX201708-202104

SEAT COVER MATERIAL-FABRIC(MOQUETTE),BLACK/BLACK,TRIM1#,42,46

main58905-60610-C0iURJ202,VDJ200..08S..VXR201708-202103

SEAT COVER MATERIAL-FABRIC(MOQUETTE),BLACK/BLACK,TRIM1#,46

main58905-60610-C0iURJ202..05S;URJ202,VDJ200..LHD..VXR201508-201708

SEAT COVER MATERIAL-FABRIC(MOQUETTE),BLACK/BLACK,TRIM1#,4#

main58905-60610-C0iURJ202..05S;URJ202,VDJ200..LHD..VXR201508-201708

BLACK/BLACK,TRIM1#,4#

main58905-60610-E0iVDJ200..LHD..08S..VX201708-202104

SEAT COVER MATERIAL-FABRIC(MOQUETTE),NEUTRAL BEIGE,TRIM47

main58905-60610-E0iVDJ200..LHD..08S..VX201708-202104

NEUTRAL BEIGE,TRIM47

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-60060iUZJ200,VDJ200200709-202104

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-60040iUZJ200,VDJ200200709-202104

58916MAT, BOX BOTTOM

main58916-60080iUZJ200..05S;VDJ200..LHD200709-201201

main58916-60080iVDJ200..LHD201201-201508

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

main58916-60090iURJ202..05S;VDJ200..LHD201201-201508

AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM JBL 14SPEAKER

main58916-60090iUZJ200..05S;VDJ200..LHD201008-201201

main58916-60090iURJ202..05S;VDJ200..LHD201201-201508

AUDIO(FOR OVERSEAS MARKET)-CD-CHANGER + AM/FM + *BT 9SPEAKER

58941ACOVER, PARKING BRAKE HOLE

main58809-60060-A0iURJ202,VDJ200..LHD201201-201508

SHELL,TRIM0#

main58809-60060-C0iUZJ200,VDJ200..05S200709-201508

BLACK,TRIM1#,2#

main58809-60060-C0iUZJ200,VDJ200..LHD..08S200709-201201

BLACK,TRIM1#

main58809-60060-C0iVDJ200..LHD201201-201508

BLACK,TRIM2#

main58809-60060-E0iUZJ200,VDJ200..LHD200709-201201

DK. BROWN,TRIM4#

main58809-60070-A0iURJ202,VDJ200..RHD201201-201508

SHELL,TRIM0#

main58809-60070-C0iURJ202..RHD200709-201508

BLACK,TRIM1#,2#

main58809-60070-C0iURJ202..RHD201201-201508

BLACK,TRIM2#

main58809-60070-C0iUZJ200..RHD200709-201201

BLACK,TRIM1#

main58809-60070-E0iUZJ200,VDJ200..RHD200709-201201

DK. BROWN,TRIM4#

main58809-60110-A0iURJ202,VDJ200..LHD201508-201708

FLAXEN,TRIM0#

main58809-60110-C0iURJ202..08S..VX201708-202104

BLACK,TRIM1#,2#,42,46

main58809-60110-C0iURJ202..08S..VX201508-201708

BLACK,TRIM2#,4#

main58809-60110-C0iURJ202..08S..VX201508-201708

BLACK,TRIM1#,2#,4#

main58809-60110-C0iURJ202..08S..VX201708-202104

BLACK,TRIM2#,42,46

main58809-60110-E1iURJ202..VXR;URJ202..05S;VDJ200..LHD..08S201708-202104

NEUTRAL BEIGE,TRIM47

main58809-60120-A0iVDJ200..RHD201508-201708

FLAXEN,TRIM0#

main58809-60120-C0iVDJ200..RHD201708-202103

BLACK,TRIM1#,2#,42,46

main58809-60120-C0iVDJ200..RHD201508-201708

BLACK,TRIM1#,2#,4#

main58809-60120-E1iVDJ200..RHD201708-202103

NEUTRAL BEIGE,TRIM47

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60030iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S200709-202104

58959CCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iUZJ200,VDJ200200709-202104

58971LOCK, CONSOLE COMPARTMENT DOOR

main58971-60030iUZJ200,VDJ200200709-201201

main58971-60060iVDJ200..05S..VX201508-202104

SEAT COVER MATERIAL-NATURAL LEATHER

main58971-60060iVDJ200;URJ202..LHD201201-201808

main58971-60080-A0iVDJ200..LHD..VX201508-201708

SEAT COVER MATERIAL-FABRIC(MOQUETTE),FLAXEN,TRIM0#

main58971-60080-A0iURJ202..05S;URJ202,VDJ200..LHD..VXR201508-201708

FLAXEN,TRIM0#

main58971-60080-C0iVDJ200..05S..VX201708-202104

SEAT COVER MATERIAL-FABRIC(MOQUETTE),BLACK,TRIM1#,42,46

main58971-60080-C0iVDJ200..05S..VX201708-202104

BLACK,TRIM1#,42,46

main58971-60080-C0iVDJ200..LHD..08S..VX201708-202103

SEAT COVER MATERIAL-FABRIC(MOQUETTE),BLACK,TRIM1#,46

main58971-60080-C0iVDJ200..LHD..VX201508-201708

SEAT COVER MATERIAL-FABRIC(MOQUETTE),BLACK,TRIM1#,4#

main58971-60080-C0iVDJ200..LHD..VX201508-201708

BLACK,TRIM1#,4#

main58971-60080-E0iVDJ200..05S..VX201708-202104

NEUTRAL BEIGE,TRIM47

main58971-60080-E0iVDJ200..LHD..08S..VX201708-202104

SEAT COVER MATERIAL-FABRIC(MOQUETTE),NEUTRAL BEIGE,TRIM47

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58993-60090iURJ202201508-201908

RUSSIA SPEC

sub86719-60310

main58993-60090iUZJ200,VDJ200200907-201508

sub86719-60310

main58993-60090iVDJ200..LHD..08S201508-202104

MAYDAY SYSTEM-WITH

sub86719-60310

main58993-60090iURJ202201508-201908

KAZAKHSTAN SPEC

sub86719-60310

main86719-60310iUZJ200,VDJ200201109-201205

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-60070iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S200709-202104

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-60080iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S200709-202104

8714

8715

9011906951

main90119-06951

9011908063

main90119-08063

9015950311

main90159-50311

9167380616

main91673-80616

9167380820

main91673-80820

9354054012

main93540-54012

9356054012

main93560-54012

9356055016

main93560-55016

32 parts on this diagram · 4 diagrams in section
