Toyota LAND CRUISER — BATTERY & BATTERY CABLE

0001 1 0002 1 0003 1 0004 1 0006 1

28800BATTERY

main28800-14010i2LT..LJ73;2LT..LJ70..STD,VX;2LT..LJ70..LHD..LX;13BT,3B,2L..BJ7#,LJ70198411-199001

55D23R,55D23R

sub28800-15020

main28800-42010i22R,3B,2L#..BJ75,LJ7#,RJ7#..LHD198411-199001

75D31L,75D31L(N70ZL)

sub28800-42020

main28800-45030i3B..BJ70,73198411-198501

75D31L-MF(N70ZL-MF)

main28800-45050i3B..BJ70..RHD198501-199001

75D31L,75D31L-MF(N70ZL-MF)

sub28800-42130

main28800-46012i3B..BJ70..RHD198411-199001

75D31R,75D31R(N70Z)

sub28800-46050

main28800-46012i22RE..RJ7#198812-199001

75D31R,75D31R

sub28800-46050

main28800-54290i3B..BJ73..VM198608-199001

130E41R,130E41R(NX200-10)

main28800-56040i22R..RJ7#198411-199001

48D26L,48D26L(N50L)

sub28800-73010

main28800-61010i3B..BJ70,73198411-198501

75D31R-MF(N70Z-MF)

sub28800-46012

main28800-61030i3B..BJ70..RHD198501-199001

75D31R,75D31R-MF(N70Z-MF)

sub28800-46012

main28800-64010i2LT..LJ73;2LT..LJ70..STD,VX;2LT..LJ70..LHD..LX;13BT,3B,2L..BJ7#,LJ70..LHD198411-199001

55D23L,55D23L

sub28800-42041

28800ATERMINAL, BATTERY POSITIVE

main90982-05005i22R..RJ7#198512-198610

sub90982-05030

main90982-05030i22R..RJ70198610-199001

main90982-05031i22RE..RJ7#198504-199001

sub82675-60030

main99142-87175i22R,3B,2L..BJ73,LJ70,RJ70198411-198504

sub82675-30020

28800BCABLE, BATTERY TO GROUND

main82123-90K00i3B..BJ73..VM198510-199001

RH

main82123-90K00i13BT,3B..BJ7#..LHD..(LX,STD)198411-199001

COLD SPEC,RH

main82123-90K00i2L#..LJ7#..LHD198411-199001

24V

main82123-90K03i3B..BJ73..VM198510-198904

LH

main82123-90K03i3B..BJ70..RHD198608-199001

main82123-90K03i3B..BJ73..STD198411-198808

12V

main82123-90K04i2L#..LJ7#..LHD198411-199001

COLD SPEC,LH

main82123-90K06i22R..RJ7#198411-199001

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-90K01i3B..BJ73..VM198904-199001

main82122-90K02i3B..BJ70..RHD198608-198808

main82122-90K06i13BT,3B..BJ7#..LHD198411-199001

main82122-90K06i2LT..LJ70..RHD..LX198805-199001

COLD SPEC

main82122-90K08i22R..RJ7#198411-199001

main82122-90K13i2LT..LJ70..LHD198805-199001

main82122-90K14i22RE..RJ7#198812-199001

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24010i22R,13BT,3B,2L#..BJ7#,LJ7#,RJ7#198411-199001

28800FCABLE, BATTERY TO BATTERY

main82122-90K03i3B..BJ70..RHD198608-198808

main82122-90K04i13BT,3B..BJ7#..LHD..STD198411-199001

main82122-90K05i3B..BJ73..VM198510-198904

main82122-90K07i2L#..LJ7#..LHD198411-198810

main82122-90K15i2LT..LJ7#..LHD198810-199001

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9011908116

main90119-08116

9017908146

main90179-08146

9046310031

main90463-10031

9046310521

main90463-10521

9165161016

main91651-61016

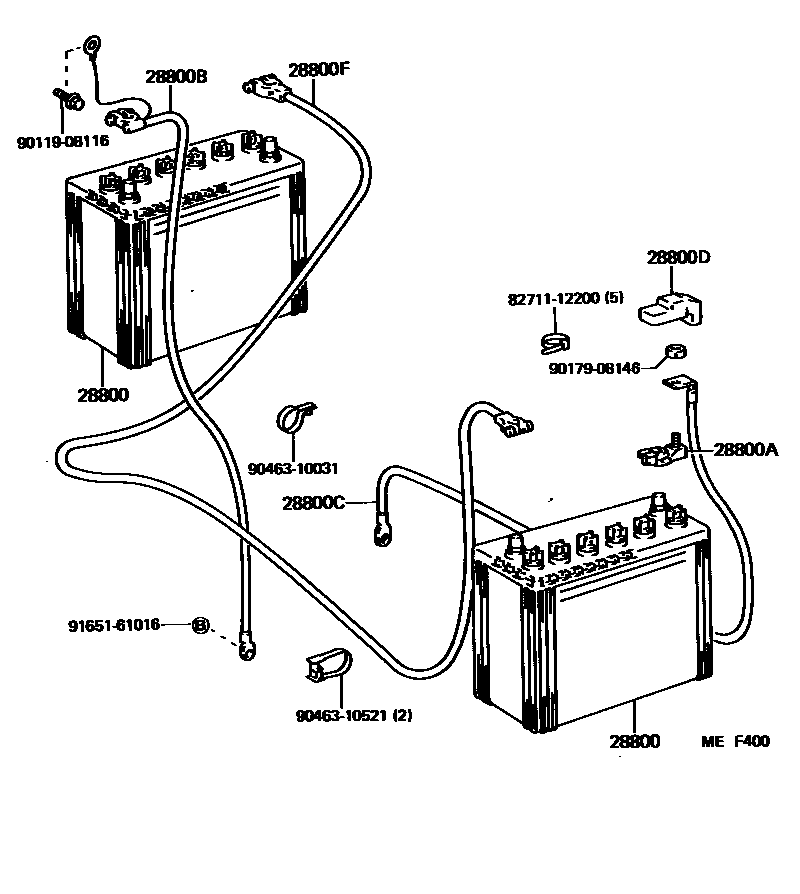

12 parts on this diagram · 5 diagrams in section
