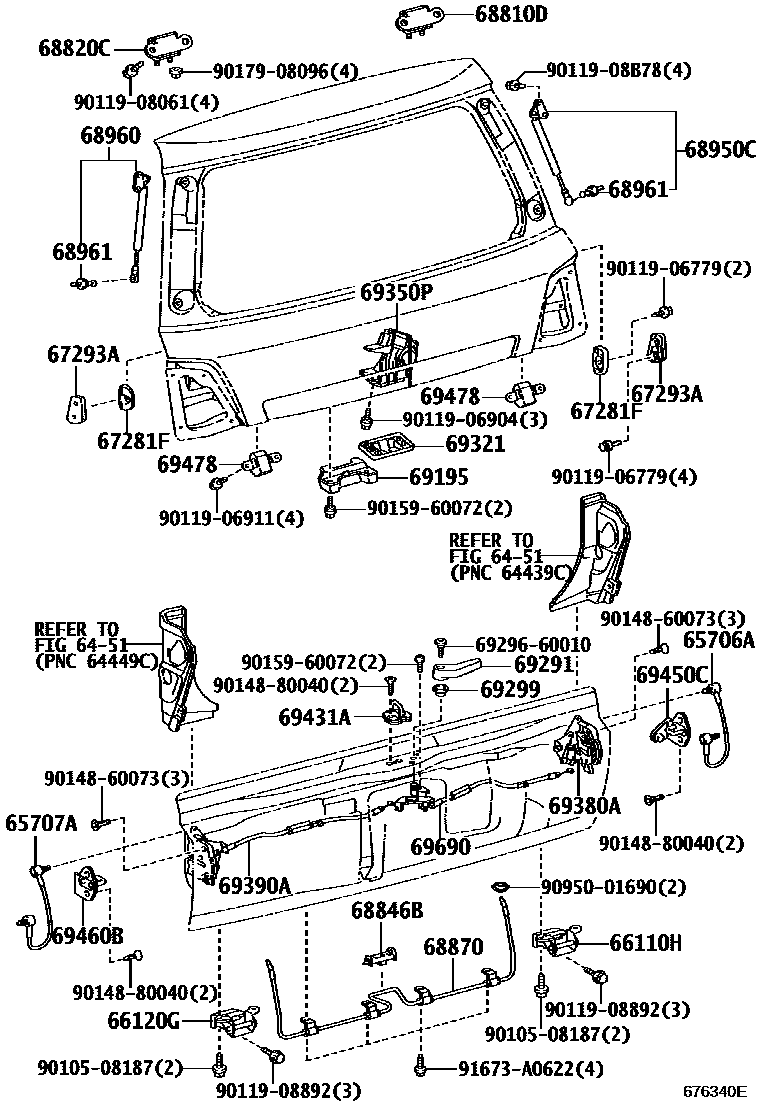

Toyota LAND CRUISER — BACK DOOR LOCK & HINGE

0001 1 0002 1 0003 1POWER BACK DOOR PARTS

6451

65706ASTAY SUB-ASSY, TAIL GATE, RH

main65706-60030iUZJ200,VDJ200200709-201908

sub65706-60032

main65706-60032iVDJ200..08S;URJ202..VXR;URJ202..05S201908-202104

65707ASTAY SUB-ASSY, TAIL GATE, LH

main65706-60030iUZJ200,VDJ200200709-201908

sub65706-60032

main65706-60032iVDJ200..08S;URJ202..VXR;URJ202..05S201908-202104

66110HHINGE ASSY, TAIL GATE, RH

main66110-60030iUZJ200,VDJ200200709-201511

sub66110-60031

main66110-60031iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201512-202104

66120GHINGE ASSY, TAIL GATE, LH

main66110-60030iUZJ200,VDJ200200709-201511

sub66110-60031

main66110-60031iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201512-202104

67281FSTOPPER, BACK DOOR, LOWER

main67281-60040iUZJ200,VDJ200200709-202104

67293ACUSHION, BACK DOOR STOPPER

main67293-60050iUZJ200,VDJ200200709-202104

68810DHINGE ASSY, BACK DOOR, RH

main68810-28040iUZJ200,VDJ200200709-201508

sub68810-28041

main68810-60020iURJ202,VDJ200201508-201511

PAD T=1.0

sub68810-60021

main68810-60021iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR201512-202104

PAD T=1.0

main68810-60030iURJ202,VDJ200201508-201511

PAD T=1.5

sub68810-60031

main68810-60031iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR201512-202104

PAD T=1.5

main68810-60040iURJ202,VDJ200201508-201511

PAD T=2.0

sub68810-60041

main68810-60041iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR201512-202104

PAD T=2.0

68820CHINGE ASSY, BACK DOOR, LH

main68810-28040iURJ202,VDJ200200709-201508

sub68810-28041

main68810-60020iURJ202,VDJ200201508-201511

PAD T=1.0

sub68810-60021

main68810-60021iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR201512-202104

PAD T=1.0

main68810-60030iURJ202,VDJ200201508-201511

PAD T=1.5

sub68810-60031

main68810-60031iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201512-202104

PAD T=1.5

main68810-60040iURJ202,VDJ200201508-201511

PAD T=2.0

sub68810-60041

main68810-60041iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201512-202104

PAD T=2.0

68846BGUIDE, BACK DOOR TORSION BAR

main68846-60010iUZJ200,VDJ200200709-202104

68870BAR ASSY, BACK DOOR LOWER TORSION

main68870-60020iUZJ200,VDJ200200709-201912

sub68870-60021

main68870-60021iVDJ200..08S;URJ202..VXR;URJ202..05S202001-202104

68950CSTAY ASSY, BACK DOOR, RH

main68950-0WD80iURJ202,VDJ200201608-201610

sub68950-0WD81

main68950-0WD81iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201611-202104

main68950-69095iUZJ200,VDJ200200709-200907

main68950-69155iUZJ200,VDJ200200907-201207

sub68950-69205

main68950-69205iURJ202,VDJ200201207-201508

main68950-69245iURJ202,VDJ200201508-201608

68960STAY ASSY, BACK DOOR, LH

main68960-0WD80iURJ202,VDJ200201608-201610

sub68960-0WD81

main68960-0WD81iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201611-202104

main68960-69055iUZJ200,VDJ200200709-200907

main68960-69115iUZJ200,VDJ200200907-201207

sub68960-69155

main68960-69155iURJ202,VDJ200201207-201508

main68960-69195iURJ202,VDJ200201508-201608

68961BOLT, BACK DOOR STAY

main68961-12050iUZJ200,VDJ200200709-202104

69195GRIP, BACK DOOR

main69195-60010iUZJ200,VDJ200200709-200806

sub69195-60011

main69195-60011iUZJ200,VDJ200200807-202104

69291HANDLE ASSY, BACK DOOR INSIDE

main69291-60020iUZJ200,VDJ200200709-200711

sub69291-60030

main69291-60030iUZJ200,VDJ200200712-202104

69299GROMMET, BACK DOOR HANDLE

main69299-60010iUZJ200,VDJ200200709-202104

69321COVER, BACK DOOR LOCK

main69321-60010iUZJ200,VDJ200200709-201508

main69321-60030iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-60140iURJ202,VDJ200200709-201508

sub69350-60141

main69350-60200iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

69380ALOCK ASSY, TAIL GATE, LOWER RH

main69380-60060iUZJ200,VDJ200200709-201511

sub69380-60061

main69380-60061iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201512-202104

69390ALOCK ASSY, TAIL GATE, LOWER LH

main69390-60050iUZJ200,VDJ200200709-201511

sub69390-60051

main69390-60051iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201512-202104

69431ASTRIKER, REAR SWING GATE LOCK

main69431-60010iUZJ200,VDJ200200709-202104

69450CSTRIKER ASSY, BACK DOOR LOCK, RH

main69450-60030iUZJ200,VDJ200200709-200809

main69450-60040iUZJ200,VDJ200200809-202104

69460BSTRIKER ASSY, BACK DOOR LOCK, LH

main69460-60030iUZJ200,VDJ200200709-200809

main69460-60040iUZJ200,VDJ200200809-202104

69478CUSHION, BACK DOOR LOWER STOPPER

main69042-60010iUZJ200,VDJ200200709-200809

main69478-60020iUZJ200,VDJ200200809-202104

69690CONTROL ASSY, BACK DOOR REMOTE

main69690-60050iUZJ200,VDJ200200709-202104

6929660010SCREW, DOOR INSIDE HANDLE

main69296-60010

9010508187

main90105-08187

9011906779

main90119-06779

9011906904

main90119-06904

9011906911

main90119-06911

9011908061

main90119-08061

9011908892

main90119-08892

9011908B78

main90119-08B78

9014860073

main90148-60073

9014880040

main90148-80040

9015960072

main90159-60072

9017908096

main90179-08096

9095001690

main90950-01690

91673A0622

main91673-A0622

40 parts on this diagram · 3 diagrams in section
