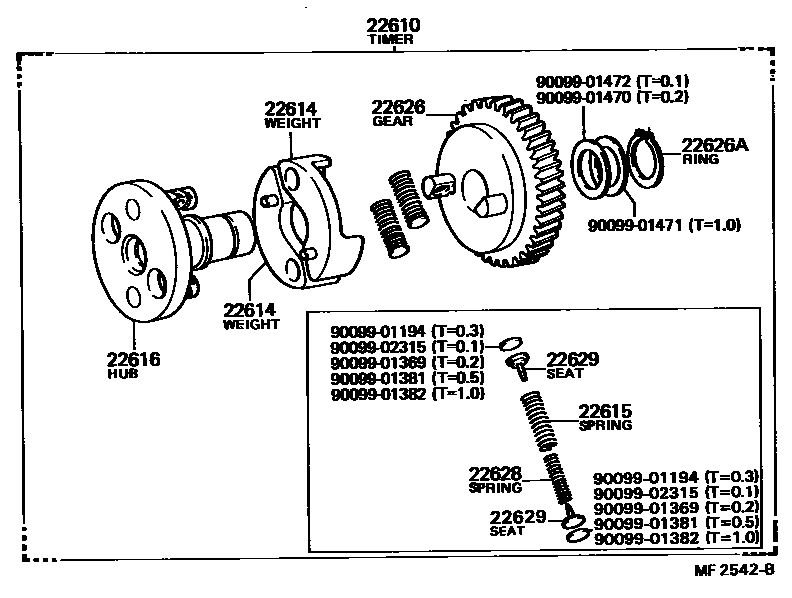

Toyota LAND CRUISER — AUTOMATIC TIMER

0001 1 0002 1

22610TIMER ASSY, AUTOMATIC

main22610-68011i2H..HJ60198708-199001

main22610-68030i12HT..HJ61198708-199001

22614WEIGHT, TIMER

main22614-68010×2i2H..HJ60198708-199001

main22614-68030×2i12HT..HJ61198708-199001

22615SPRING, TIMER

main22615-68012×2i2H..HJ60198708-199001

main22615-68030×2i12HT..HJ61198708-199001

22616HUB, TIMER

main22616-68011i2H..HJ60198708-199001

main22616-68030i12HT..HJ61198708-199001

22626GEAR, DRIVE

main22626-68010i2H..HJ60198708-199001

main22626-68030i12HT..HJ61198708-199001

22626ARING, CLAMP(FOR DRIVE GEAR)

main90096-90001i12HT..HJ61198708-199001

main90096-90021i2H..HJ60198708-199001

22628SPRING, TIMER SUB

main22628-68011×2i2H..HJ60198708-199001

22629SEAT, SPRING(FOR TIMER SPRING)

main22629-68010×4i2H..HJ60198708-199001

9009901194

main90099-01194

9009901369

main90099-01369

9009901381

main90099-01381

9009901382

main90099-01382

9009901470

main90099-01470

9009901471

main90099-01471

9009901472

main90099-01472

9009902315

main90099-02315

16 parts on this diagram · 2 diagrams in section
