Toyota LAND CRUISER — ARMREST & VISOR

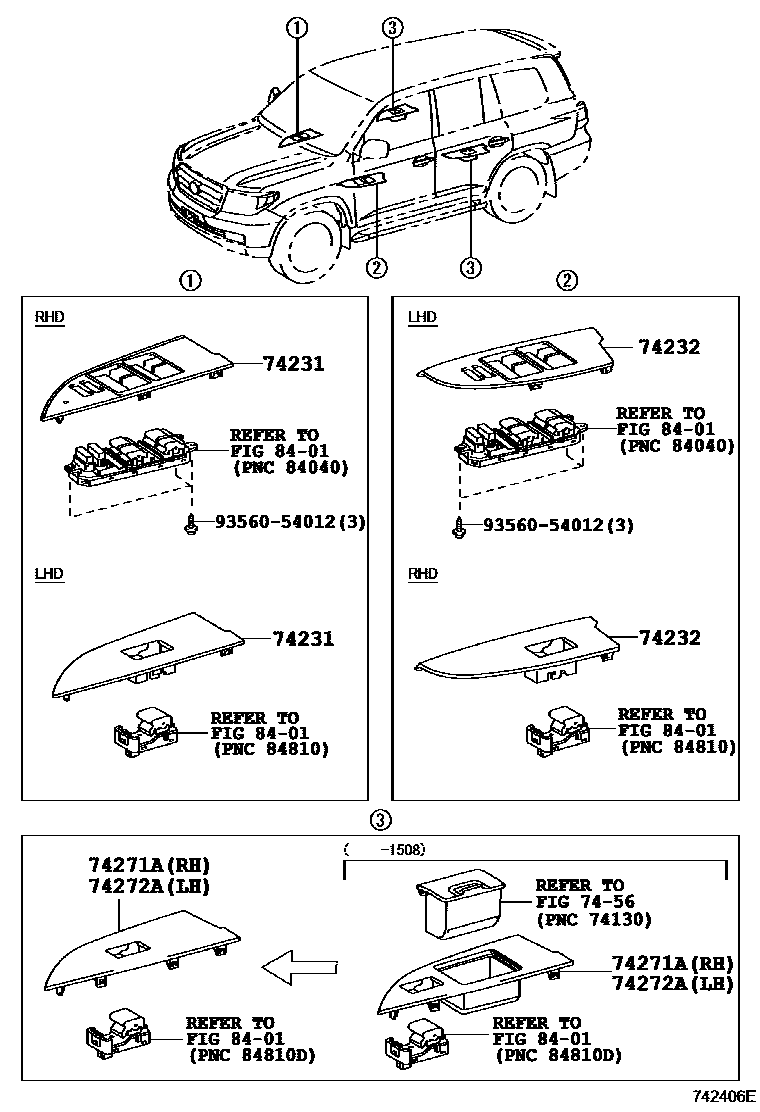

Parts diagram

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-60550i200709-201201

main74231-60570i200709-201201

main74231-60720i201201-201508

main74231-60740i201201-201508

main74231-60820i201508-202103

main74231-60A30i201508-202103

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-60530i200709-201201

main74232-60540i200709-201201

main74232-60690i201201-201508

main74232-60700i201201-201508

main74232-60820i201508-202104

main74232-60A10i201508-202103

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-60190i200709-201201

main74271-60290i201201-201508

main74271-60420i201508-202103

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-60190i200709-201201

main74272-60290i201201-201508

main74272-60420i201508-202103

7456ASH RECEPTACLE

→ Go to FIG 74-56

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9356054012

main93560-54012

7 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota LAND CRUISER

This section contains 35 genuine Toyota parts for the ARMREST & VISOR system of the Toyota LAND CRUISER. Key components include: ROOF HEADLINING & SILENCER PAD, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH, PANEL, REAR DOOR ARMREST BASE, UPPER LH.
