Toyota LAND CRUISER — ACCELERATOR LINK

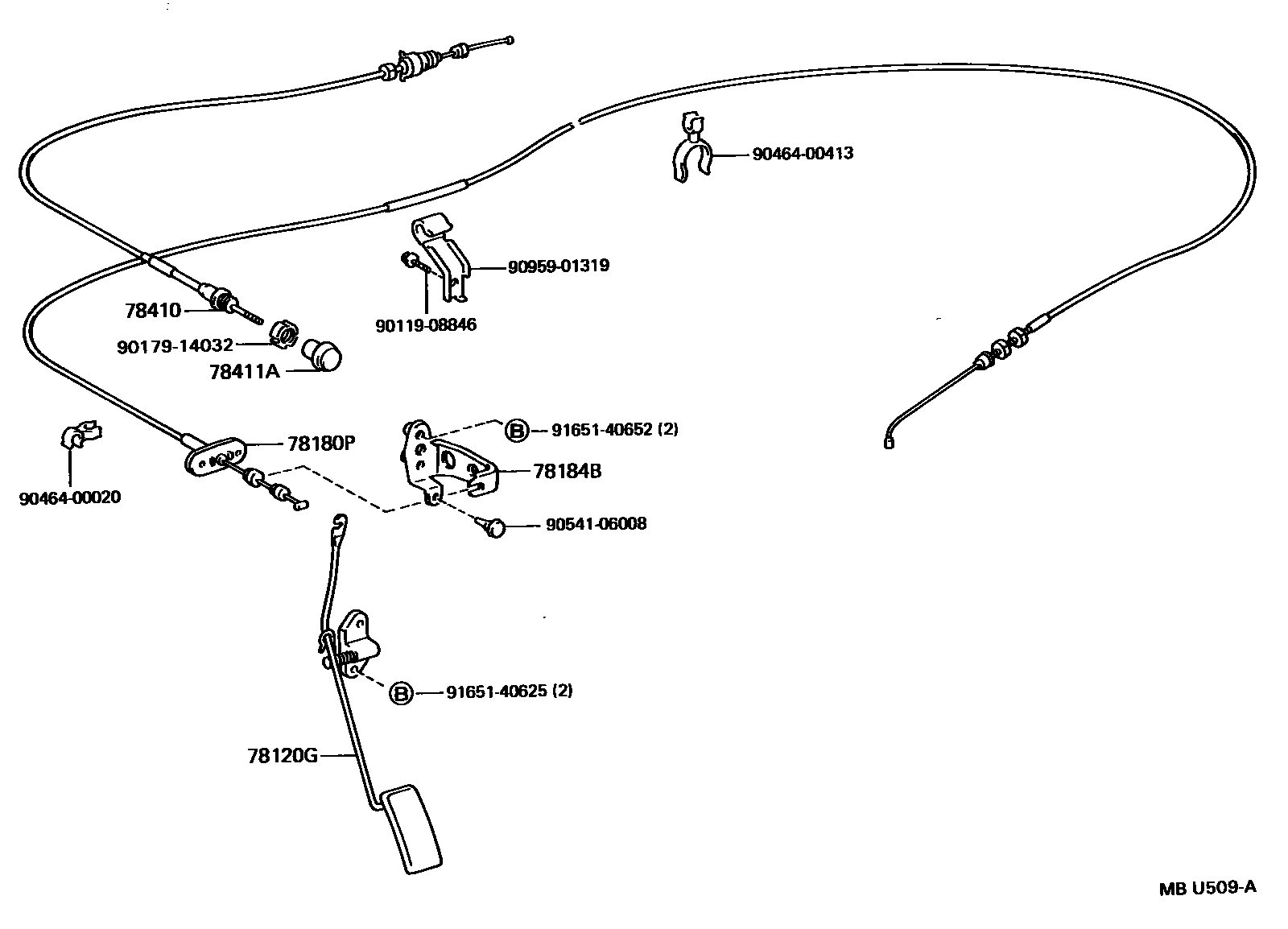

Parts diagram

78120GROD ASSY, ACCELERATOR PEDAL

main78120-60030i199001-199006

main78120-60040i199001-199006

main78120-60070i199006-199801

main78120-60080i199006-199801

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-60080i199001-199208

main78180-60100i199001-199206

main78180-60101i199206-199302

main78180-60103i199302-199407

main78180-60110i199001-199501

main78180-60120i199501-199801

main78180-60210i199001-199206

main78180-60211i199206-199302

main78180-60213i199302-199407

main78180-60220i199001-199801

main78180-60280i199208-199801

main78180-60290i199501-199801

main78180-60370i199501-199801

main78180-60390i199501-199801

W(CRUISE CONTROL)

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-60030i199001-199801

main78184-60040i199001-199801

78410CABLE ASSY, THROTTLE CONTROL

main78410-60080i199501-199801

main78410-60090i199001-199801

main78410-60100i199001-199801

main78410-60110i199001-199801

78411AKNOB, THROTTLE CONTROL CABLE

main78402-60030i199001-199801

9011908846

main90119-08846

9017914032

main90179-14032

9046400020

main90464-00020

9046400413

main90464-00413

9054106008

main90541-06008

9095901319

main90959-01319

9165140625

main91651-40625

9165140652

main91651-40652

13 parts on this diagram · 8 diagrams in section

ACCELERATOR LINK for Toyota LAND CRUISER

This section contains 63 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LAND CRUISER. Key components include: BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, LINK ASSY, ACCELERATOR, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2, COVER, AUTO DRIVE ACCELERATOR LINK.
