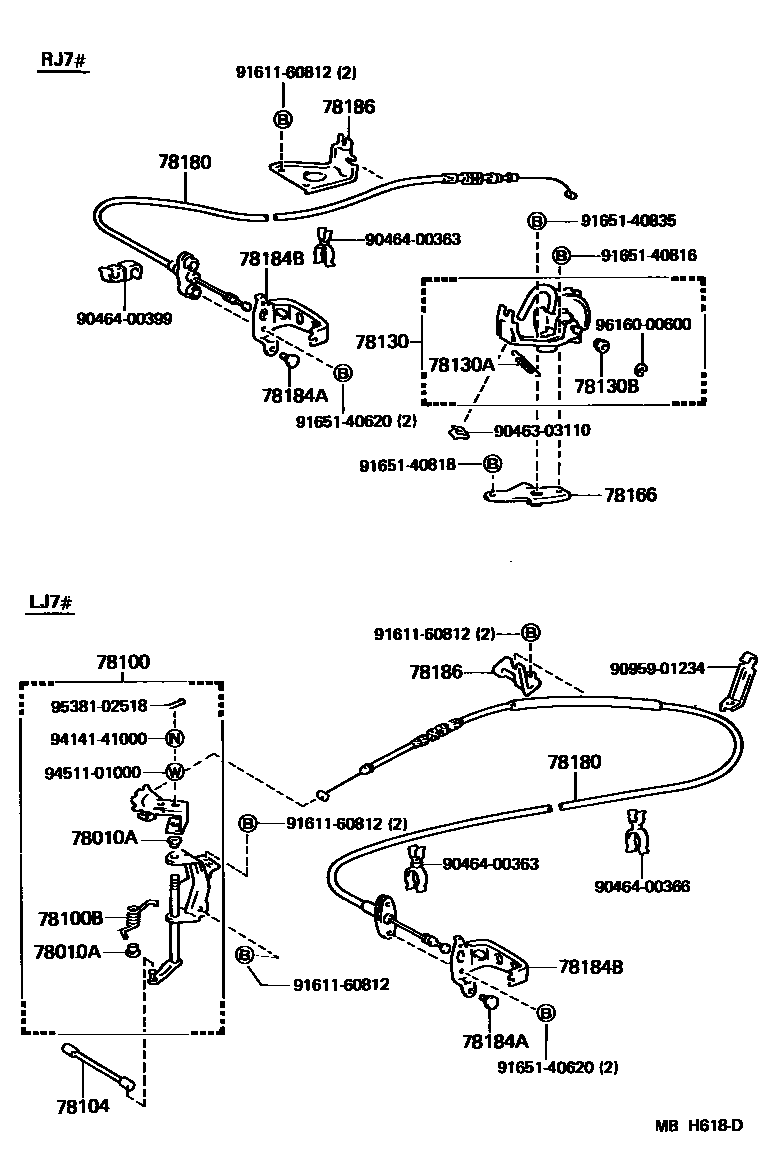

Toyota LAND CRUISER — ACCELERATOR LINK
78010ABUSH (FOR ACCELERATOR LINK)
78100BSPRING (FOR ACCELERATOR LINK)
78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78130BELLCRANK ASSY, ACCELERATOR
78130ASPRING (FOR ACCELERATOR ROD RETURN)
78130BBUSH, ACCELERATOR BELLCRANK
78166BRACKET, ACCEL CONTROL NO.2 BELLCRANK
78180WIRE ASSY, ACCELERATOR
AUSTRIA SPEC
78184ACUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
78184BBRACKET, ACCELERATOR CONTROL CABLE
NO.2
NO.1
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
9046303110
main90463-03110
9046400363
main90464-00363
9046400366
main90464-00366
9046400399
main90464-00399
9095901234
main90959-01234
9161160812
main91611-60812
9165140620
main91651-40620
9165140816
main91651-40816
9165140818
main91651-40818
9165140835
main91651-40835
9414141000
main94141-41000
9451101000
main94511-01000
9538102518
main95381-02518
9616000600
main96160-00600
26 parts on this diagram · 7 diagrams in section
ACCELERATOR LINK for Toyota LAND CRUISER
This section contains 58 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LAND CRUISER. Key components include: BUSH (FOR ACCELERATOR LINK), LINK ASSY, ACCELERATOR, SPRING (FOR ACCELERATOR LINK), ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2.
