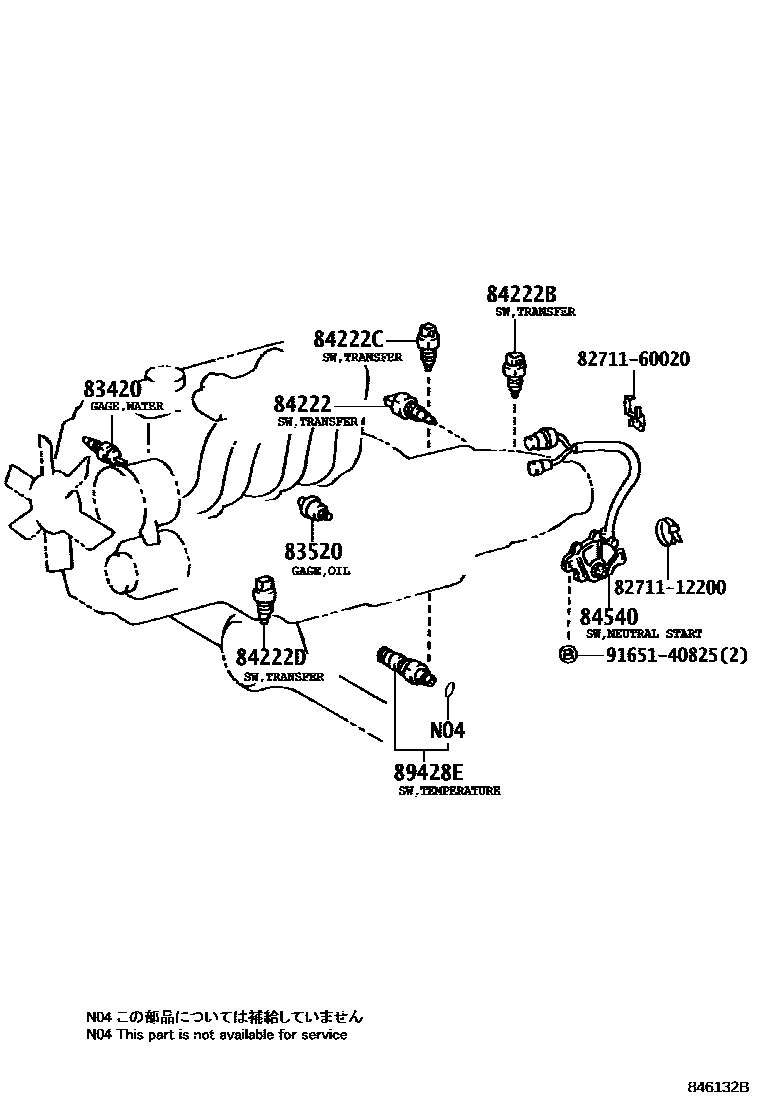

Toyota LAND CRUISER VAN — SWITCH & RELAY & COMPUTER

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040i199506-199801

main83420-20020i199001-199208

main83420-20030i199208-199506

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60010i199001-199112

main83520-60011i199601-199801

main83520-60040i199601-199801

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010i199001-199801

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-60080i199001-199801

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-12010i199001-199801

84222DSWITCH, TRANSFER INDICATOR, NO.4

main84222-12010×2i199001-199801

84540SWITCH ASSY, NEUTRAL START

main84540-60010i199208-199501

main84540-65010i199501-199801

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-36030i199208-199801

89428ESWITCH, TEMPERATURE, NO.2 (FOR TRANSMISSION)

main89428-26030i199001-199501

main89428-60090i199501-199801

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271160020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60020

9165140825

main91651-40825

12 parts on this diagram · 14 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota LAND CRUISER VAN

This section contains 213 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota LAND CRUISER VAN. Key components include: FUEL FILTER, RELAY ASSY, CHARGE LAMP, RELAY ASSY, STARTER, RESISTER, FUEL PUMP, RELAY ASSY, VOLTAGE CONVERTER.
