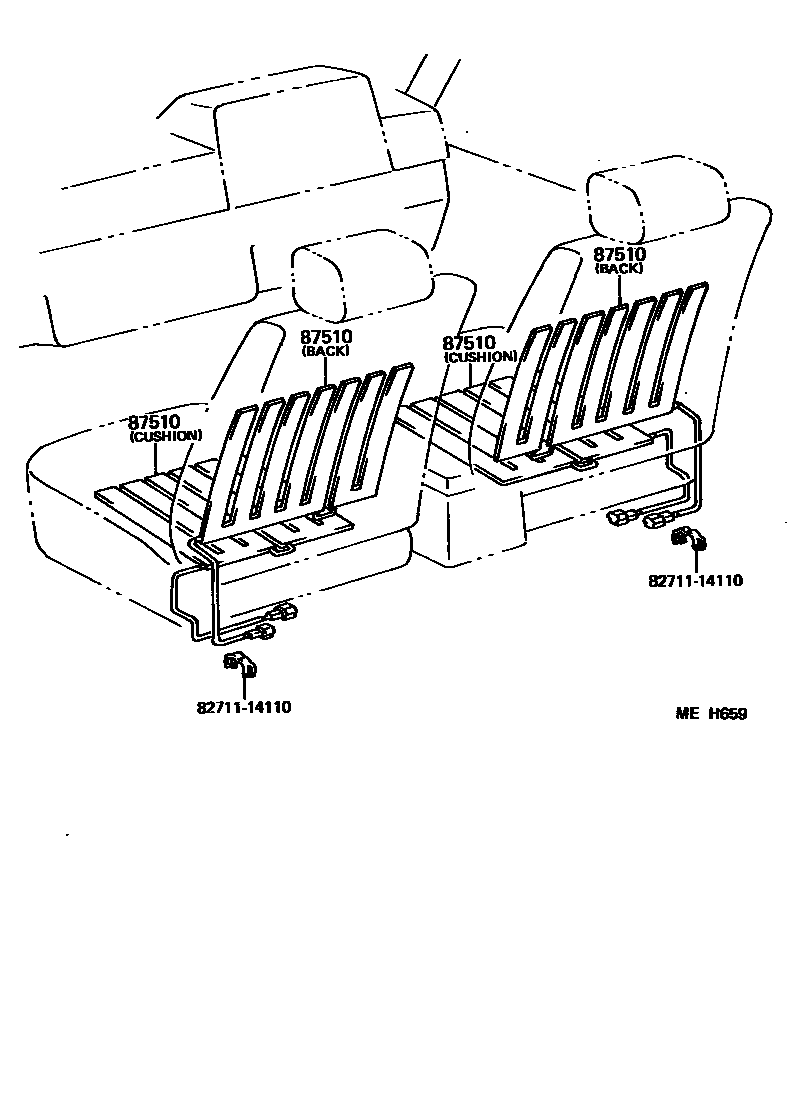

Toyota LAND CRUISER VAN — SEAT MOTOR & SEAT HEATER

87510HEATER ASSY, SEAT

main87510-90A00×2i198210-198307

SEAT CUSHION

main87510-90A01×2i198210-198307

SEAT BACK

main87510-90A02×2i198307-198608

SEAT CUSHION

main87510-90A03×2i198307-198608

SEAT BACK

main87510-90A04i198608-198708

SEAT CUSHION; SEAT CUSHION,FR LH

main87510-90A05i198608-198708

SEAT BACK; SEAT BACK,FR LH

main87510-90A06i198608-198708

SEAT CUSHION,FR RH

main87510-90A07i198608-198708

SEAT BACK,FR RH

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

2 parts on this diagram · 1 diagram in section

SEAT MOTOR & SEAT HEATER for Toyota LAND CRUISER VAN

This section contains 2 genuine Toyota parts for the SEAT MOTOR & SEAT HEATER system of the Toyota LAND CRUISER VAN. Key components include: HEATER ASSY, SEAT, WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER).
