Toyota LAND CRUISER VAN — ROOF PANEL & BACK PANEL

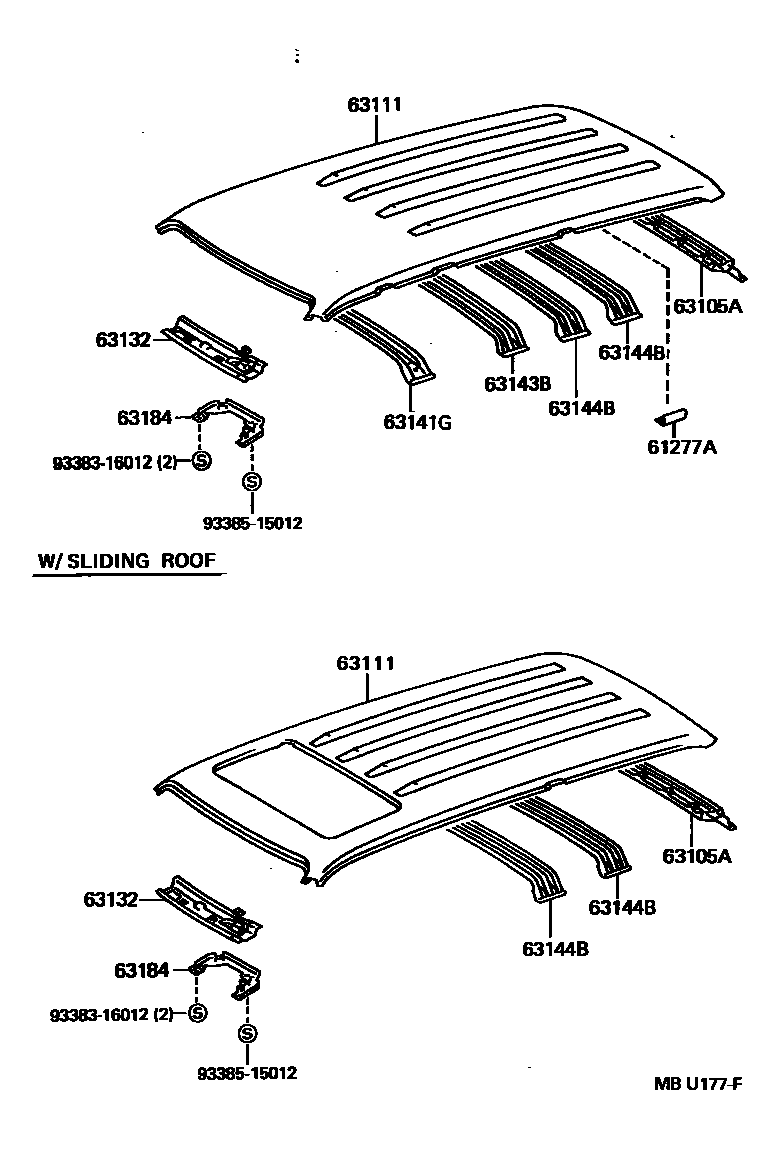

Parts diagram

61277AJOINT, ROOF DRIP CHANNEL

main61277-60010×2i199001-199103

main61277-90K00×2i199103-199305

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60060i199001-199208

main63105-60090i199305-199501

main63105-60100i199001-199501

main63105-60130i199501-199801

63111PANEL, ROOF

main63014-60020i199001-199801

main63014-60040i199404-199407

main63111-60200i199001-199801

63132PANEL, WINDSHIELD HEADER, INNER

main63102-60020i199001-199106

main63102-60021i199106-199501

main63102-60022i199501-199801

main63102-60030i199001-199106

main63102-60031i199305-199501

main63102-60032i199501-199801

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-60010i199001-199801

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-60010i199001-199801

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63106-60030i199001-199108

main63106-60031i199501-199801

main63144-60010i199501-199801

63184BRACKET, ROOF CONSOLE, REAR

main63184-60010i199001-199201

main63184-60020i199001-199801

9338316012

main93383-16012

9338515012

main93385-15012

10 parts on this diagram · 3 diagrams in section

ROOF PANEL & BACK PANEL for Toyota LAND CRUISER VAN

This section contains 70 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota LAND CRUISER VAN. Key components include: JOINT, ROOF DRIP CHANNEL, FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF, PANEL, WINDSHIELD HEADER, INNER, REINFORCEMENT, ROOF PANEL, NO.1.
