Toyota LAND CRUISER VAN — HEATING & AIR CONDITIONING - BLOWER MOTOR

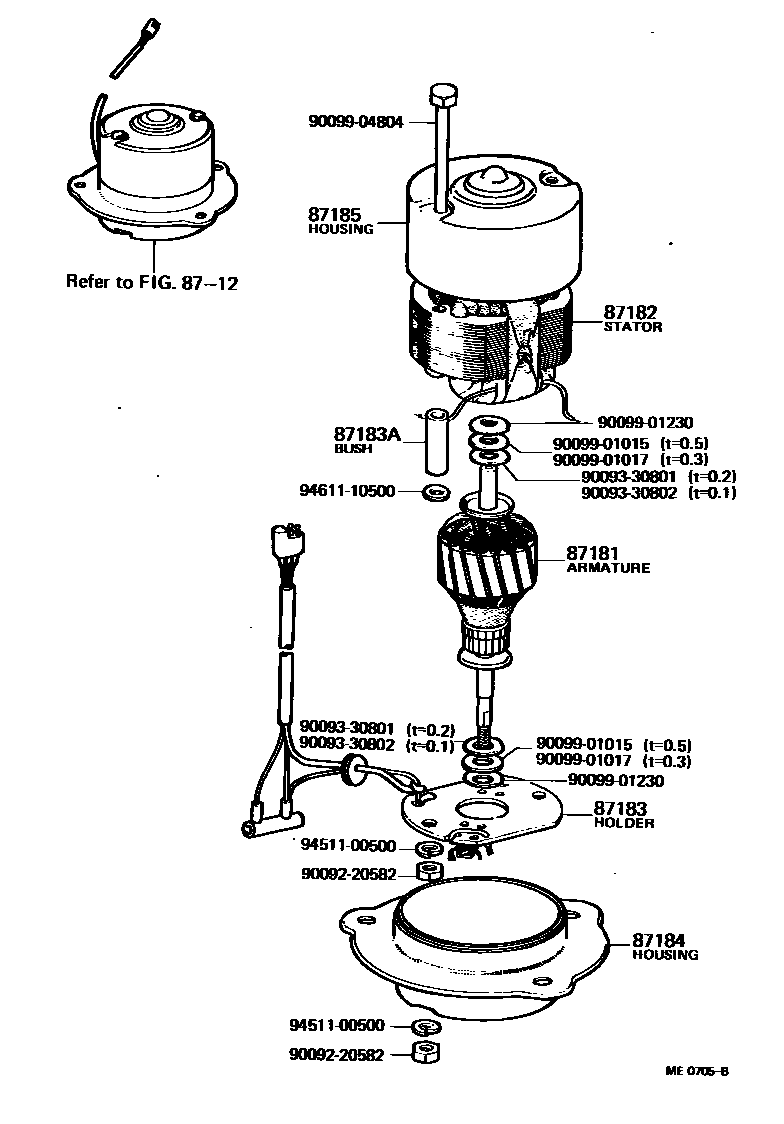

Parts diagram

8712HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

→ Go to FIG 87-12

87181ARMATURE, BLOWER MOTOR

main87181-20056i196903-197304

main87181-60040i196903-197309

FOR REAR

87182STATOR, HEATER BLOWER MOTOR

main87182-60040i196903-197309

FOR REAR

main87182-60091i196903-197304

87183HOLDER, BLOWER MOTOR BRUSH

main87183-10050i196903-197309

FOR REAR

main87183-60091i196903-197304

87183ABUSH, HEATER BLOWER MOTOR BRUSH HOLDER

main90099-04042×2i196903-197309

FOR REAR

main90099-19058×2i196903-197304

87184HOUSING, BLOWER MOTOR, NO.1

main87184-60032i196903-197304

main87184-60040i196903-197309

FOR REAR

87185HOUSING, BLOWER MOTOR, NO.2

main87185-60040i196903-197309

FOR REAR

main88554-12012i196903-197304

9009220582

main90092-20582

9009330801

main90093-30801

9009330802

main90093-30802

9009901015

main90099-01015

9009901017

main90099-01017

9009901230

main90099-01230

9009904804

main90099-04804

9451100500

main94511-00500

9461110500

main94611-10500

16 parts on this diagram · 3 diagrams in section

HEATING & AIR CONDITIONING - BLOWER MOTOR for Toyota LAND CRUISER VAN

This section contains 27 genuine Toyota parts for the HEATING & AIR CONDITIONING - BLOWER MOTOR system of the Toyota LAND CRUISER VAN. Key components include: HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER, RESISTOR, HEATER BLOWER, ARMATURE, BLOWER MOTOR, STATOR, HEATER BLOWER MOTOR, HOLDER, BLOWER MOTOR BRUSH.
