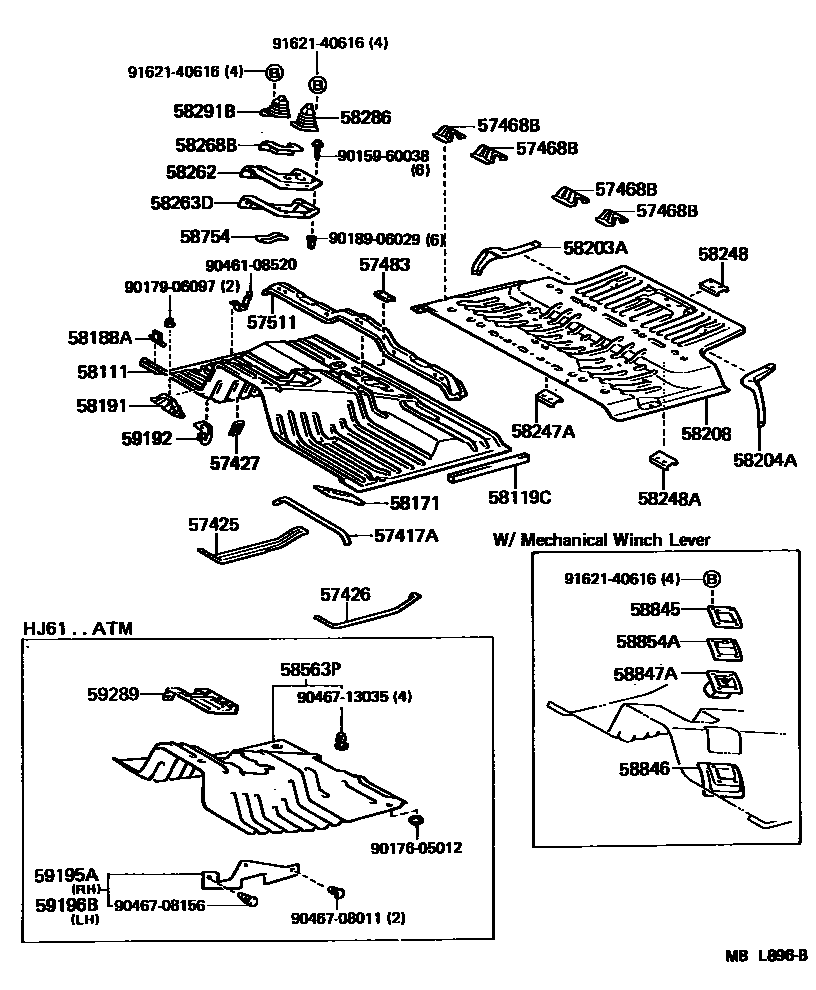

Toyota LAND CRUISER VAN — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
57417AREINFORCEMENT, FRONT FLOOR UNDER
57425REINFORCEMENT, FRONT FLOOR, NO.2 RH
57426REINFORCEMENT, FRONT FLOOR, NO.2 LH
57427REINFORCEMENT, FRONT FLOOR TO BRACE
57468BBRACKET, FRONT SEAT, REAR
57483RETAINER, DIFFERENTIAL LOCK LEVER SUPPORT
57511REINFORCEMENT, FRONT FLOOR, CENTER
58111PAN, FRONT FLOOR
58119CCUSHION, FRONT FLOOR
58171REINFORCEMENT, PARKING BRAKE BASE
58188ABRACKET, ACCELERATOR PEDAL STOPPER
58191FOOTREST, FRONT FLOOR
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58208PAN, CENTER FLOOR
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248REINFORCEMENT, REAR SEAT CUSHION LOCK
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58262COVER, TRANSMISSION
58263DPACKING, TRANSMISSION COVER
58268BSEAL, TRANSFER LEVER BOOT
58286BOOT, SHIFT & SELECT LEVER, NO.1
58291BBOOT, TRANSFER SHIFT LEVER
58563PSILENCER, FRONT FLOOR
58754PLATE, ENGINE SERVICE COVER CATCH
58845RETAINER, WINCH LEVER BOOT
58846COVER, WINCH LEVER
58847ASEAL, WINCH LEVER
58854ABOOT, WINCH LEVER
59192BRACKET, NOISE SHUTTER, NO.2
59195AINSULATOR, NOISE SHUTTER
59196BINSULATOR, NOISE SHUTTER, LH
59289SILENCER, TRANSMISSION COVER
9015960038
main90159-60038
9017605012
main90176-05012
9017906097
main90179-06097
9018906029
main90189-06029
9046108520
main90461-08520
9046708011
main90467-08011
9046708156
main90467-08156
9046713035
main90467-13035
9162140616
main91621-40616
42 parts on this diagram · 3 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota LAND CRUISER VAN
This section contains 61 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota LAND CRUISER VAN. Key components include: BRACKET SUB-ASSY, SIDE STEP, BRACKET SUB-ASSY, SIDE STEP, NO.2, COVER, SIDE DOOR STEP PLATE, REAR LH, COVER, SIDE DOOR STEP PLATE, FRONT RH, COVER, SIDE DOOR STEP PLATE, FRONT LH.
