Toyota LAND CRUISER VAN — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

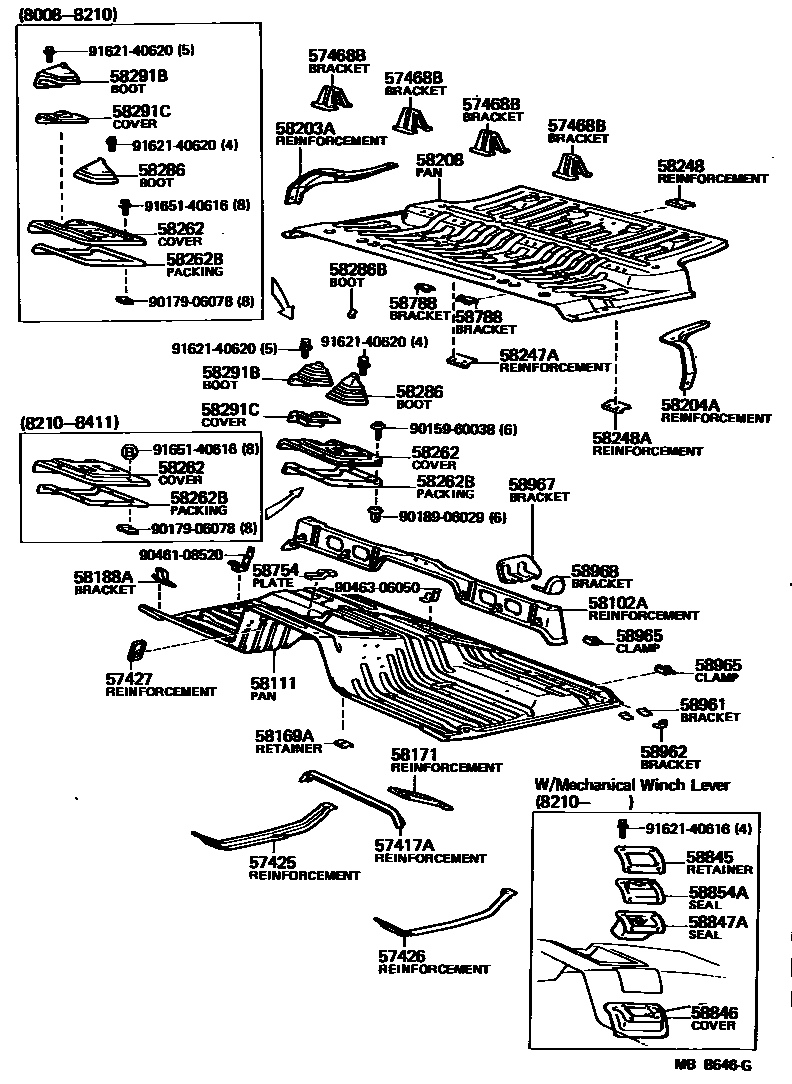

Parts diagram
57417AREINFORCEMENT, FRONT FLOOR UNDER
main57417-90A00i198008-198708
main57505-90A00i198411-198608
main57505-90A02i198608-198708
57425REINFORCEMENT, FRONT FLOOR, NO.2 RH
main57425-90A00i198008-198411
main57425-90A02i198411-198608
main57506-90A00i198608-198708
57426REINFORCEMENT, FRONT FLOOR, NO.2 LH
main57426-90A00i198008-198411
main57426-90A01i198411-198608
main57507-90A00i198608-198708
57427REINFORCEMENT, FRONT FLOOR TO BRACE
main57427-90A00i198008-198708
57468BBRACKET, FRONT SEAT, REAR
main57468-90A00×4i198008-198510
main57468-90A01×2i198510-198708
OUTER
main57468-90A02×2i198510-198708
INNER
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
main58102-90A00i198008-198411
main58102-90A02i198411-198510
58111PAN, FRONT FLOOR
main58111-90A05i198008-198210
W/O HEATER,WINCH
main58111-90A06i198008-198210
W/HEATER,W/O WINCH
main58111-90A07i198008-198210
W/HEATER,WINCH
main58111-90A08i198008-198210
W/O HEATER,W/WINCH
main58111-90A18i198210-198411
W/*SH
main58111-90A19i198210-198411
W/*SH,WINCH
main58111-90A29i198411-198708
main58111-90A30i198411-198708
W/WINCH
main58111-90A33i198411-198708
main58111-90A34i198510-198708
W/WINCH
58169ARETAINER, REAR HEATER MOUNTING
main58169-90A00×2i198008-198510
58171REINFORCEMENT, PARKING BRAKE BASE
main58107-90A00i198008-198708
58188ABRACKET, ACCELERATOR PEDAL STOPPER
main58188-90A00i198008-198411
main58188-90A02i198411-198708
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
main58203-90A00i198008-198708
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
main58204-90A00i198008-198708
58208PAN, CENTER FLOOR
main58211-90A00i198008-198305
main58211-90A02i198305-198510
main58211-90A07i198510-198612
main58211-90A11i198510-198612
main58211-90A13i198608-198612
W/*DL
main58211-90A17i198510-198612
main58211-90A19i198510-198612
W/*DL
main58211-90A21i198612-198708
main58211-90A25i198612-198708
main58211-90A27i198612-198708
main58211-90A31i198612-198708
main58211-90A33i198612-198708
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
main58247-90A00i198008-198708
main58249-90A00×2i198510-198708
W/DIVISION RR SEAT
58248REINFORCEMENT, REAR SEAT CUSHION LOCK
main58248-90A00i198008-198708
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
main58247-90A00i198008-198708
main58249-90A00×2i198510-198708
W/DIVISION RR SEAT
58262COVER, TRANSMISSION
main58261-90A00i198008-198110
main58261-90A01i198110-198210
main58261-90A02i198210-198411
main58261-90A03i198411-198708
main58261-90A04i198411-198708
main58261-90A06i198608-198708
58262BPACKING, TRANSMISSION COVER
main58263-90A00i198008-198210
main58263-90A01i198210-198411
main58263-90A02i198411-198708
58286BOOT, SHIFT & SELECT LEVER, NO.1
main58280-90A00i198008-198210
main58280-90A01i198210-198404
main58280-90A02i198210-198404
main58280-90A03i198411-198604
main58280-90A04i198604-198708
58286BBOOT, SHIFT LEVER, NO.1
main58289-90A00i198110-198210
58291BBOOT, TRANSFER SHIFT LEVER
main58290-90A00i198008-198010
main58290-90A01i198010-198210
main58290-90A02i198210-198411
main58290-90A03i198411-198510
main58290-90A04i198510-198708
58291CCOVER, TRANSFER SHIFT LEVER BOOT
main58268-90A00i198008-198010
main58268-90A01i198010-198210
main58268-90A02i198210-198411
main58268-90A03i198210-198411
main58268-90A04i198411-198604
main58268-90A05i198604-198708
58754PLATE, ENGINE SERVICE COVER CATCH
main58754-90A00i198411-198708
58788BRACKET, JACK HANDLE SUPPORT
main58706-90A00×2i198008-198510
58845RETAINER, WINCH LEVER BOOT
main58845-90A00i198210-198411
main58845-90A01i198411-198708
58846COVER, WINCH LEVER
main58846-90A00i198210-198411
W/WINCH
main58846-90A01i198411-198510
W/WINCH
58847ASEAL, WINCH LEVER
main58847-90A00i198210-198411
main58847-90A01i198411-198708
58854ABOOT, WINCH LEVER
main58854-90A00i198210-198411
main58854-90A01i198411-198708
58961BRACKET, TOOL BAG, SET BAND, NO.1
main74732-90A00×2i198008-198510
58962BRACKET, TOOL BAG, SET BAND, NO.2
main58785-90A00i198008-198510
58965CLAMP, JACK HANDLE
main58706-90A00×2i198008-198510
58967BRACKET, JACK SUPPORT, NO.1
main58967-90A00i198008-198510
58968BRACKET, JACK SUPPORT, NO.2
main58968-90A00i198008-198510
9015960038
main90159-60038
9017906078
main90179-06078
9018906029
main90189-06029
9046108520
main90461-08520
9046306050
main90463-06050
9162140616
main91621-40616
9162140620
main91621-40620
9165140616
main91651-40616

41 parts on this diagram · 4 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota LAND CRUISER VAN

This section contains 73 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota LAND CRUISER VAN. Key components include: BRACKET SUB-ASSY, SIDE STEP, NO.2, BRACKET SUB-ASSY, SIDE STEP, COVER, SIDE DOOR STEP PLATE, REAR LH, COVER, SIDE DOOR STEP PLATE, FRONT RH, COVER, SIDE DOOR STEP PLATE, FRONT LH.
