Toyota LAND CRUISER VAN — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

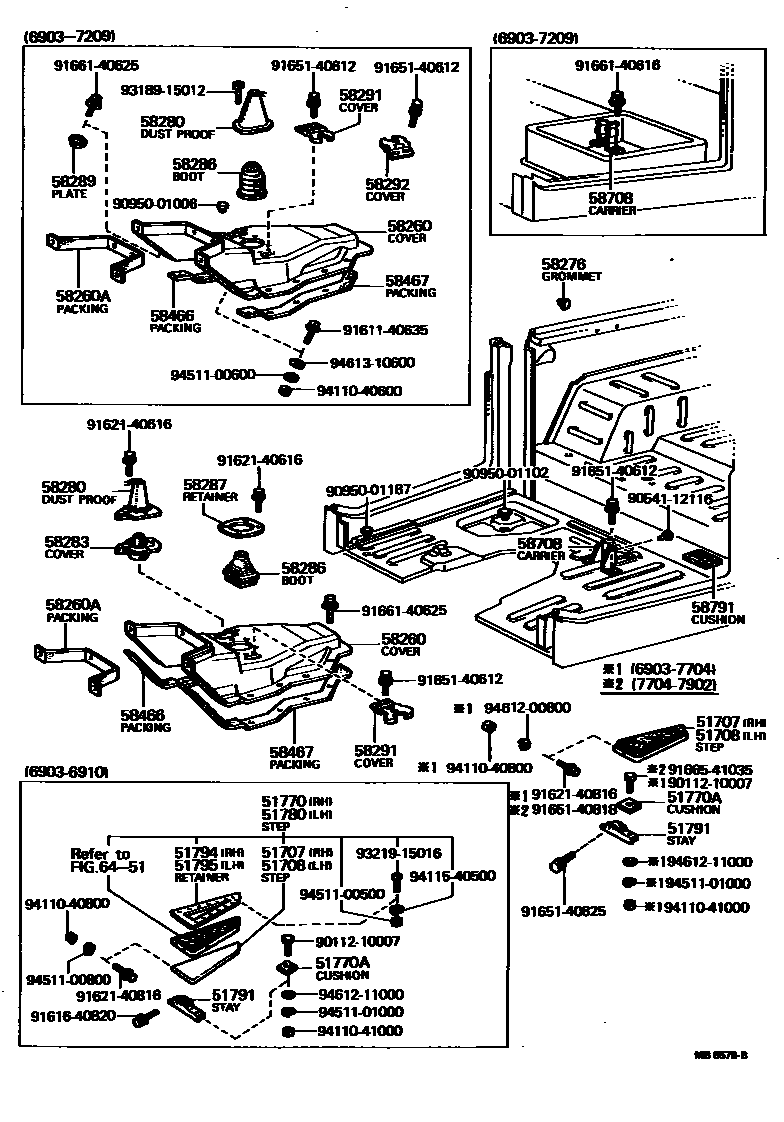

Parts diagram
51707STEP SUB-ASSY, RH
main51706-90351×2i197209-197608
main51707-60012i196910-197012
main51707-90301i197012-197902
main51707-90303i197902-198007
main51780-60011i196903-196910
51708STEP SUB-ASSY, LH
main51707-90351×2i197209-197608
main51708-60012i196910-197012
main51708-90301i197012-197902
main51708-90303i197902-198007
main51790-60011i196903-196910
51770STEP ASSY, FRONT, RH
main51707-69015i196903-196910
51770ACUSHION(FOR STEP)
main52213-90310×2i196903-197203
main52232-90300×2i197902-198007
51780STEP ASSY, FRONT, LH
main51707-69015i196903-196910
51791STAY, STEP
main51701-90300×2i197902-198007
main51791-60010×2i196903-197902
51794RETAINER, FRONT STEP MAT, RH
main51793-60011i196903-196910
51795RETAINER,FRONT STEP MAT, LH
main51794-60011i196903-196910
58260COVER ASSY, TRANSMISSION, FRONT
main58102-90355i196903-197103
4-SPEED
main58102-90356i196907-197103
4-SPEED W/WINCH
main58102-90357i197209-197309
4-SPEED
main58102-90358i197209-197309
4-SPEED,W/WINCH
main58102-90361i197103-197209
4-SPEED
main58102-90362i197103-197209
4-SPEED,W/WINCH
main58111-90351i196903-197103
COLUMN SHIFT
main58111-90352i196903-197103
COLUMN SHIFT,W/WINCH
main58111-90353i196903-197103
FLOOR SHIFT
main58111-90354i196903-197103
FLOOR SHIFT,W/WINCH
main58111-90357i197103-197209
COLUMN SHIFT
main58111-90358i197103-197209
COLUMN SHIFT,W/WINCH
main58111-90359i197103-197209
3-SPEED,FLOOR SHIFT
main58111-90360i197103-197209
3-SPEED,FL.,FR.,P.T.0.
main58111-90367i197209-197309
3-SPEED
main58111-90368i197209-197309
3-SPEED,FL.,W/WINCH
main58111-90369i197309-197501
3-SPEED
main58111-90370i197309-197501
3-SPEED,W/WINCH
main58111-90371i197309-198007
4-SPEED
main58111-90372i197309-198007
4-SPEED,W/WINCH
main58206-60071i196903-197209
COLUMN SHIFT
main58206-60081i196903-197209
COLUMN SHIFT,FR.& RR. P.T.O.
main58206-60091i196903-197209
COLUMN SHIFT,FR. P.T.O.
main58206-60102i196903-197209
FLOOR SHIFT,FR.& RR. P.T.O.
main58206-60112i196903-197209
FLOOR SHIFT,FR. P.T.O.
main58206-60122i196903-197209
FLOOR SHIFT
main58206-90305i197209-197306
4-SPEED
main58206-90307i197209-197306
4-SPEED,W/WINCH
main58262-90084i197902-198007
main58262-90320i197209-197309
3-SPEED
main58262-90322i197209-197309
3-SPEED,W/WINCH
main58262-90331i197306-197309
4-SPEED
main58262-90333i197306-197309
4-SPEED,W/WINCH
main58262-90337i197309-197501
3-SPEED
main58262-90339i197309-197501
3-SPEED,W/WINCH
main58262-90341i197309-197902
4-SPEED
main58262-90343i197309-197902
4-SPEED,W/WINCH
58260APACKING, FRONT TRANSMISSION SERVICE HOLE COVER
main58152-90351i196903-198007
RH.
main58153-90351i196903-198007
LH.
main58263-60010i196903-197902
main58263-90300i197902-198007
58276GROMMET, SAFETY BAND ANCHORAGE NUT
main58276-90300×10i197303-198007
OD=12,L=19
main90950-01126×8i196903-197902
OD=12,L=25
58280DUST PROOF ASSY, TRANSFER CONTROL LEVER
main58280-60020i196903-197209
main58280-90303i197209-197309
main58280-90304i197309-197902
main58280-90305i197902-198007
main58280-90353i196903-196907
main58290-90353i196907-197109
main58290-90354i197109-197209
main58290-90355i197209-197309
main58290-90356i197309-198007
58283COVER, FRONT DRIVE DUST
main58281-90352i197309-197902
main58288-90300i197902-198007
58286BOOT, SHIFT & SELECT LEVER, NO.1
main58273-60010i196903-197309
main58273-90300i197306-198007
4-SPEED
main58273-90301i197309-197501
3-SPEED
58287RETAINER, SHIFT LEVER BOOT
main58274-90300i197306-198007
4-SPEED
main58274-90301i197309-197501
3-SPEED
58289PLATE, TRANSMISSION SET
main58279-60010×16i196903-197209
58291COVER, POWER TAKE-OFF CONTROL LEVER, NO.1
main58208-60011i196903-197209
main58208-90300i197209-197902
58292COVER, POWER TAKE-OFF CONTROL LEVER, NO.2
main58209-60010i196903-197209
58466PACKING, TRANSMISSION SERVICE HOLE COVER, NO.2
main58151-90351i196903-197309
main58151-90352i197309-198007
main58264-60010i196903-197209
main58264-90301i197209-197902
58467PACKING, FRONT TRANSMISSION COVER, NO.3
main58154-90351i196903-198007
main58265-60020i196903-197209
main58265-90300i197209-197902
58708CARRIER SUB-ASSY, JACK
main58031-60010i196903-197209
main58803-90300i197209-197309
main58830-90110i196903-196908
main58830-90351i196908-197309
58791CUSHION, JACK CLAMP
main58218-90351i196903-197003
main75242-90202i197003-197309
main75242-90300i197209-197309
6451INSIDE TRIM BOARD
→ Go to FIG 64-51
9011210007
main90112-10007
9054112116
main90541-12116
9095001006
main90950-01006
9095001102
main90950-01102
9095001187
main90950-01187
9161140635
main91611-40635
9161640820
main91616-40820
9162140616
main91621-40616
9162140816
main91621-40816
9165140612
main91651-40612
9165140818
main91651-40818
9165140825
main91651-40825
9166140616
main91661-40616
9166140625
main91661-40625
9166541035
main91665-41035
9318915012
main93189-15012
9321915016
main93219-15016
9411040600
main94110-40600
9411040800
main94110-40800
9411041000
main94110-41000
9411540500
main94115-40500
9451100500
main94511-00500
9451100600
main94511-00600
9451100800
main94511-00800
9451101000
main94511-01000
9461200800
main94612-00800
9461211000
main94612-11000
9461310600
main94613-10600

51 parts on this diagram · 3 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota LAND CRUISER VAN

This section contains 74 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota LAND CRUISER VAN. Key components include: POWER TAKE-OFF LEVER & LINK, STEP SUB-ASSY, RH, STEP SUB-ASSY, LH, STEP ASSY, FRONT, RH, CUSHION(FOR STEP).
