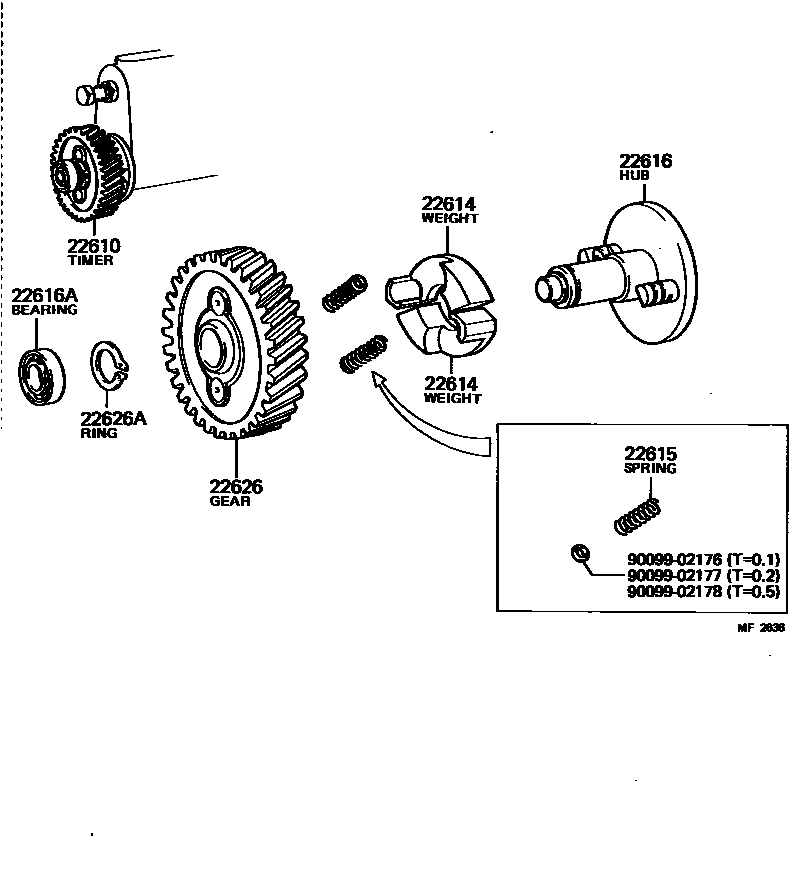

Toyota LAND CRUISER VAN — AUTOMATIC TIMER

0001 1 0002 1 0003 1

22610TIMER ASSY, AUTOMATIC

main22610-56040i3B..BJ60198008-198210

main22610-68020i2H..HJ60198210-198708

main22610-68030i12HT..HJ61198510-198708

22614WEIGHT, TIMER

main22614-56020×2i3B..BJ60198008-198210

main22614-68010×2i2H..HJ60198210-198708

main22614-68030×2i12HT..HJ61198510-198708

22615SPRING, TIMER

main22615-56040×2i3B..BJ60198008-198210

main22615-68020×2i2H..HJ60198210-198708

main22615-68030×2i12HT..HJ61198510-198708

22616HUB, TIMER

main22616-56030i3B..BJ60198008-198210

main22616-68020i2H..HJ60198210-198708

main22616-68030i12HT..HJ61198510-198708

22616ABEARING(FOR TIMER HUB)

main90090-10018i3B..BJ60198008-198210

22626GEAR, DRIVE

main22626-56030i3B..BJ60198008-198210

main22626-68010i2H..HJ60198210-198708

main22626-68030i12HT..HJ61198510-198708

22626ARING, CLAMP(FOR DRIVE GEAR)

main90096-90001i3B..BJ60198008-198210

main90096-90021i2H..HJ60198210-198708

9009902176

main90099-02176

9009902177

main90099-02177

9009902178

main90099-02178

10 parts on this diagram · 3 diagrams in section
