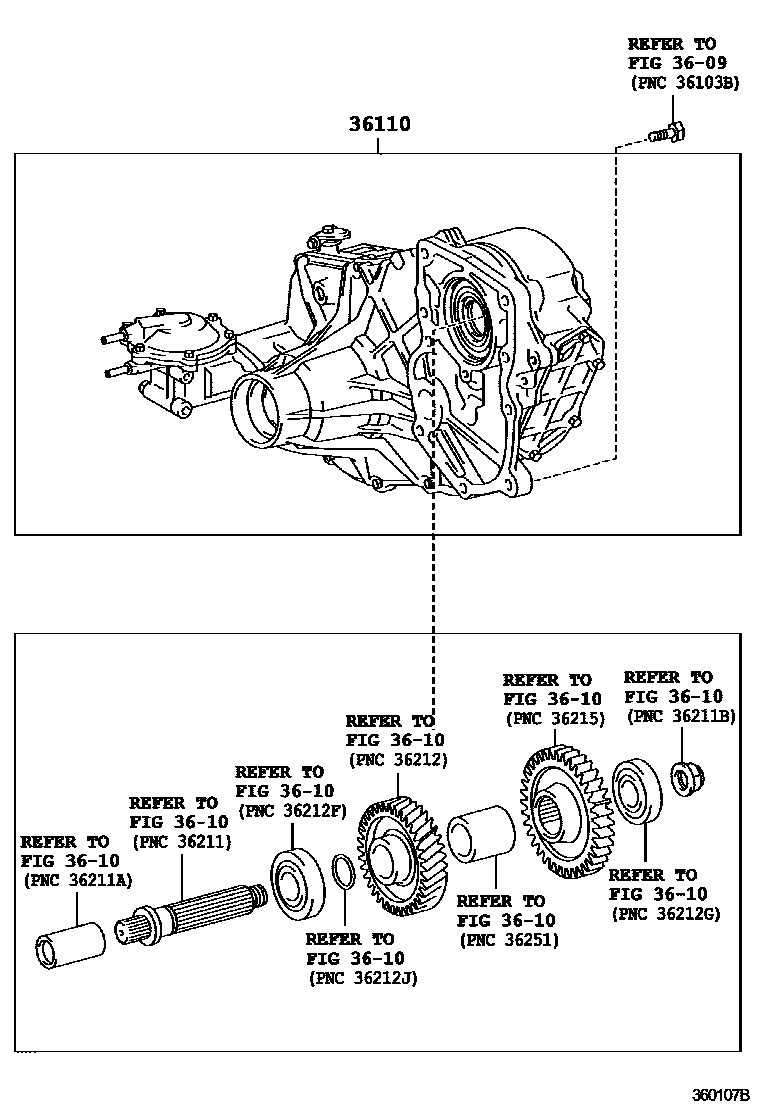

Toyota LAND CRUISER S/T,H/T — TRANSFER ASSEMBLY & GASKET KIT

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

3610TRANSFER GEAR

→ Go to FIG 36-10

36110TRANSFER ASSY

main36110-6C090i199006-199305

main36110-6C130i199305-199908

main36110-6C240i199305-199401

main36110-6C250i199305-199604

main36110-6C270i199305-199401

main36110-6C290i199305-199604

main36110-6E210i199908-200408

main36110-6E220i199911-200408

3 parts on this diagram · 4 diagrams in section

TRANSFER ASSEMBLY & GASKET KIT for Toyota LAND CRUISER S/T,H/T

This section contains 3 genuine Toyota parts for the TRANSFER ASSEMBLY & GASKET KIT system of the Toyota LAND CRUISER S/T,H/T. Key components include: TRANSFER CASE & EXTENSION HOUSING, TRANSFER GEAR, TRANSFER ASSY.
