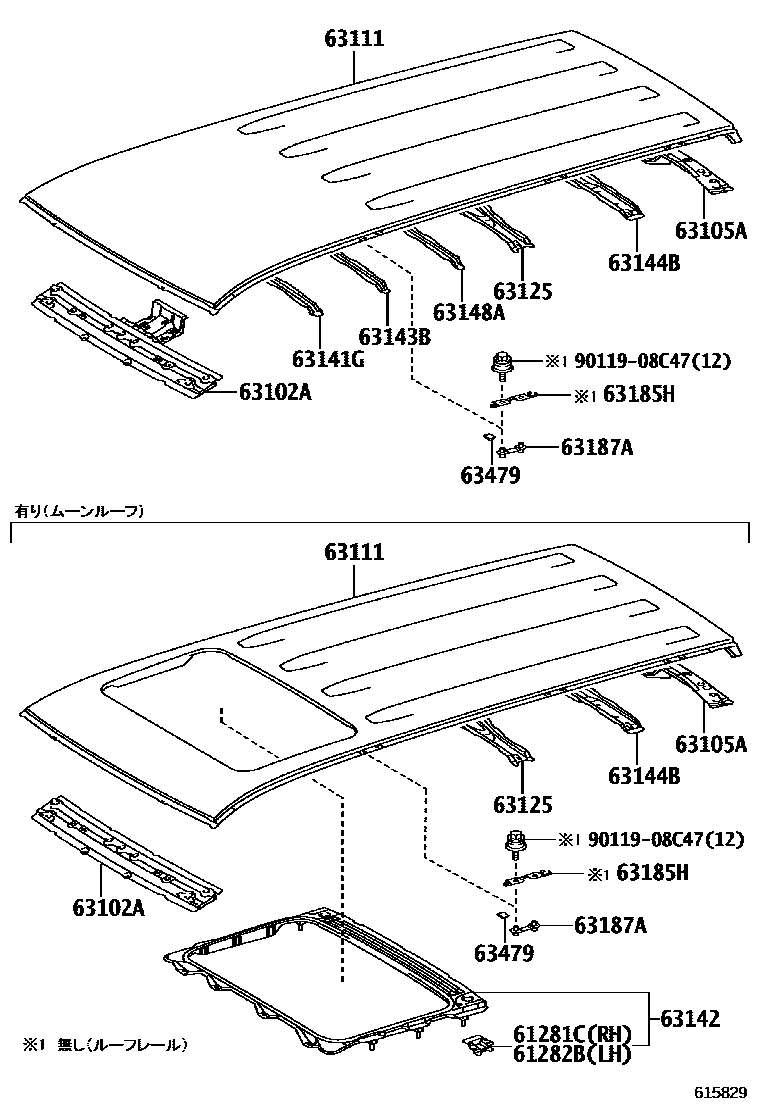

Toyota LAND CRUISER PRADO — ROOF PANEL & BACK PANEL

61281CBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-60050i201708-202312

61282BBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1 LH

main61282-60010i201708-202312

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60141supersedes 63102-60131i201708-202312

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60300i201708-202312

63111PANEL, ROOF

main63111-60630supersedes 63111-60620i201708-202312

main63111-60830supersedes 63111-60620i201708-202312

main63111-60840supersedes 63111-60620i201708-202312

63125REINFORCEMENT, ROOF PANEL, NO.2

main63125-60070i201708-202312

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-60110i201708-202312

63142REINFORCEMENT, ROOF PANEL, NO.2

main63104-60070i201708-202312

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-60070i201708-202312

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-60070i201708-202312

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-60010i201708-202312

63185HBRACKET, ROOF RACK

main63185-42020×6i201708-202312

63187ABRACKET, ROOF RACK, REAR

main63187-35020×6i201708-202312

63479RETAINER, ROOF INNER RACK

main63479-60020×6i201708-202312

9011908C47

main90119-08C47

15 parts on this diagram · 4 diagrams in section

ROOF PANEL & BACK PANEL for Toyota LAND CRUISER PRADO

This section contains 58 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota LAND CRUISER PRADO. Key components include: BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1, BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1 LH, PANEL SUB-ASSY, WINDSHIELD HEADER, FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF.
