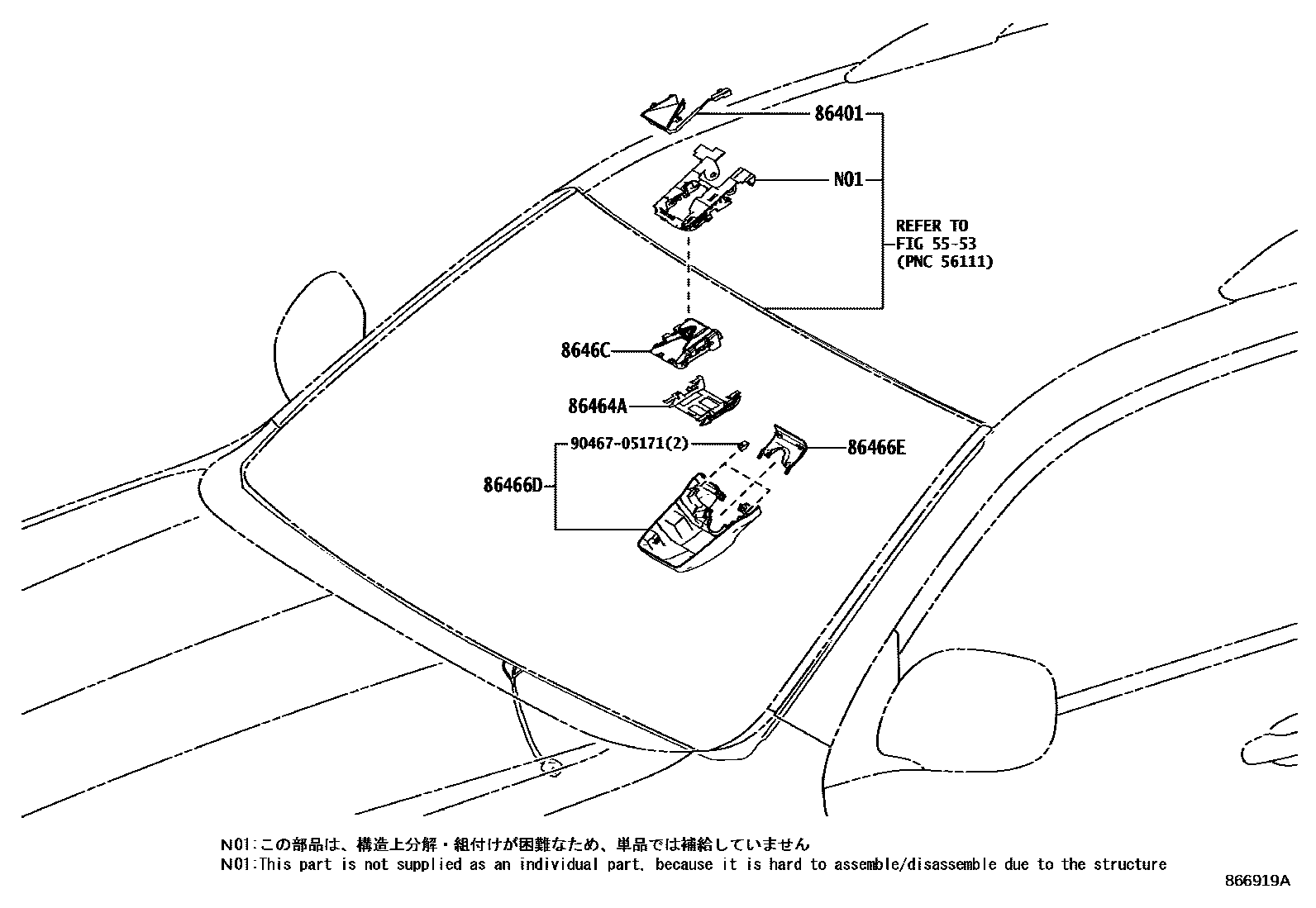

Toyota LAND CRUISER PRADO — PRE-COLLISION SYSTEM

5553COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-53

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-60020i201708-202008

main86401-60050i202008-202312

86464ALATCH, FORWARD RECOGNITION

main86464-26010i202008-202312

main86464-48011i201708-202008

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-60050i201708-202312

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-60060i201708-202312

8646CCAMERA, FORWARD RECOGNITION

main8646C-60040i201708-202008

main8646C-60080i202008-202106

main8646C-60081i202106-202312

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section

PRE-COLLISION SYSTEM for Toyota LAND CRUISER PRADO

This section contains 7 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota LAND CRUISER PRADO. Key components include: COWL PANEL & WINDSHIELD GLASS, HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER, LATCH, FORWARD RECOGNITION, COVER, FORWARD RECOGNITION, NO.1, COVER, FORWARD RECOGNITION, NO.2.
