Toyota LAND CRUISER PRADO — METER

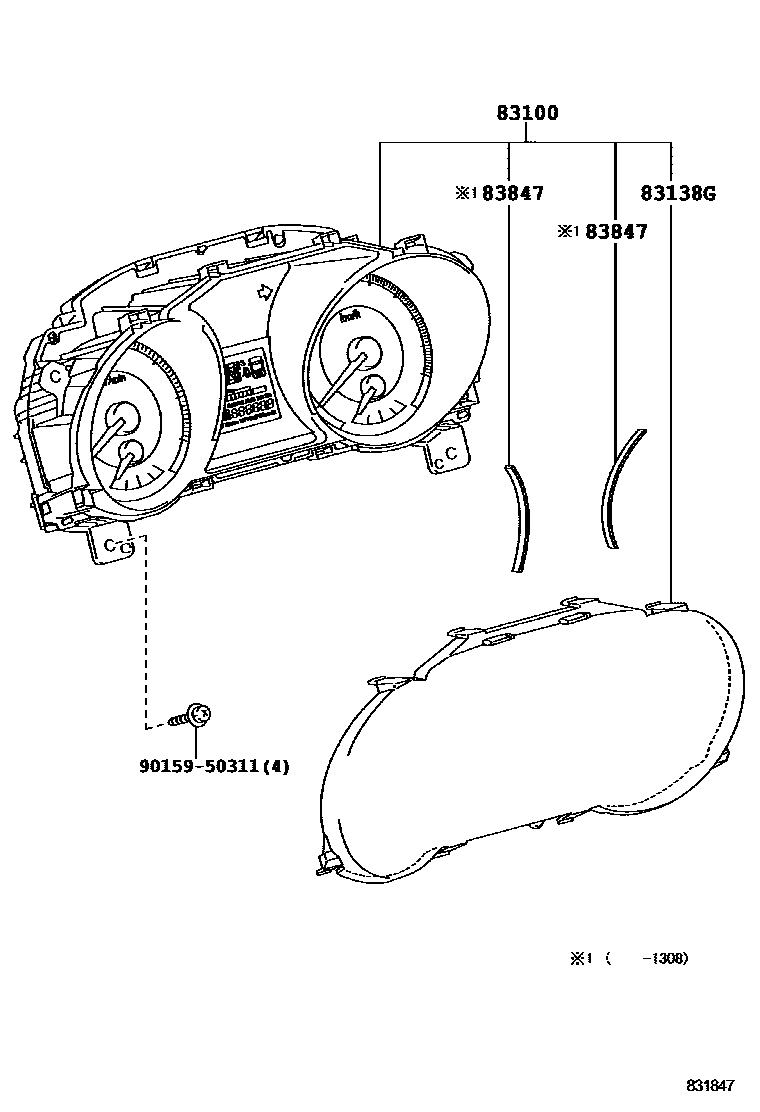

Parts diagram

83100METER ASSY, COMBINATION

main83800-60R90i200908-201009

main83800-60R91i201010-201110

main83800-60R92i201110-201308

main83800-60S00i200908-201009

main83800-60S01i201010-201110

main83800-60S02i201110-201308

main83800-6AQ70i201308-201310

main83800-6AQ71i201311-201506

main83800-6AQ80i201308-201310

main83800-6AQ81i201311-201506

main83800-6BC20i201506

main83800-6BC30i201506

83138GGLASS, COMBINATION METER

main83852-60P80i200908-201308

main83852-6AN10i201308-201506

83847CUSHION, COMBINATION SPEEDOMETER, NO.1

main83847-60P80×2i200908-201308

9015950311

main90159-50311

4 parts on this diagram · 1 diagram in section

METER for Toyota LAND CRUISER PRADO

This section contains 4 genuine Toyota parts for the METER system of the Toyota LAND CRUISER PRADO. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER, CUSHION, COMBINATION SPEEDOMETER, NO.1.
