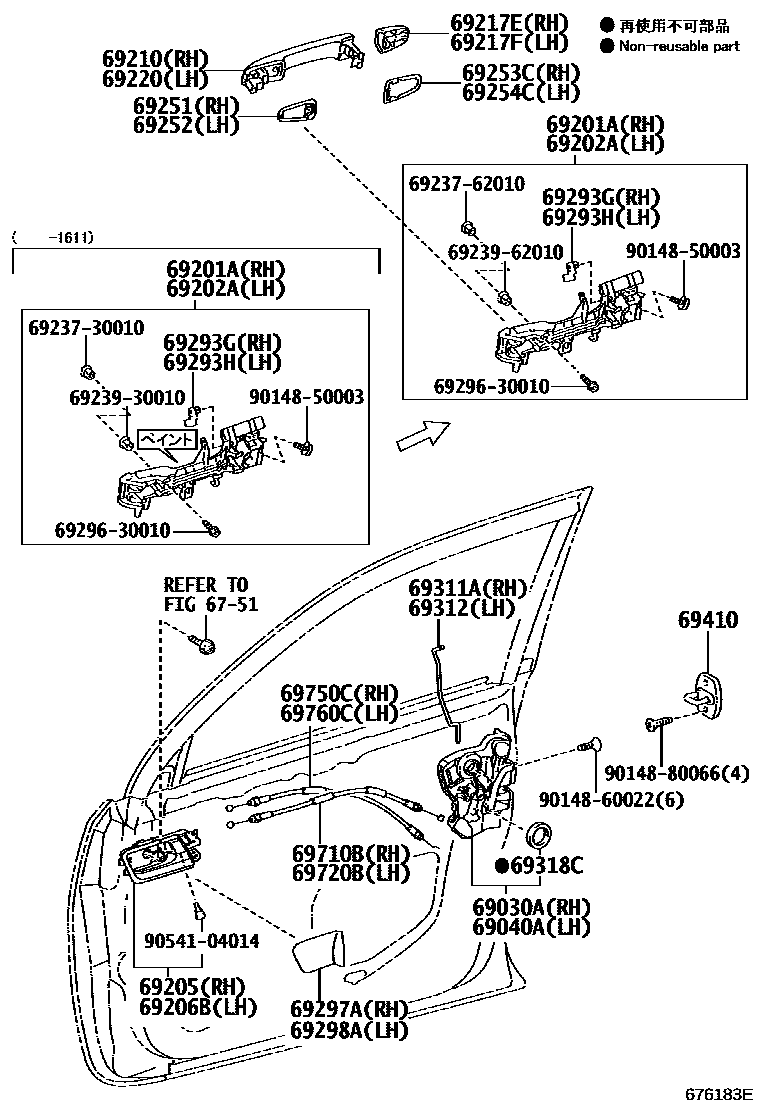

Toyota LAND CRUISER PRADO — FRONT DOOR LOCK & HANDLE
6751FRONT DOOR PANEL & GLASS
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM1#
DK. BROWN,TRIM0#
ORCHID BROWN,TRIM0#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM1#
DK. BROWN,TRIM0#
ORCHID BROWN,TRIM0#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH RED MC.,3R0
RED M.M.,3R3
BEIGE ME.,4T8
BRONZE M.M.,4T3
VINTAGE BROWN PEARL CS.,4X4
GREEN M.M.,6V2
DK.GREEN MC.,6V4
GRAYISH BLUE ME.,8R3
DK.BLUE MC.,8S6
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH RED MC.,3R0
RED M.M.,3R3
BEIGE ME.,4T8
BRONZE M.M.,4T3
VINTAGE BROWN PEARL CS.,4X4
GREEN M.M.,6V2
DK.GREEN MC.,6V4
GRAYISH BLUE ME.,8R3
DK.BLUE MC.,8S6
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH RED MC.,3R0
RED M.M.,3R3
BEIGE ME.,4T8
BRONZE M.M.,4T3
VINTAGE BROWN PEARL CS.,4X4
GREEN M.M.,6V2
DK.GREEN MC.,6V4
GRAYISH BLUE ME.,8R3
DK.BLUE MC.,8S6
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH RED MC.,3R0
RED M.M.,3R3
BEIGE ME.,4T8
BRONZE M.M.,4T3
VINTAGE BROWN PEARL CS.,4X4
GREEN M.M.,6V2
DK.GREEN MC.,6V4
GRAYISH BLUE ME.,8R3
DK.BLUE MC.,8S6
69251PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH
69252PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH
69253CPAD, FRONT DOOR OUTSIDE HANDLE, REAR RH
69254CPAD, FRONT DOOR OUTSIDE HANDLE, REAR LH
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69297ABEZEL, DOOR INSIDE HANDLE, NO.2 RH
BLACK,TRIM1#
DK. BROWN,TRIM0#
ORCHID BROWN,TRIM0#
69298ABEZEL, DOOR INSIDE HANDLE, NO.2 LH
BLACK,TRIM1#
DK. BROWN,TRIM0#
ORCHID BROWN,TRIM0#
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923762010RETAINER, DOOR OUTSIDE HANDLE
main69237-62010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6923962010PIN, BACK DOOR OUTSIDE HANDLE
main69239-62010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9054104014
main90541-04014
36 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota LAND CRUISER PRADO
This section contains 36 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota LAND CRUISER PRADO. Key components include: FRONT DOOR PANEL & GLASS, LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH.
