Toyota LAND CRUISER PRADO — ELECTRONIC MODULATED SUSPENSION

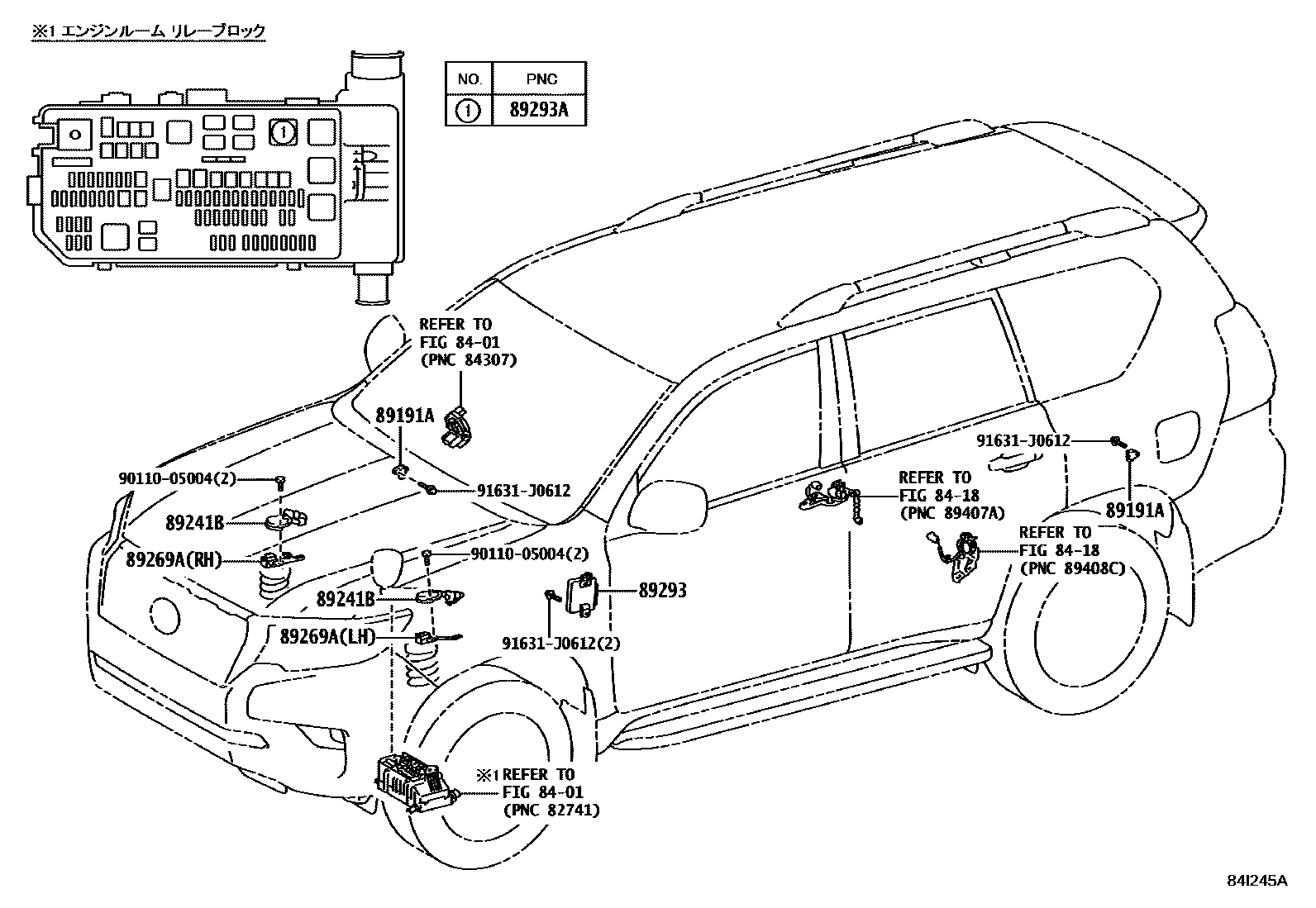

Parts diagram

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8418ELECTRONIC HEIGHT CONTROL

→ Go to FIG 84-18

89191ASENSOR, ACCELERATION

main89191-22020×2i201708-202312

89241BACTUATOR, ABSORBER CONTROL

main89241-60010×2i201708-202312

89269ABRACKET, SUSPENSION CONTROL

main89269-60010i201708-202312

main89269-60020i201708-202312

89293COMPUTER, SUSPENSION CONTROL

main89293-60130i201708-202008

main89293-60131i202008-202312

89293ARELAY, SUSPENSION CONTROL

main90987-02025i201708-202312

9011005004

main90110-05004

91631J0612

main91631-J0612

9 parts on this diagram · 1 diagram in section

ELECTRONIC MODULATED SUSPENSION for Toyota LAND CRUISER PRADO

This section contains 9 genuine Toyota parts for the ELECTRONIC MODULATED SUSPENSION system of the Toyota LAND CRUISER PRADO. Key components include: SWITCH & RELAY & COMPUTER, ELECTRONIC HEIGHT CONTROL, SENSOR, ACCELERATION, ACTUATOR, ABSORBER CONTROL, BRACKET, SUSPENSION CONTROL.
