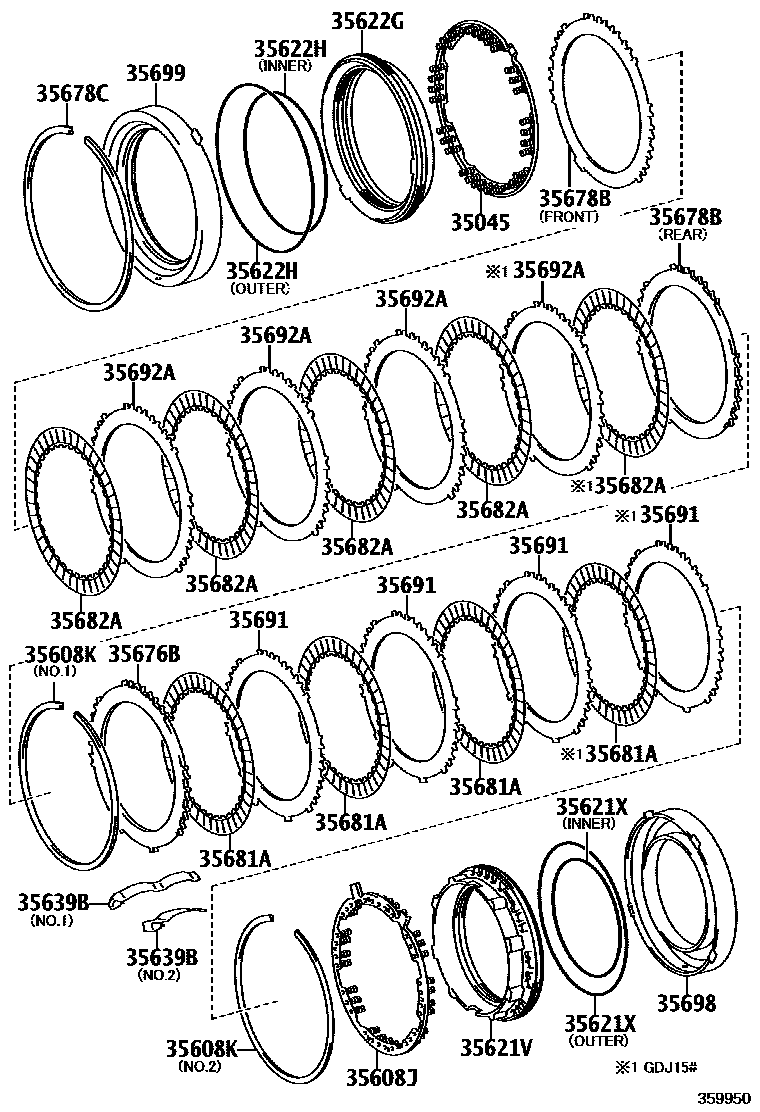

Toyota LAND CRUISER PRADO — CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35045SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2
35608JSPRING SUB-ASSY, BRAKE PISTON RETURN
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
35621XRING, O (FOR BRAKE PISTON NO.1)
35622HRING, O (FOR BRAKE PISTON NO.2)
35639BSPRING, BRAKE PLATE STOPPER
35676BFLANGE, BRAKE, NO.1
35678BFLANGE, BRAKE, NO.2
35678CRING, SNAP (FOR BRAKE NO.2)
35681ADISC, BRAKE, NO.1
35682ADISC, BRAKE, NO.2
35691PLATE, BRAKE, NO.1
35692APLATE, BRAKE, NO.2
35698CYLINDER, BRAKE, NO.1
35699CYLINDER, BRAKE, NO.2
17 parts on this diagram · 1 diagram in section
CENTER SUPPORT & PLANETARY SUN GEAR (ATM) for Toyota LAND CRUISER PRADO
This section contains 17 genuine Toyota parts for the CENTER SUPPORT & PLANETARY SUN GEAR (ATM) system of the Toyota LAND CRUISER PRADO. Key components include: SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2, SPRING SUB-ASSY, BRAKE PISTON RETURN, RING, SNAP (FOR BRAKE PISTON RETURN SPRING), PISTON, BRAKE, NO.1, RING, O (FOR BRAKE PISTON NO.1).
