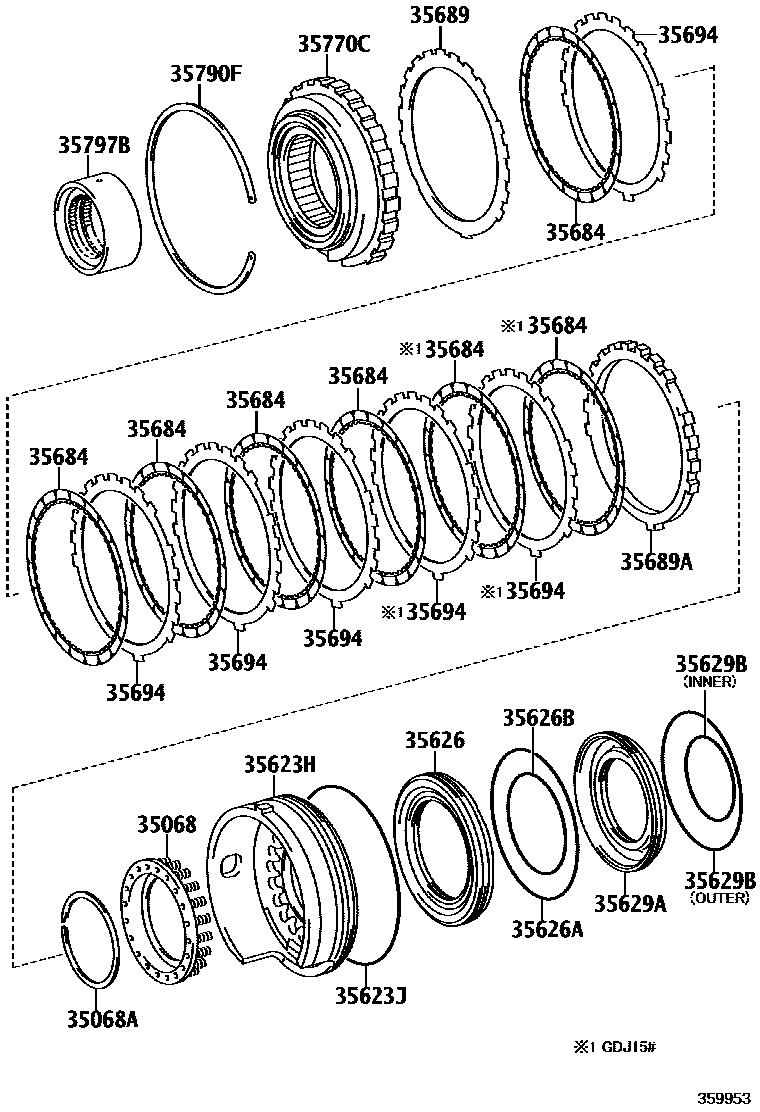

Toyota LAND CRUISER PRADO — BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-60010i201708-202312

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-61001i201708-202312

35623HPISTON, 1ST & REVERSE BRAKE

main35623-71010i201708-202312

main35623-71020i201708-202312

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99087i201708-202312

35626SLEEVE, BRAKE REACTION

main35626-50010i201708-202312

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99144i201708-202312

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-79003i201708-202312

35629APISTON, BRAKE, NO.4

main35629-50020i201708-202312

35629BRING, O (FOR BRAKE PISTON NO.4)

main90301-67006i201708-202312

main90301-99084i201708-202312

35684DISC, BRAKE, NO.4

main35684-60030×5i201708-202312

35689FLANGE, BRAKE, NO.4

main35689-60270i201708-202312

main35689-60280i201708-202312

main35689-60290i201708-202312

main35689-60300i201708-202312

main35689-60310i201708-202312

main35689-60320i201708-202312

main35689-60330i201708-202312

main35689-60340i201708-202312

main35689-60350i201708-202312

main35689-60360i201708-202312

main35689-60370i201708-202312

35689AFLANGE, BRAKE, NO.4

main35689-71010i201708-202312

35694PLATE, BRAKE, NO.4

main35694-60011×4i201708-202312

35770CCLUTCH ASSY, 1WAY NO.3

main35770-60030i201708-202312

35790FRING, HOLE SNAP(FOR 1WAY CLUTCH)

main90521-99131i201708-202312

35797BRACE, 1 WAY CLUTCH, INNER

main35797-60020i201708-202312

16 parts on this diagram · 1 diagram in section

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM) for Toyota LAND CRUISER PRADO

This section contains 16 genuine Toyota parts for the BRAKE NO.3, 1ST & REVERSE BRAKE (ATM) system of the Toyota LAND CRUISER PRADO. Key components include: SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN, RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING), PISTON, 1ST & REVERSE BRAKE, RING, O (FOR 1ST & REVERSE BRAKE), SLEEVE, BRAKE REACTION.
