Toyota LAND CRUISER PRADO — ARMREST & VISOR

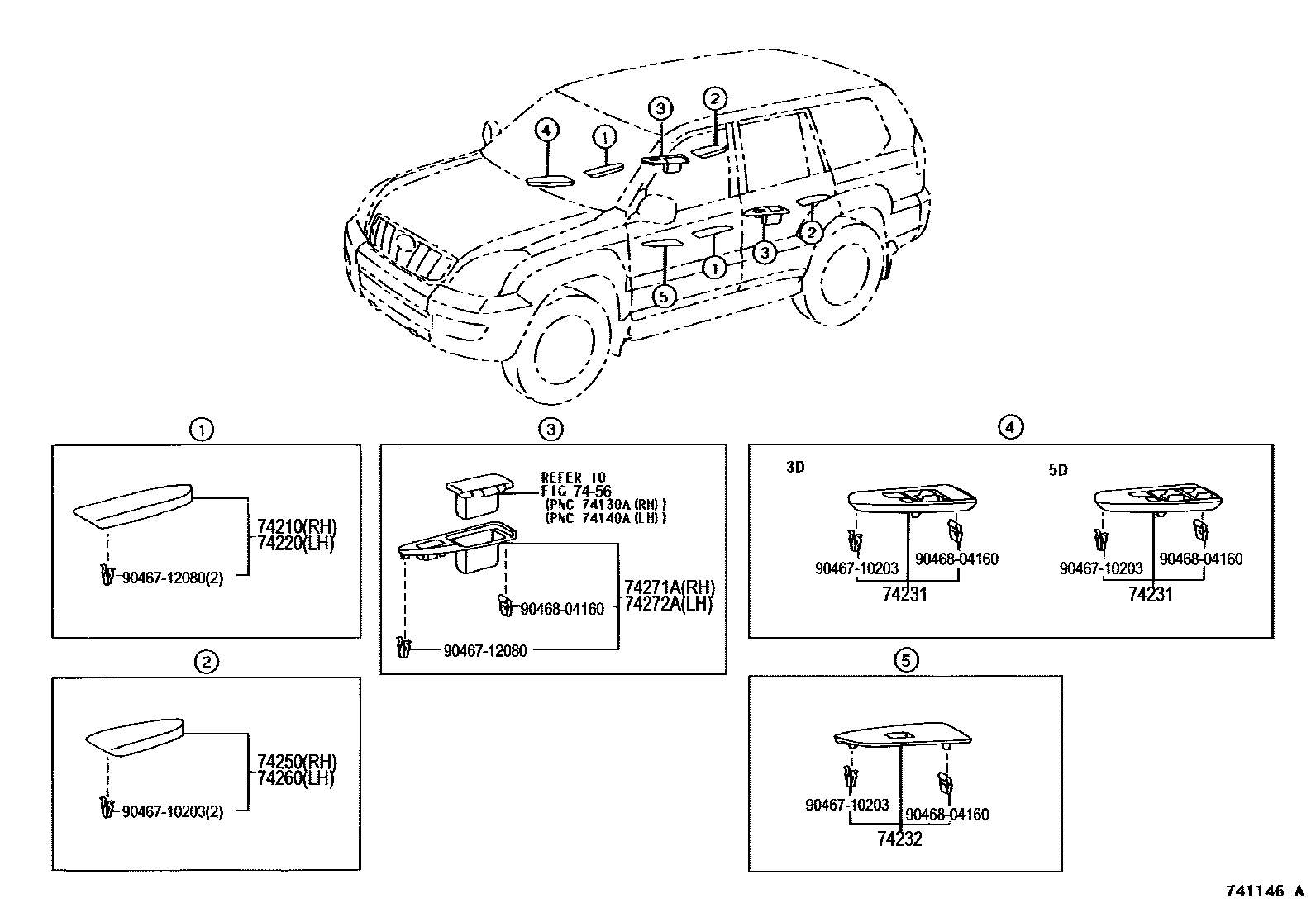

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-60170-A0i200209-200704
IVORY,TRIM0#
main74210-60170-B0i200209-200704
MEDIUM GRAY,TRIM1#
main74210-60171-A0i200705-200908
IVORY,TRIM0#
main74210-60171-B0i200705-200908
MEDIUM GRAY,TRIM1#
main74210-60180-A0i200209-200608
IVORY,TRIM0#
main74210-60180-B0i200209-200608
MEDIUM GRAY,TRIM1#
main74210-60181-A2i200608-200908
main74210-60181-B2i200608-200908
main74210-60160-A0i200209-200408
main74210-60160-B0i200209-200908
74220ARMREST ASSY, FRONT, LH
main74220-60170-A0i200209-200704
IVORY,TRIM0#
main74220-60170-B0i200209-200704
MEDIUM GRAY,TRIM1#
main74220-60171-A0i200705-200908
IVORY,TRIM0#
main74220-60171-B0i200705-200908
MEDIUM GRAY,TRIM1#
main74220-60180-A0i200209-200608
IVORY,TRIM0#
main74220-60180-B0i200209-200608
MEDIUM GRAY,TRIM1#
main74220-60181-A2i200608-200908
main74220-60181-B2i200608-200908
main74220-60160-A0i200209-200408
main74220-60160-B0i200209-200408
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-60420supersedes 74231-60400i200209-200908
main74231-60440supersedes 74231-60430i200209-200508
main74231-60400i200209-200408
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-60370supersedes 74232-60350i200209-200908
74250ARMREST ASSY, REAR RH
main74250-60110-A0i200209-200704
IVORY,TRIM0#
main74250-60110-B0i200209-200704
MEDIUM GRAY,TRIM1#
main74250-60111-A0i200705-200908
IVORY,TRIM0#
main74250-60111-B0i200705-200908
MEDIUM GRAY,TRIM1#
main74250-60120-A0i200209-200608
IVORY,TRIM0#
main74250-60120-B0i200209-200608
MEDIUM GRAY,TRIM1#
main74250-60121-A2i200608-200908
main74250-60121-B2i200608-200908
main74250-60100-A0i200209-200908
main74250-60100-B0i200608-200908
74260ARMREST ASSY, REAR LH
main74260-60110-A0i200209-200704
IVORY,TRIM0#
main74260-60110-B0i200209-200704
MEDIUM GRAY,TRIM1#
main74260-60111-A0i200705-200908
IVORY,TRIM0#
main74260-60111-B0i200705-200908
MEDIUM GRAY,TRIM1#
main74260-60120-A0i200209-200608
IVORY,TRIM0#
main74260-60120-B0i200209-200608
MEDIUM GRAY,TRIM1#
main74260-60121-A2i200608-200908
main74260-60121-B2i200608-200908
main74260-60100-A0i200209-200408
main74260-60100-B0i200608-200908
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-60150supersedes 74271-60130i200209-200908
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-60150supersedes 74272-60130i200209-200908
7456ASH RECEPTACLE
→ Go to FIG 74-56
9046710203
main90467-10203
9046712080
main90467-12080
9046804160
main90468-04160

12 parts on this diagram · 3 diagrams in section

ARMREST & VISOR for Toyota LAND CRUISER PRADO

This section contains 35 genuine Toyota parts for the ARMREST & VISOR system of the Toyota LAND CRUISER PRADO. Key components include: INSIDE TRIM BOARD, ROOF HEADLINING & SILENCER PAD, ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, PANEL, FRONT ARMREST BASE, UPPER RH.
