Toyota LAND CRUISER PRADO — ACCELERATOR LINK
78010BSPRING, TORSION (FOR ACCELERATOR LINK)
78120GROD ASSY, ACCELERATOR PEDAL
78180PCABLE ASSY, ACCELERATOR CONTROL
78183BCLAMP, ACCELERATOR CONTROL CABLE
9011906595
main90119-06595
9011906775
main90119-06775
9017906264
main90179-06264
9616000600
main96160-00600

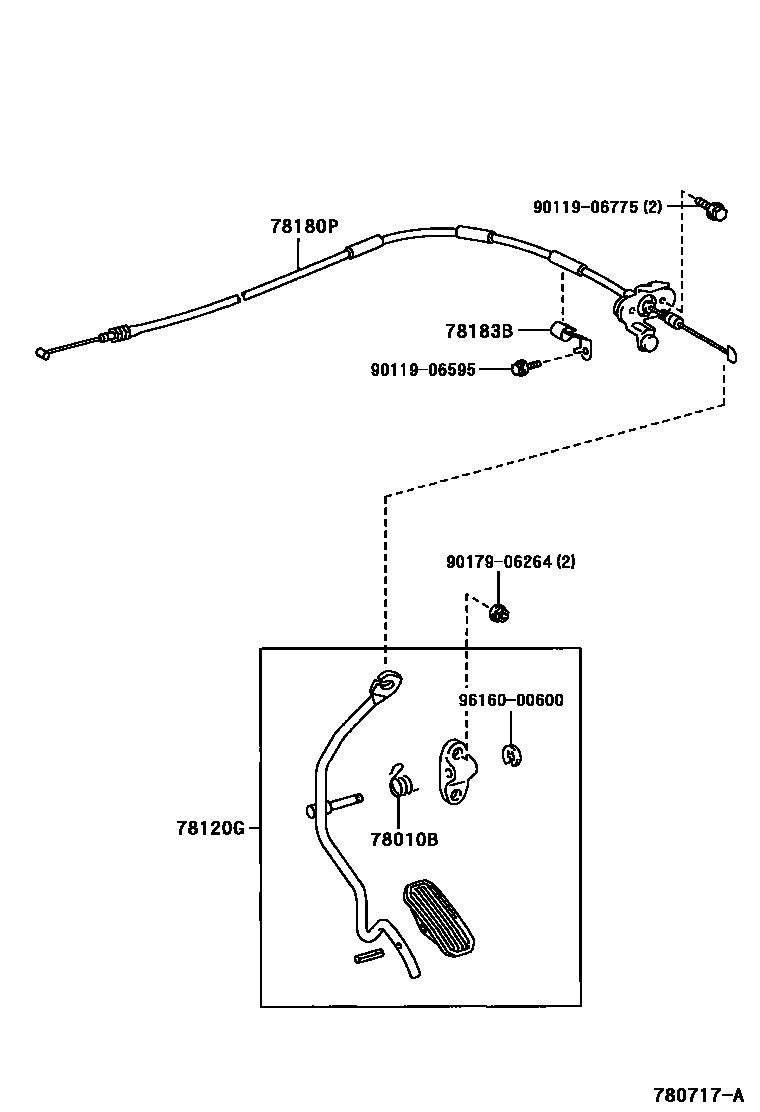

8 parts on this diagram · 3 diagrams in section
ACCELERATOR LINK for Toyota LAND CRUISER PRADO
This section contains 12 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LAND CRUISER PRADO. Key components include: SPRING, TORSION (FOR ACCELERATOR LINK), ROD ASSY, ACCELERATOR PEDAL, CABLE ASSY, ACCELERATOR CONTROL, CLAMP, ACCELERATOR CONTROL CABLE, BRACKET, ACCELERATOR CONTROL CABLE.
