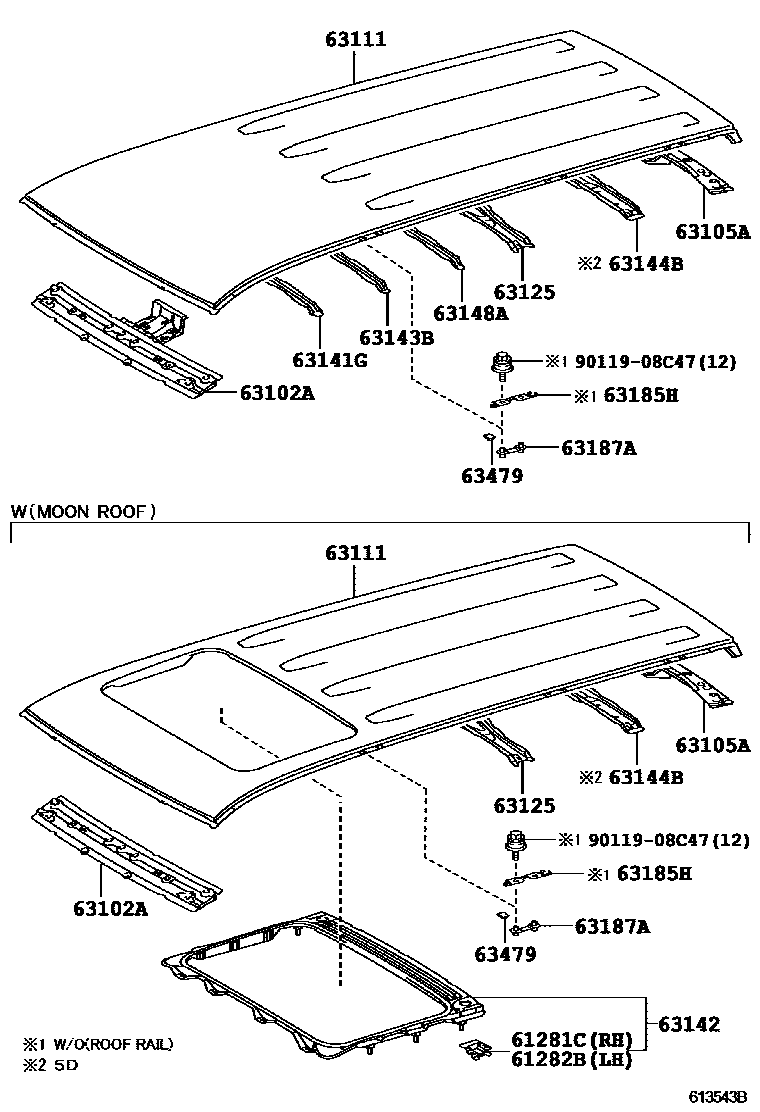

Toyota LAND CRUISER PRADO — ROOF PANEL & BACK PANEL
61281CBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
MOON ROOF-WITH
61282BBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1 LH
main61282-60010iGDJ150,KDJ150..RHD..ATM; GDJ150..6FC; GRJ150,KDJ150..LHD..ATM..GEN; GRJ150..GEN;GDJ150,KDJ150,TRJ150..ARL,GEN; KDJ150..LHD..5FC..GEN;GRJ150,KDJ150,TRJ150..(5F,6F,6FC)..GEN; KDJ150..RHD..5FC; LJ150;GRJ150,KDJ150,TRJ15#..ARL,GCC201506
MOON ROOF-WITH; TX-L PACKAGE&MOON ROOF-WITH; VX PACKAGE&MOON ROOF-WITH; VX PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER; VX PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER; VX PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER; VX PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-AVN(PIONEER) & 14SPEAKER; VX-L PACKAGE&MOON ROOF-WITH; VX-L PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER; VX-L PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER; VX-L PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER; VX-L PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-AVN(PIONEER) & 14SPEAKER
63102APANEL SUB-ASSY, WINDSHIELD HEADER
main63102-60140iGDJ150,KDJ150..RHD..ATM; GDJ150..6FC; GRJ150,KDJ150..LHD..ATM..GEN; GRJ150..GEN;GDJ150,KDJ150,TRJ150..ARL,GEN; KDJ150..LHD..5FC..GEN;GRJ150,KDJ150,TRJ150..(5F,6F,6FC)..GEN; KDJ150..RHD..5FC; LJ150;GRJ150,KDJ150,TRJ15#..ARL,GCC201506-201611
MOON ROOF-WITH; TX-L PACKAGE&MOON ROOF-WITH; VX PACKAGE&MOON ROOF-WITH; VX PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER; VX PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER; VX PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER; VX PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-AVN(PIONEER) & 14SPEAKER; VX-L PACKAGE&MOON ROOF-WITH; VX-L PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER; VX-L PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER; VX-L PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER; VX-L PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-AVN(PIONEER) & 14SPEAKER
main63102-60141iGDJ150,KDJ150..RHD..ATM; GDJ150..6FC; GRJ150,KDJ150..LHD..ATM..GEN; GRJ150..GEN;GDJ150,KDJ150,TRJ150..ARL,GEN; KDJ150..LHD..5FC..GEN;GRJ150,KDJ150,TRJ150..(5F,6F,6FC)..GEN; KDJ150..RHD..5FC; LJ150;GRJ150,KDJ150,TRJ15#..ARL,GCC; TRJ150..GEN201611
MOON ROOF-WITH; RUSSIA SPEC&TX-L PACKAGE&MOON ROOF-WITH&MAYDAY SYSTEM-WITH(ERA-GLONASS); RUSSIA SPEC&VX PACKAGE&MOON ROOF-WITH&MAYDAY SYSTEM-WITH(ERA-GLONASS); TX-L PACKAGE&MOON ROOF-WITH; VX PACKAGE&MOON ROOF-WITH; VX PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER; VX PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER; VX PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER; VX PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-AVN(PIONEER) & 14SPEAKER; VX-L PACKAGE&MOON ROOF-WITH; VX-L PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER; VX-L PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER; VX-L PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER; VX-L PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-AVN(PIONEER) & 14SPEAKER
63105AFRAME SUB-ASSY, BACK DOOR OPENING
63111PANEL, ROOF
main63111-60630iGDJ150,KDJ150..RHD..ATM; GDJ150..6FC; GRJ150,KDJ150..LHD..ATM..GEN; GRJ150..GEN;GDJ150,KDJ150,TRJ150..ARL,GEN; KDJ150..LHD..5FC..GEN;GRJ150,KDJ150,TRJ150..(5F,6F,6FC)..GEN; KDJ150..RHD..5FC; LJ150;GRJ150,KDJ150,TRJ150..ARL,GCC201506
MOON ROOF-WITH; TX-L PACKAGE&MOON ROOF-WITH; VX PACKAGE&MOON ROOF-WITH; VX PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER; VX PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER; VX PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER; VX PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-AVN(PIONEER) & 14SPEAKER; VX-L PACKAGE&MOON ROOF-WITH; VX-L PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER; VX-L PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER; VX-L PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER; VX-L PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-AVN(PIONEER) & 14SPEAKER
MOON ROOF-WITH
RUSSIA SPEC&MAYDAY SYSTEM-WITH(ERA-GLONASS)
RUSSIA SPEC&TX-L PACKAGE&MOON ROOF-WITH&MAYDAY SYSTEM-WITH(ERA-GLONASS); RUSSIA SPEC&VX PACKAGE&MOON ROOF-WITH&MAYDAY SYSTEM-WITH(ERA-GLONASS)
63125REINFORCEMENT, ROOF PANEL, NO.2
63141GREINFORCEMENT, ROOF PANEL, NO.1
63142REINFORCEMENT, ROOF PANEL, NO.2
main63104-60070iGDJ150,KDJ150..RHD..ATM; GDJ150..6FC; GRJ150,KDJ150..LHD..ATM..GEN; GRJ150..GEN;GDJ150,KDJ150,TRJ150..ARL,GEN; KDJ150..LHD..5FC..GEN;GRJ150,KDJ150,TRJ150..(5F,6F,6FC)..GEN; KDJ150..RHD..5FC; LJ150;GRJ150,KDJ150,TRJ15#..ARL,GCC201506
MOON ROOF-WITH; TX-L PACKAGE&MOON ROOF-WITH; VX PACKAGE&MOON ROOF-WITH; VX PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER; VX PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER; VX PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER; VX PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-AVN(PIONEER) & 14SPEAKER; VX-L PACKAGE&MOON ROOF-WITH; VX-L PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER; VX-L PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER; VX-L PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER; VX-L PACKAGE&MOON ROOF-WITH&AUDIO(FOR OVERSEAS MARKET)-AVN(PIONEER) & 14SPEAKER
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144BREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
63185HBRACKET, ROOF RACK
63187ABRACKET, ROOF RACK, REAR
63479RETAINER, ROOF INNER RACK
9011908C47
main90119-08C47
15 parts on this diagram · 3 diagrams in section
ROOF PANEL & BACK PANEL for Toyota LAND CRUISER PRADO
This section contains 60 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota LAND CRUISER PRADO. Key components include: BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1, BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1 LH, PANEL SUB-ASSY, WINDSHIELD HEADER, FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF.
