Toyota LAND CRUISER PRADO — PACKAGE TRAY PANEL

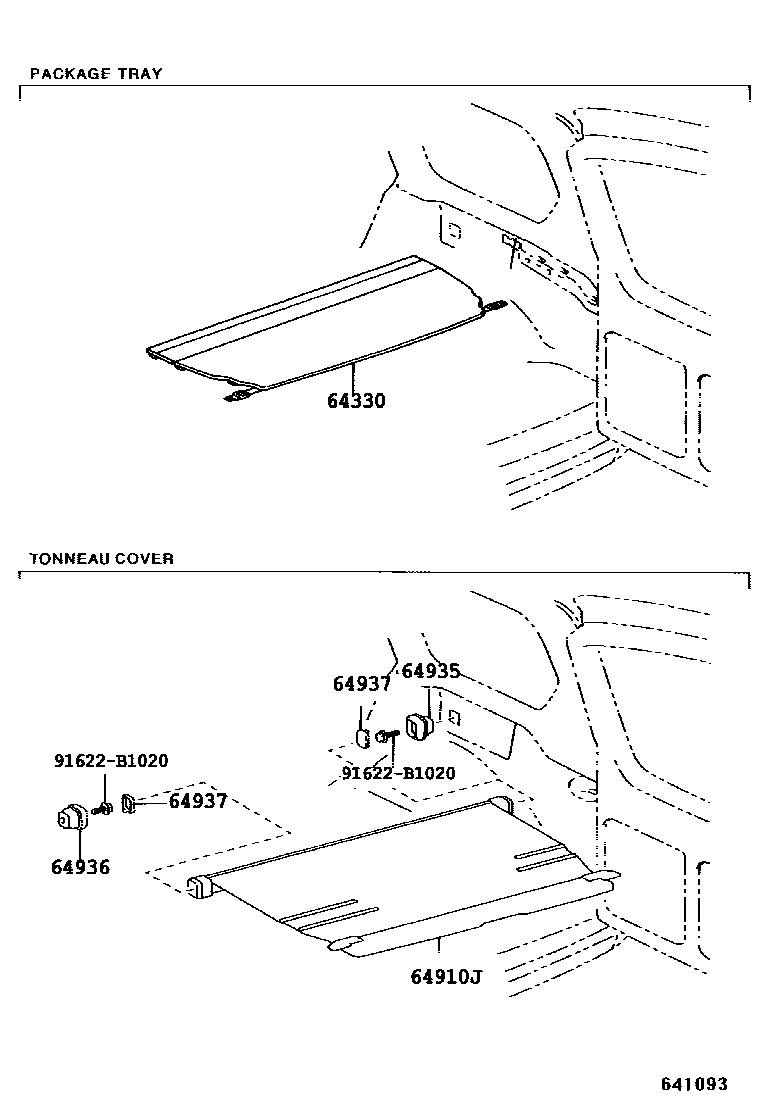

Parts diagram

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-60020-A0i200209-200908

PKG.TRAY TRIM & TONEAU COVER-WITH(PAKAGE TRAY BOARD),IVORY,TRIM0#

main64330-60020-B0i200209-200908

PKG.TRAY TRIM & TONEAU COVER-WITH(PAKAGE TRAY BOARD),MD.GRAY,TRIM1#

64910JCOVER ASSY, TONNEAU

main64910-60080-A0i200209-200308

PKG.TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER),IVORY,TRIM0#

main64910-60080-B0i200209-200308

PKG.TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER),MD.GRAY,TRIM1#

main64910-60081-A0i200308-200908

PKG.TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER),IVORY,TRIM0#

main64910-60081-B0i200308-200908

PKG.TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER),MD.GRAY,TRIM1#

64935HOLDER, TONNEAU COVER, RH

main64935-60040-A0i200209-200908

PKG.TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER),IVORY,TRIM0#

main64935-60040-B0i200209-200908

PKG.TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER),MD.GRAY,TRIM1#

64936HOLDER, TONNEAU COVER, LH

main64936-60050-A0i200209-200908

PKG.TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER),IVORY,TRIM0#

main64936-60050-B0i200209-200908

PKG.TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER),MD.GRAY,TRIM1#

64937CAP, TONNEAU COVER HOLDER, NO.1

main64937-60020-A0×2i200209-200908

PKG.TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER),IVORY,TRIM0#

main64937-60020-B0×2i200209-200908

PKG.TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER),MD.GRAY,TRIM1#

91622B1020

main91622-B1020

6 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL for Toyota LAND CRUISER PRADO

This section contains 6 genuine Toyota parts for the PACKAGE TRAY PANEL system of the Toyota LAND CRUISER PRADO. Key components include: PANEL ASSY, PACKAGE TRAY TRIM, COVER ASSY, TONNEAU, HOLDER, TONNEAU COVER, RH, HOLDER, TONNEAU COVER, LH, CAP, TONNEAU COVER HOLDER, NO.1.
