Toyota LAND CRUISER PRADO — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

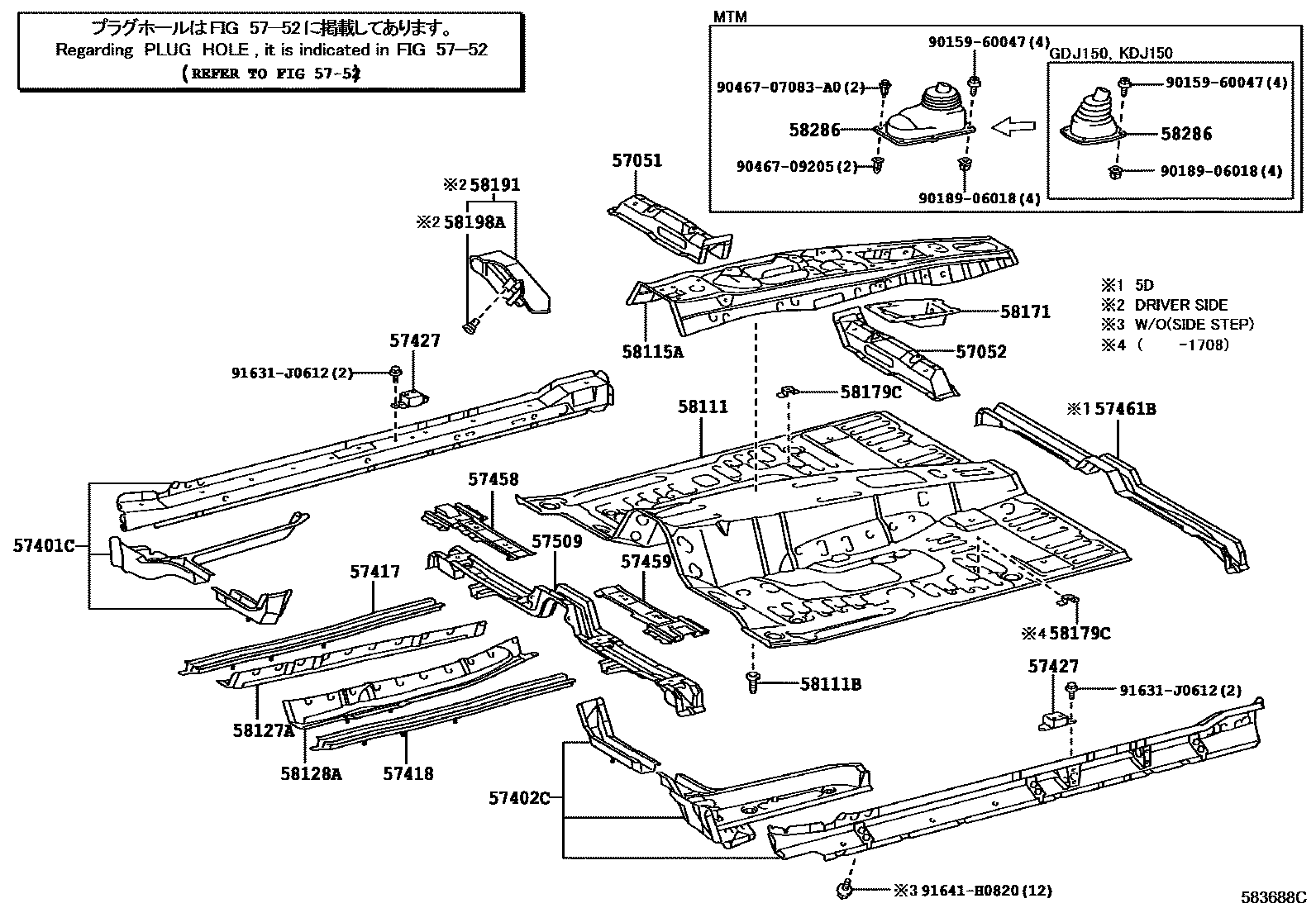

Parts diagram
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
main57051-35051i201506
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
main57052-35051i201308-201506
57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
main57401-60901i200908-201109
main57401-60902i200908-201110
main57401-60903i201506
main57401-60904i201506
57402CMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
main57402-60901i200908-201109
main57402-60902i200908-201110
main57402-60903i201506
main57402-60904i201506
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
main57417-35051i201506
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
main57417-35061i200908-201110
57427REINFORCEMENT, FRONT FLOOR TO BRACE
main57427-60020×2i201308-201506
57458MEMBER, FRONT FLOOR CROSS, NO.1
main57458-60020i200908-201308
57459MEMBER, FRONT FLOOR CROSS, NO.2
main57459-60070i200908-201110
57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
main57461-35020i201506
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
main57509-60100i200908-201110
main57509-60130i201506
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,10PERSONS SEAT
5752HOLE PLUG
→ Go to FIG 57-52
58111PAN, FRONT FLOOR
main58111-60B90i200908-201110
main58111-60C00i201506
main58111-60B80i201110-201308
TX-L PACKAGE&COOL BOX-WITH; VX PACKAGE&LEATHER PACKAGE (STEERING & SHIFT KNOB)&COOL BOX-WITH; VX PACKAGE&LEATHER SEAT PACKAGE&COOL BOX-WITH; VX-L PACKAGE&LEATHER SEAT PACKAGE&COOL BOX-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLEFLAT POWER
main58111-60C10i201110-201308
TX-L PACKAGE&COOL BOX-WITH; VX PACKAGE&LEATHER PACKAGE (STEERING & SHIFT KNOB)&COOL BOX-WITH; VX PACKAGE&LEATHER SEAT PACKAGE&COOL BOX-WITH; VX-L PACKAGE&LEATHER SEAT PACKAGE&COOL BOX-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLEFLAT POWER
main58111-60C20i201110-201308
TX-L PACKAGE&COOL BOX-WITH; TX-L PACKAGE&COOL BOX-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL; VX PACKAGE&LEATHER PACKAGE (STEERING & SHIFT KNOB)&COOL BOX-WITH; VX PACKAGE&LEATHER PACKAGE (STEERING & SHIFT KNOB)&COOL BOX-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL; VX PACKAGE&LEATHER SEAT PACKAGE&COOL BOX-WITH; VX PACKAGE&LEATHER SEAT PACKAGE&COOL BOX-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER; VX-L PACKAGE&LEATHER SEAT PACKAGE&COOL BOX-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLEFLAT POWER
main58111-60D80i201110-201308
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,10PERSONS SEAT
main58111-60D90i201506
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,10PERSONS SEAT
58111BBOLT, WELD(FOR FRONT FLOOR PAN)
main90115-06166i201308-201506
58115AREINFORCEMENT, FRONT FLOOR PANEL
main58115-60011i201506
main58115-60020i201506
main58115-60031i201506
58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
main58127-35010i201506
58128AREINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH
main58128-35011i201506
58171REINFORCEMENT, PARKING BRAKE BASE
main58171-60020i200908-201308
58179CBRACKET, CLAMP FLOOR
main58179-60010×2i200908-201110
58191FOOTREST, FRONT FLOOR
main58190-60111i200908-201304
main58190-60112i201308-201506
main58190-60150i200908-201308
main58190-60160i201308-201506
main58190-60170i201506
58198ACLIP, FOOTREST, NO.1
main58198-20210×2i201506
58286BOOT, SHIFT & SELECT LEVER, NO.1
main58280-60400i200908-201110
main58280-60410i201506
9015960047
main90159-60047
9018906018
main90189-06018
9046707083A0
main90467-07083A0
9046709205
main90467-09205
91631J0612
main91631-J0612
91641H0820
main91641-H0820

28 parts on this diagram · 2 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota LAND CRUISER PRADO

This section contains 60 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota LAND CRUISER PRADO. Key components include: BRACKET SUB-ASSY, SIDE STEP, NO.2, BRACKET SUB-ASSY, SIDE STEP, NO.2, RH, BRACKET SUB-ASSY, SIDE STEP, NO.2, LH, BRACKET SUB-ASSY, SIDE STEP, NO.3, BOSS, STEP ARM, LOWER.
