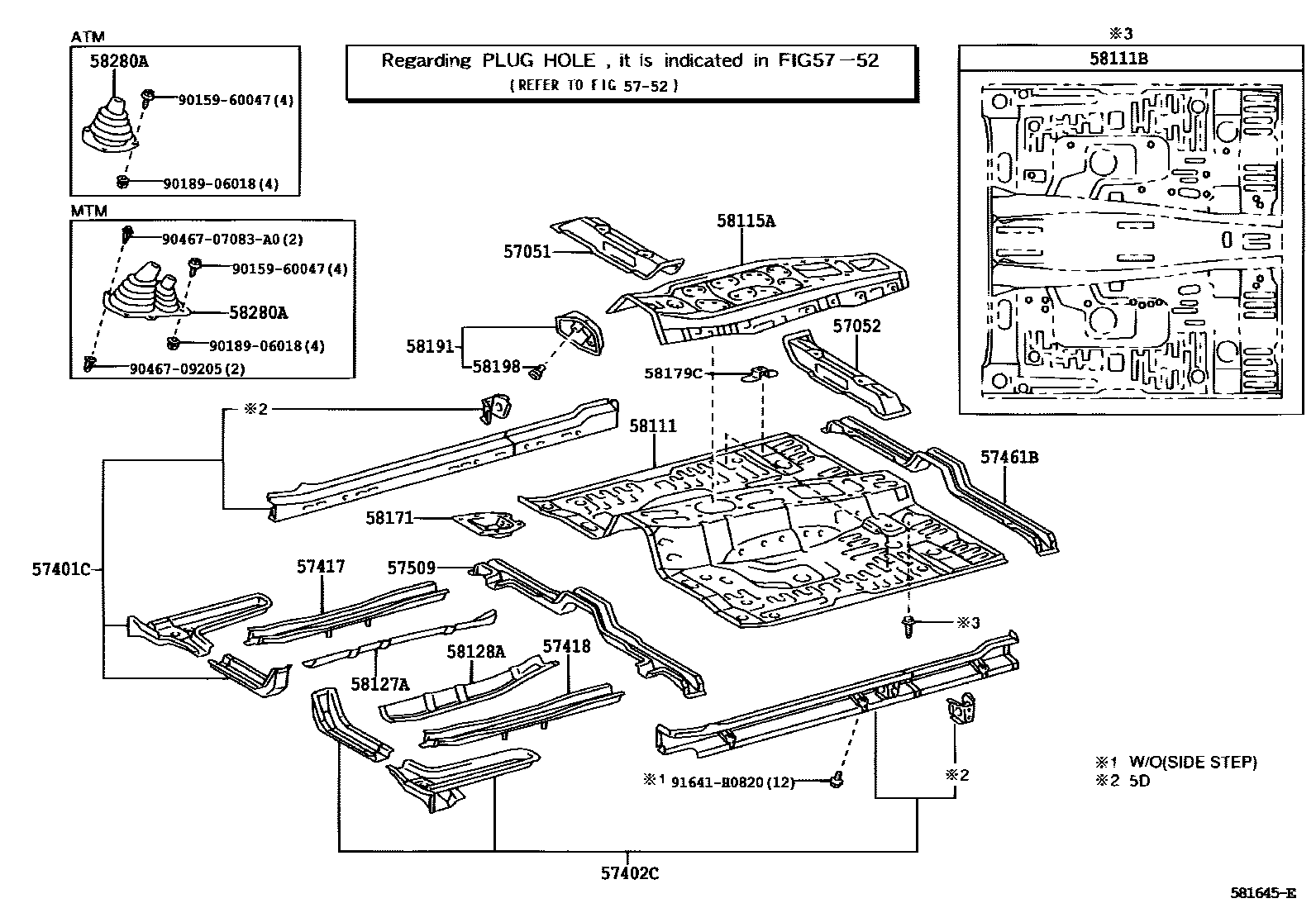

Toyota LAND CRUISER PRADO — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402CMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
REAR SEAT-PARALLEL
5752HOLE PLUG
58111PAN, FRONT FLOOR
main58111-6A342iGRJ12#,KDJ120,KZJ120..ATM..VX..(ARL,GCC,GEN); GRJ120,KDJ120,KZJ120..ATM..GX..ARL; GRJ120..VX..CHI; TRJ120..4FC..GEN;GRJ120,KDJ120,KZJ120,TRJ125..ATM..GX..(ARL,GCC); TRJ125..GCC;TRJ120..4FC..GEN200808
AIR CONDITIONER-DUAL AUTO&WITH(COOL BOX); AIR CONDITIONER-SINGLE AUTO&WITH(COOL BOX); AIR CONDITIONER-SINGLE MANUAL&WITH(COOL BOX); WITH(COOL BOX)
AIR CONDITIONER-SINGLE AUTO&WITH/COOL BOX; WITH/COOL BOX
AIR CONDITIONER-SINGLE AUTO&WITH/COOL BOX; WITH/COOL BOX
AIR CONDITIONER-DUAL AUTO&WITH(COOL BOX); AIR CONDITIONER-SINGLE AUTO&WITH(COOL BOX); WITH(COOL BOX)
main58111-6A340iGRJ12#,KZJ120..ATM..VX; GRJ120,KZJ120,RZJ120,TRJ120..ATM..GX..(ARL,GEN); RZJ120,TRJ120..4FC..(ARL,GEN);GRJ120,KZJ120,RZJ125,TRJ125..ATM..GX..(ARL,GCC,GEN); RZJ120,TRJ120..4FC..GEN; RZJ125,TRJ125..4FC;RZJ120,TRJ120..4FC..GEN200209-200503
AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX; AIR CONDITIONER-DUAL MANUAL&WITH/COOL BOX; AIR CONDITIONER-SINGLE AUTO&WITH/COOL BOX; AIR CONDITIONER-SINGLE MANUAL&WITH/COOL BOX; WITH/COOL BOX
AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX; AIR CONDITIONER-SINGLE AUTO&WITH/COOL BOX; WITH/COOL BOX
AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX; AIR CONDITIONER-SINGLE AUTO&WITH/COOL BOX; WITH/COOL BOX
AIR CONDITIONER-DUAL AUTO&WITH(COOL BOX); AIR CONDITIONER-SINGLE AUTO&WITH(COOL BOX); WITH(COOL BOX)
AIR CONDITIONER-DUAL AUTO&WITH(COOL BOX); AIR CONDITIONER-SINGLE AUTO&WITH(COOL BOX); WITH(COOL BOX)
AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX; AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX&REAR SEAT-REMOVABLE; AIR CONDITIONER-DUAL MANUAL&WITH/COOL BOX&REAR SEAT-REMOVABLE
AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX&REAR SEAT-REMOVABLE; AIR CONDITIONER-DUAL MANUAL&WITH/COOL BOX&REAR SEAT-REMOVABLE; AIR CONDITIONER-SINGLE AUTO&WITH/COOL BOX; AIR CONDITIONER-SINGLE MANUAL&WITH/COOL BOX; WITH/COOL BOX
AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX&REAR SEAT-REMOVABLE; AIR CONDITIONER-DUAL MANUAL&WITH/COOL BOX&REAR SEAT-REMOVABLE; AIR CONDITIONER-SINGLE AUTO&WITH/COOL BOX; AIR CONDITIONER-SINGLE MANUAL&WITH/COOL BOX; WITH/COOL BOX
AIR CONDITIONER-DUAL AUTO&WITH(COOL BOX)&REAR SEAT-REMOVABLE; AIR CONDITIONER-DUAL MANUAL&WITH(COOL BOX)&REAR SEAT-REMOVABLE; AIR CONDITIONER-SINGLE AUTO&WITH(COOL BOX); AIR CONDITIONER-SINGLE MANUAL&WITH(COOL BOX); WITH(COOL BOX)
REAR SEAT-PARALLEL
REAR SEAT-PARALLEL
REAR SEAT-PARALLEL
REAR SEAT-PARALLEL
REAR SEAT-PARALLEL
REAR SEAT-PARALLEL
REAR SEAT-PARALLEL
REAR SEAT-PARALLEL
REAR SEAT-PARALLEL
REAR SEAT-PARALLEL
REAR SEAT-PARALLEL
REAR SEAT-PARALLEL
REAR SEAT-PARALLEL
58111BBOLT, WELD(FOR FRONT FLOOR PAN)
58115AREINFORCEMENT, FRONT FLOOR PANEL
58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
58128AREINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH
58171REINFORCEMENT, PARKING BRAKE BASE
58179CBRACKET, CLAMP FLOOR
WITH(COOL BOX)
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
58280ABOOT ASSY, SHIFT LEVER
(L)
(J)
9015960047
main90159-60047
9018906018
main90189-06018
9046707083A0
main90467-07083A0
9046709205
main90467-09205
91641H0820
main91641-H0820
24 parts on this diagram · 3 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota LAND CRUISER PRADO
This section contains 48 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota LAND CRUISER PRADO. Key components include: BRACKET SUB-ASSY, SIDE STEP, NO.2, RH, BRACKET SUB-ASSY, SIDE STEP, NO.2, LH, PROTECTOR, STEP COVER, RH, COVER, SIDE DOOR STEP PLATE, REAR LH.
