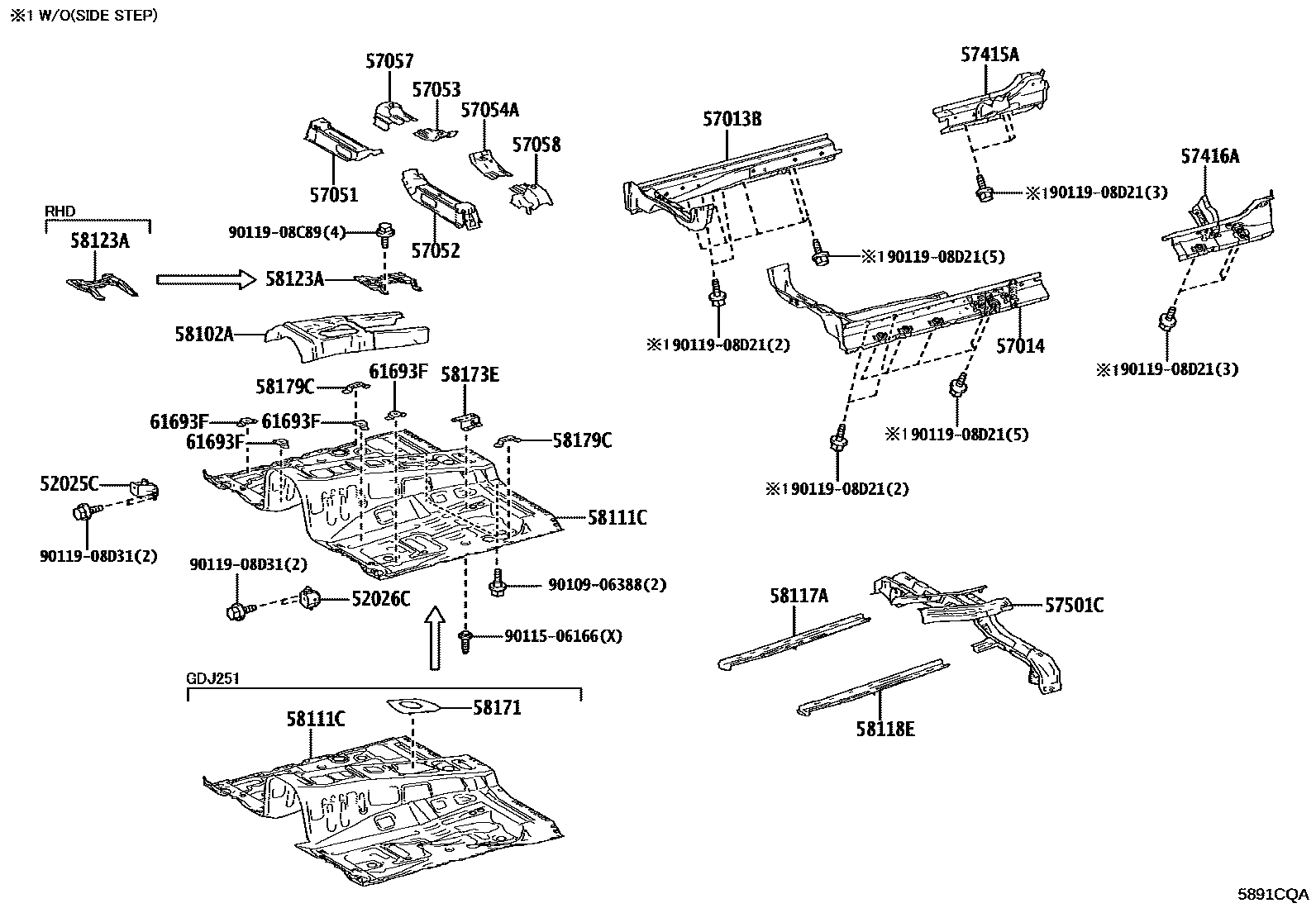

Toyota LAND CRUISER PRADO — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

52025CEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH

main52025-60070i202401-202509

52026CEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH

main52026-60070i202401-202509

57013BMEMBER SUB-ASSY, FLOOR, FRONT RH

main57013-60050i202401-202509

57014MEMBER SUB-ASSY, FLOOR, FRONT LH

main57014-60050i202401-202509

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-60100i202401-202509

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-60100i202401-202509

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-60070i202401-202509

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-60030i202401-202509

57057REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.7 RH

main57057-60020i202401-202509

57058REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.7 LH

main57058-60020i202401-202509

57415ARAIL SUB-ASSY, FLOOR SIDE, REAR RH

main57403-60080i202401-202509

57416ARAIL SUB-ASSY, FLOOR SIDE, REAR LH

main57404-60070i202401-202509

57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER

main57501-60030i202401-202509

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-60130i202401-202509

58111CPAN, FRONT FLOOR

main58111-60G40i202401-202509

main58111-60G50i202408

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-60050i202401-202509

58118EBRACKET, JACK SET

main58118-60040i202401-202509

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-60120i202401

main58123-60130i202401-202509

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-60060i202408

58173EBRACKET, WIRING HARNESS, NO.3

main58173-60010i202401-202509

58179CBRACKET, CLAMP FLOOR

main58179-60040×2i202401-202509

61693FBRACKET, FRONT FLOOR

main58523-60020×4i202401-202509

9010906388

main90109-06388

9011506166

main90115-06166

9011908C89

main90119-08C89

9011908D21

main90119-08D21

9011908D31

main90119-08D31

27 parts on this diagram · 2 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota LAND CRUISER PRADO

This section contains 39 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota LAND CRUISER PRADO. Key components include: STEP SUB-ASSY, RH, STEP SUB-ASSY, LH, PLATE, STEP, RH, PLATE, STEP, LH, REINFORCEMENT, STEP COVER, RH.
