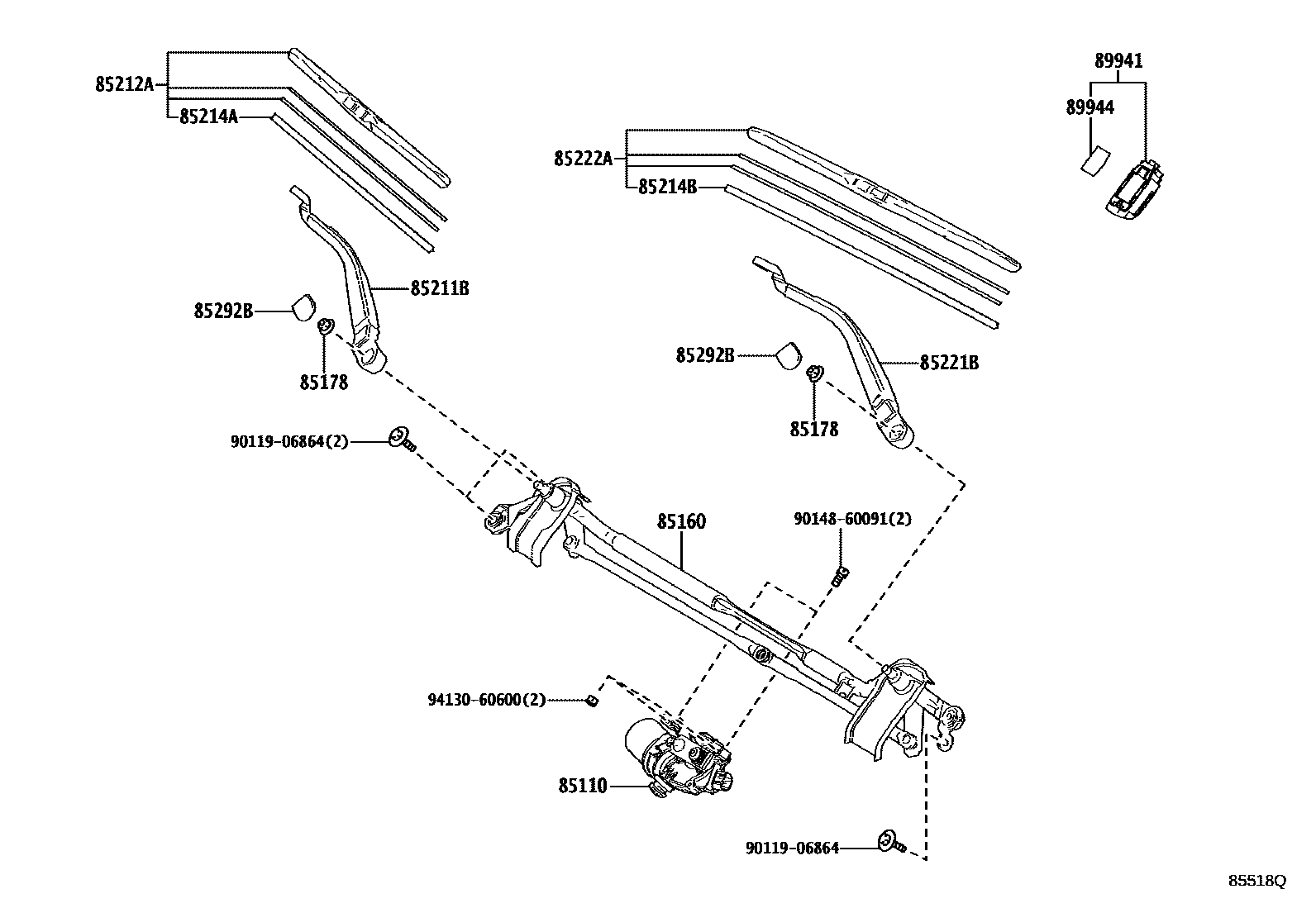

Toyota LAND CRUISER PRADO — WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-60560iGDJ25#,TRJ250..RHD..(ARL,GEN,SA)202401

main85110-60570iGDJ250..RHD..EUR202407-202509

main85110-60580iGDJ250..LHD..GEN;TJA250..(A,L)..GCC;TJA250,TRJ250..LHD..(R,U)..(GCC,GEN)202401

DESTINATION PACKAGE(OTHER-EGYPT SPEC

main85110-60580iGDJ250..LHD..GEN;TJA250..(A,L)..GCC;TJA250,TRJ250..LHD..(R,U)..(GCC,GEN)202401

DESTINATION PACKAGE(OTHER

main85110-60580iGDJ250..LHD..GEN;TJA250..(A,L)..GCC;TJA250,TRJ250..LHD..(R,U)..(GCC,GEN)202401

DESTINATION PACKAGE(OTHER-COLOMBIA SPEC

main85110-60580iGDJ250..LHD..GEN;TJA250..(A,L)..GCC;TJA250,TRJ250..LHD..(R,U)..(GCC,GEN)202401

DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC

main85110-60580iTJA250..(A,L)..GEN202401

DESTINATION PACKAGE(OTHER-BOLIVIA SPEC

main85110-60590iTJA250,TRJ250..RUS;TJA250..(A,L)..GEN;GDJ250..LHD..(EUR,GCC,RUS)202401

DESTINATION PACKAGE(OTHER-GEORGIA SPEC

85160LINK ASSY, WINDSHIELD WIPER

main85150-60570iGDJ25#,TRJ250..RHD..(ARL,GEN,SA)202401

main85150-60580iGDJ250..RHD..EUR202407-202509

main85150-60590iGDJ250..GCC202401

DESTINATION PACKAGE(OTHER-EGYPT SPEC

main85150-60590iGDJ250..LHD..GEN;TJA250..(A,L)..GCC;TJA250,TRJ250..LHD..(R,U)..(GCC,GEN)202401

DESTINATION PACKAGE(OTHER-BOLIVIA SPEC

main85150-60590iGDJ250..LHD..GEN;TJA250..(A,L)..GCC;TJA250,TRJ250..LHD..(R,U)..(GCC,GEN)202401

DESTINATION PACKAGE(OTHER

main85150-60590iGDJ250..LHD..GEN;TJA250..(A,L)..GCC;TJA250,TRJ250..LHD..(R,U)..(GCC,GEN)202401

DESTINATION PACKAGE(OTHER-COLOMBIA SPEC

main85150-60590iGDJ250..LHD..GEN;TJA250..(A,L)..GCC;TJA250,TRJ250..LHD..(R,U)..(GCC,GEN)202401

DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC

main85150-60600iTJA250,TRJ250..RUS;TJA250..(A,L)..GEN;GDJ250..LHD..(EUR,GCC,RUS)202401

DESTINATION PACKAGE(OTHER-GEORGIA SPEC

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iGDJ250..RHD..EUR202401-202509

85211BARM, FRONT WIPER, RH

main85211-60370iGDJ25#,TRJ250..RHD..(ARL,GEN,SA)202401

main85211-60380iGDJ250..RHD..EUR202407-202509

main85211-60390iGDJ250,TJA250,TRJ250..LHD202401

85212ABLADE, FR WIPER, RH

main85212-60270iGDJ25#,TRJ250..RHD..(ARL,GEN,SA)202401

main85212-60280iGDJ250,TJA250,TRJ250..LHD202401

main85212-60300iGDJ250..RHD..EUR202407-202509

85214ARUBBER, WIPER, RH

main85214-53080iGDJ25#,TRJ250..RHD..(ARL,GEN,SA)202401-202509

main85214-60120iGDJ250,TJA250,TRJ250..LHD202401

85214BRUBBER, WIPER, LH

main85214-53080iGDJ250,TJA250,TRJ250..LHD202401

main85214-60120iGDJ25#,TRJ250..RHD..(ARL,GEN,SA)202401-202509

85221BARM, FRONT WIPER, LH

main85221-60380iGDJ250..RHD..EUR202401-202509

main85221-60390iTJA250..(A,L)..GEN202401

DESTINATION PACKAGE(OTHER-BOLIVIA SPEC

main85221-60390iTJA250..(A,L)..GEN202401

DESTINATION PACKAGE(OTHER-EGYPT SPEC

main85221-60390iTJA250..(A,L)..GEN202401

DESTINATION PACKAGE(OTHER

main85221-60390iTJA250..(A,L)..GEN202401

DESTINATION PACKAGE(OTHER-COLOMBIA SPEC

main85221-60390iTJA250..(A,L)..GEN202401

DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC

main85221-60400iTJA250,TRJ250..RUS;TJA250..(A,L)..GEN;GDJ250..LHD..(EUR,GCC,RUS)202401

DESTINATION PACKAGE(OTHER-GEORGIA SPEC

85222ABLADE, FR WIPER, LH

main85222-60300iGDJ250..RHD..EUR202401-202509

main85222-60310iTJA250,TRJ250..RUS;TJA250..(A,L)..GEN;GDJ250..LHD..(EUR,GCC,RUS)202401

DESTINATION PACKAGE(OTHER-GEORGIA SPEC

main85222-60330iGDJ250..LHD..GEN;TJA250..(A,L)..GCC;TJA250,TRJ250..LHD..(R,U)..(GCC,GEN)202401

DESTINATION PACKAGE(OTHER-BOLIVIA SPEC

main85222-60330iGDJ250..LHD..GEN;TJA250..(A,L)..GCC;TJA250,TRJ250..LHD..(R,U)..(GCC,GEN)202401

DESTINATION PACKAGE(OTHER-EGYPT SPEC

main85222-60330iGDJ250..LHD..GEN;TJA250..(A,L)..GCC;TJA250,TRJ250..LHD..(R,U)..(GCC,GEN)202401

DESTINATION PACKAGE(OTHER

main85222-60330iGDJ250..LHD..GEN;TJA250..(A,L)..GCC;TJA250,TRJ250..LHD..(R,U)..(GCC,GEN)202401

DESTINATION PACKAGE(OTHER-COLOMBIA SPEC

main85222-60330iGDJ250..LHD..GEN;TJA250..(A,L)..GCC;TJA250,TRJ250..LHD..(R,U)..(GCC,GEN)202401

DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iGDJ250..RHD..EUR202401-202509

89941SENSOR, RAIN

main89941-78020iGDJ250..EUR;GDJ251..A,L,R202407

89944TAPE, RAIN SENSOR

main89944-42020iGDJ250..EUR;GDJ251..A,L,R202407

9011906864

main90119-06864

9014860091

main90148-60091

9413060600

main94130-60600

15 parts on this diagram · 2 diagrams in section
