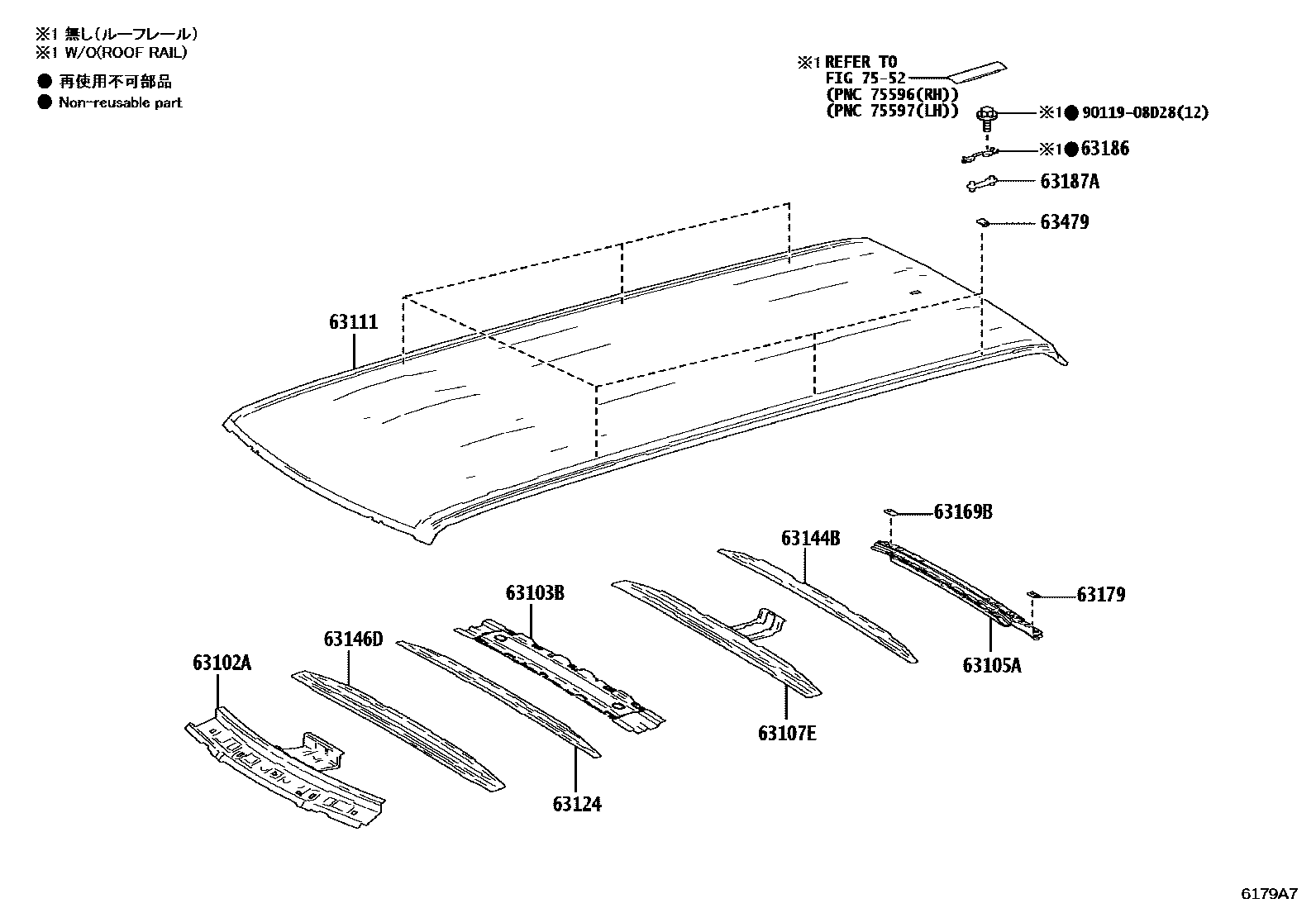

Toyota LAND CRUISER PRADO — ROOF PANEL & BACK PANEL

0001 1ROOF PANEL(NORMAL ROOF) 0002 1ROOF PANEL(MOON ROOF) 0003 1ROOF PANEL(PANORAMA ROOF) 0004 1MOON ROOF 0005 1PANORAMA ROOF 0006 1ROOF RAIL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60902iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

63103BREINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-60090iGDJ250..RHD..EUR202401-202509

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60320iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

63107EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5

main63107-60060iGDJ250..RHD..EUR202401-202509

63111PANEL, ROOF

main63111-60A60iTJA250..L;GDJ250..L..RUS;GDJ250..LHD..(A,L)..EUR;GDJ251,TRJ250..ARL,GCC,GEN;GDJ250..(A,L,R)..(GCC,GEN,SA)202401-202509

BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR)

main63111-60A60iTJA250..L;GDJ250..L..RUS;GDJ250..LHD..(A,L)..EUR;GDJ251,TRJ250..ARL,GCC,GEN;GDJ250..(A,L,R)..(GCC,GEN,SA)202401

BACK DOOR-HATCH DOOR,W(HANDS FREE POWER BACK DOOR)

main63111-60A60iGDJ250..RHD..(A,L)..EUR202401-202509

BACK DOOR-HATCH DOOR TYPE

main63111-60B00iTRJ250..RUS;TJA250..A,R,U;GDJ250..(A,R)..RUS;GDJ250..LHD..(R,U)..EUR;GDJ250..U..(GCC,GEN,RUS)202401-202509

63124REINFORCEMENT, ROOF PANEL, NO.1

main63123-60100iGDJ250..RHD..EUR202401-202509

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-60090iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

63146DREINFORCEMENT, ROOF PANEL, NO.6

main63128-60040iGDJ250..RHD..EUR202401-202509

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-47010iGDJ250..RHD..EUR202401-202509

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-47010iGDJ250..RHD..EUR202401-202509

63186BRACKET, ROOF RACK, FRONT

main63185-42020iGDJ250..RHD..EUR202401-202509

63187ABRACKET, ROOF RACK, REAR

main63187-35020iGDJ250..RHD..EUR202401-202509

63479RETAINER, ROOF INNER RACK

main63479-48010iGDJ250..RHD..EUR202401-202509

7552

9011908D28

main90119-08D28

15 parts on this diagram · 6 diagrams in section
