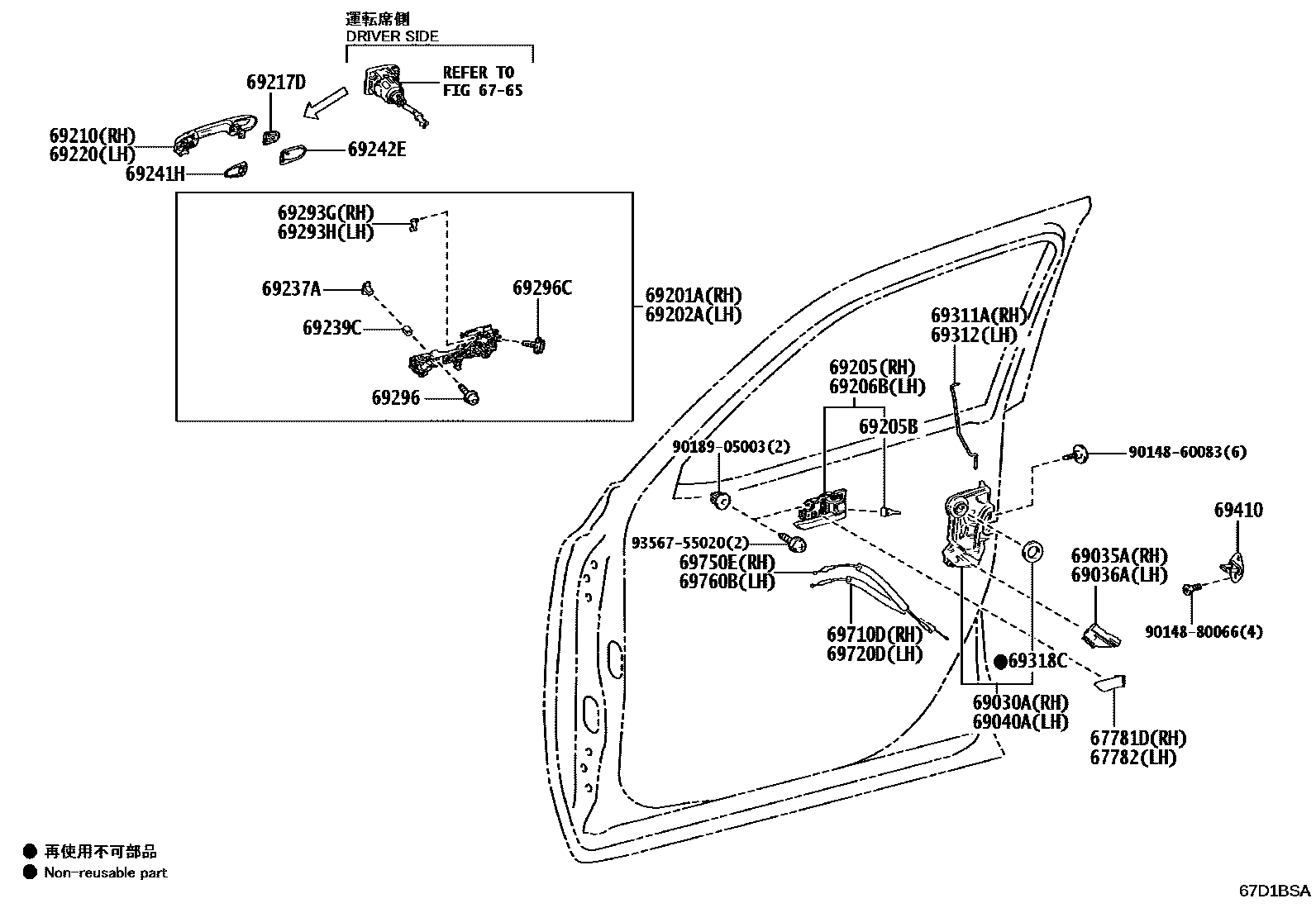

Toyota LAND CRUISER PRADO — FRONT DOOR LOCK & HANDLE

6765

67781DCOVER, FRONT DOOR TRIM, UPPER RH

main67781-60570-C0iGDJ250..RHD..A..EUR202401-202509

BLACK,TRIM2#

main67781-60570-C0iGDJ250..RHD..A..EUR202401-202509

BLACK,TRIM2#,4#

main67781-60570-C0iGDJ250..RHD..A..EUR202401-202509

BLACK,TRIM1#,2#

main67781-60570-C0iGDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA)202401

BLACK,TRIM1#,2#,4#

67782COVER, FRONT DOOR TRIM, UPPER LH

main67782-60600-C0iGDJ250..LHD..U..EUR;GDJ25#,TJA250,TRJ250..U..(ARL,GCC,GEN,RUS)202401-202509

BLACK,TRIM2#,4#

main67782-60600-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM2#

main67782-60600-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM1#,2#

main67782-60600-C0iGDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA)202401

BLACK,TRIM1#,2#,4#

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-28190iGDJ25#,TRJ250..RHD..(ARL,GEN)202401

main69030-42280iGDJ250..LHD..EUR202407

main69030-42290iGDJ250,TJA250,TRJ250..LHD..(GCC,GEN)202401

main69030-60340iGDJ250..SA202401-202509

main69030-60350iGDJ250,TJA250,TRJ250..RUS202401

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-28010iGDJ250..RHD..EUR202401-202509

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-28010iGDJ250..RHD..EUR202401-202509

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-28220iGDJ25#,TRJ250..RHD..(ARL,GEN)202401

main69040-42310iGDJ250,TJA250,TRJ250..LHD..(EUR,GCC,GEN)202401

main69040-60310iGDJ250..SA202401

main69040-60320iGDJ250,TJA250,TRJ250..RUS202401

main69040-60340iGDJ250..RHD..EUR202407-202509

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-60120iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

main69201-60140iGDJ250..RHD..EUR202407-202509

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-60060iGDJ250..RHD..EUR202401-202509

main69202-60100iGDJ250,TJA250,TRJ250..RUS202401

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-15010-C1iGDJ250..RHD..R..EUR202401-202509

BLACK,TRIM2#

main69205-15010-C1iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM1#,2#,4#

main69205-33140-C0iGDJ250..LHD..R..EUR;GDJ25#,TJA250,TRJ250..R..(ARL,GCC,GEN,RUS,SA)202401-202509

HIGH GRADE PACKAGE FOR AR,BLACK,TRIM1#,2#,4#

main69205-33140-C0iGDJ250..RHD..A..EUR202401-202509

BLACK,TRIM2#,4#

main69205-33140-C0iGDJ250..RHD..A..EUR202401-202509

MIDDLE GRADE PACKAGE FOR AR,BLACK,TRIM1#,2#,4#

main69205-33140-C0iGDJ250..RHD..L..EUR202404-202509

BLACK,TRIM1#,2#,4#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-15010-C1iGDJ250..RHD..R..EUR202401-202509

BLACK,TRIM2#

main69206-15010-C1iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM1#,2#,4#

main69206-33150-C0iGDJ250..RHD..R..EUR202401-202509

HIGH GRADE PACKAGE FOR AR,BLACK,TRIM1#,2#,4#

main69206-33150-C0iGDJ250..RHD..L..EUR202404-202509

BLACK,TRIM1#,2#,4#

main69206-33150-C0iGDJ250..RHD..A..EUR202401-202509

BLACK,TRIM2#,4#

main69206-33150-C0iGDJ250..LHD..R..EUR;GDJ251,TJA250,TRJ250..R;GDJ250..8FC..R..(GCC,GEN,RUS,SA)202401-202509

MIDDLE GRADE PACKAGE FOR AR,BLACK,TRIM1#,2#,4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-60220-A0iGDJ250..RHD..R..EUR202401-202509

SUPER WHITE 2,040

main69210-60220-A1iGDJ25#,TRJ250..RHD..(L,R)..(ARL,GEN,SA)202401-202509

PLATINUM WHITE PEARL MC.,089

main69210-60220-B0iGDJ250..RHD..R..EUR202401-202509

DK.GRAY,1L7

main69210-60220-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,202

main69210-60220-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,040 ,202 ,4V8

main69210-60220-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,040 ,089 ,1L7 ,202 ,218 ,2ZC ,2ZD ,4V8 ,5C8 ,8X0

main69210-60220-C0iGDJ25#..RHD..U..(ARL,GEN)202401

BLACK,089 ,202 ,4V8 ,5C8 ,8X0

main69210-60220-C1iGDJ25#,TRJ250..RHD..(A,L,R)..(ARL,GEN,SA)202401-202509

ATTITUDE BLACK MC.,218

main69210-60220-E0iGDJ25#,TRJ250..RHD..(L,R)..(ARL,GEN,SA)202401-202509

AVANT-GARDE BRONZE ME.,4V8

main69210-60230-A0iGDJ250,TJA250,TRJ250..LHD..R202401

SUPER WHITE 2,040

main69210-60230-A1iGDJ250,TJA250,TRJ250..LHD..(L,R)202401

PLATINUM WHITE PEARL MC.,089

main69210-60230-B0iGDJ250,TJA250,TRJ250..LHD..R202401

DK.GRAY,1L7

main69210-60230-C0iGDJ250,TRJ250..LHD..U..GEN202401

BLACK,040 ,202 ,4V8

main69210-60230-C0iGDJ250,TJA250..LHD..A202401

BLACK,040 ,089 ,1L7 ,202 ,218 ,2ZC ,2ZD ,4V8 ,5C8 ,8X0

main69210-60230-C0iGDJ250,TJA250..LHD..A202401

BLACK,089 ,202 ,4V8 ,5C8 ,8X0

main69210-60230-C0iGDJ250,TJA250..LHD..A202401

BLACK,202

main69210-60230-C0iGDJ250,TJA250..LHD..A202401

WIRELESS DOOR LOCK-SMART ENTRY,BLACK,040 ,202 ,4V8

main69210-60230-C0iGDJ250,TJA250..LHD..A202401

WIRELESS DOOR LOCK-SMART ENTRY(PANIC),BLACK,040 ,202 ,4V8

main69210-60230-C1iGDJ250,TJA250,TRJ250..LHD..(A,L,R)202401

ATTITUDE BLACK MC.,218

main69210-60230-E0iGDJ250,TJA250,TRJ250..LHD..(L,R)202401

AVANT-GARDE BRONZE ME.,4V8

main69211-60160iGDJ250,TRJ250..LHD..U..GEN202401

NO PAINT REQ.

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-60280iGDJ250..RHD..EUR202401-202509

BLACK

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-60220-A0iGDJ250,TJA250,TRJ250..LHD..R202401

SUPER WHITE 2,040

main69210-60220-A1iGDJ250,TJA250,TRJ250..LHD..(L,R)202401

PLATINUM WHITE PEARL MC.,089

main69210-60220-B0iGDJ250,TJA250,TRJ250..LHD..R202401

DK.GRAY,1L7

main69210-60220-C0iGDJ250,TJA250..LHD..A202401

WIRELESS DOOR LOCK-SMART ENTRY,BLACK,040 ,202 ,4V8

main69210-60220-C0iGDJ250,TJA250..LHD..A202401

BLACK,040 ,089 ,1L7 ,202 ,218 ,2ZC ,2ZD ,4V8 ,5C8 ,8X0

main69210-60220-C0iGDJ250,TJA250..LHD..A202401

BLACK,089 ,202 ,4V8 ,5C8 ,8X0

main69210-60220-C0iGDJ250,TJA250..LHD..A202401

BLACK,040 ,202 ,4V8

main69210-60220-C0iGDJ250,TJA250..LHD..A202401

BLACK,202

main69210-60220-C0iGDJ250,TJA250..LHD..A202401

WIRELESS DOOR LOCK-SMART ENTRY(PANIC),BLACK,040 ,202 ,4V8

main69210-60220-C1iGDJ250,TJA250,TRJ250..LHD..(A,L,R)202401

ATTITUDE BLACK MC.,218

main69210-60220-E0iGDJ250,TJA250,TRJ250..LHD..(L,R)202401

AVANT-GARDE BRONZE ME.,4V8

main69210-60230-A0iGDJ25#,TRJ250..RHD..R..(ARL,GEN,SA)202401-202509

SUPER WHITE 2,040

main69210-60230-A1iGDJ250..RHD..(L,R)..EUR202401-202509

PLATINUM WHITE PEARL MC.,089

main69210-60230-B0iGDJ25#,TRJ250..RHD..R..(ARL,GEN,SA)202401-202509

DK.GRAY,1L7

main69210-60230-C0iGDJ250..RHD..A..EUR202401-202509

BLACK,040 ,089 ,1L7 ,202 ,218 ,2ZC ,2ZD ,4V8 ,5C8 ,8X0

main69210-60230-C0iGDJ25#..RHD..A..(ARL,GEN,SA)202401-202509

BLACK,040 ,202 ,4V8

main69210-60230-C0iGDJ250..RHD..6FC..R;GDJ251,TRJ250..RHD..R202401

BLACK,089 ,202 ,4V8 ,5C8 ,8X0

main69210-60230-C0iGDJ250..RHD..6FC..R;GDJ251,TRJ250..RHD..R202401-202509

BLACK,202

main69210-60230-C1iGDJ250..RHD..(A,L,R)..EUR202401-202509

ATTITUDE BLACK MC.,218

main69210-60230-E0iGDJ25#,TRJ250..RHD..(L,R)..(ARL,GEN,SA)202401-202509

AVANT-GARDE BRONZE ME.,4V8

main69211-60170iGDJ250,TRJ250..LHD..U..GEN202401

NO PAINT REQ.

69237ANUT, FRONT DOOR HANDLE

main69237-60010iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

69239CBUSH, FRONT DOOR HANDLE

main69239-60020iGDJ250..RHD..EUR202401-202509

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-60080iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-60090iGDJ250..RHD..EUR202401-202509

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-33030iGDJ250..RHD..EUR202401-202509

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-33040iGDJ250..RHD..EUR202401-202509

69296SCREW, DOOR INSIDE HANDLE

main90148-50006iGDJ250..RHD..EUR202401-202509

69296CSCREW, DOOR INSIDE HANDLE

main90148-50003iGDJ250,TJA250,TRJ250..RUS202401

RH

main90148-50003iGDJ250..RHD..EUR202407-202509

DESTINATION PACKAGE(ERP)-CYPRUS SPEC

main90148-50003iGDJ250..RHD..EUR202407-202509

LH

main90148-50003iGDJ250..RHD..EUR202407-202509

DESTINATION PACKAGE(ERP)-CYPRUS SPEC&DIGITAL KEY-WITH

main90148-50003iGDJ250..RHD..EUR202407-202509

DESTINATION PACKAGE(ERP)-MALTA SPEC

main90148-50008iGDJ250..RHD..EUR202407-202509

RH

main90148-50008iGDJ250,TJA250,TRJ250..RUS202401

LH

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-60100iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-60100iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iGDJ250..RHD..EUR202401-202509

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-60080iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-60080iGDJ250..RHD..EUR202401-202509

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-60090iGDJ250..RHD..EUR202401-202509

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-60090iGDJ250..RHD..EUR202401-202509

9014860083

main90148-60083

9014880066

main90148-80066

9018905003

main90189-05003

9356755020

main93567-55020

35 parts on this diagram · 1 diagram in section
