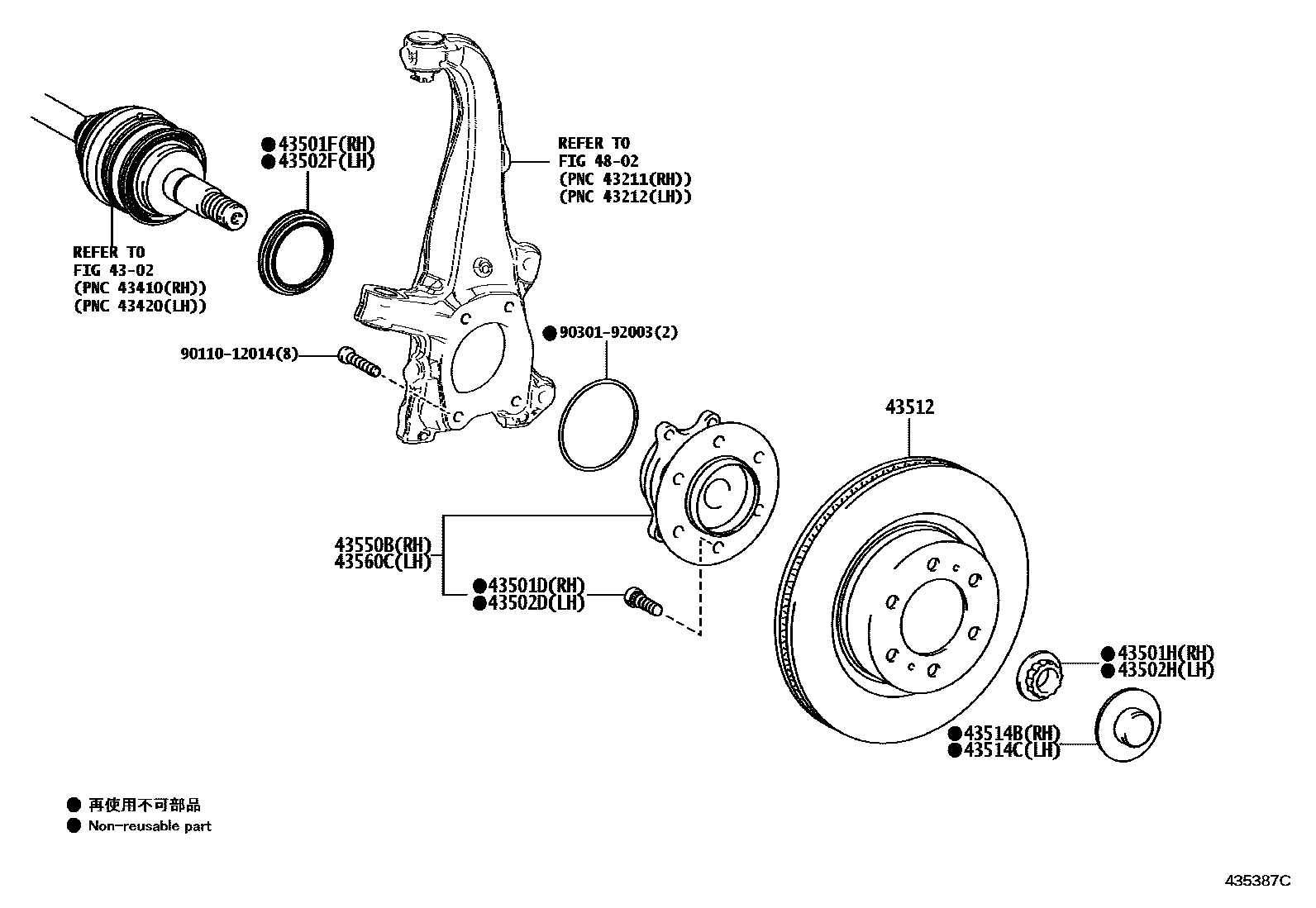

Toyota LAND CRUISER PRADO — FRONT AXLE HUB

4302

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02083iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90316-72002iGDJ250..RHD..EUR202401-202509

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-28001iGDJ250..RHD..EUR202401-202509

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02083iGDJ250..RHD..EUR202401-202509

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90316-72002iGDJ250..RHD..EUR202401-202509

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-28001iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

43512DISC, FRONT

main43512-60281iTJA250,TRJ250202401

main43512-60290iGDJ250..RHD..EUR202401-202509

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-60030iGDJ250..RHD..EUR202401-202509

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-60030iGDJ250..RHD..EUR202401-202509

43550BHUB & BEARING ASSY, FRONT AXLE W/ABS SENSOR, RH

main43550-60050iGDJ250..RHD..EUR202401-202509

43560CHUB & BEARING ASSY, FRONT AXLE W/ABS SENSOR, LH

main43550-60050iGDJ250..RHD..EUR202401-202509

4802

9011012014

main90110-12014

9030192003

main90301-92003

15 parts on this diagram · 1 diagram in section
