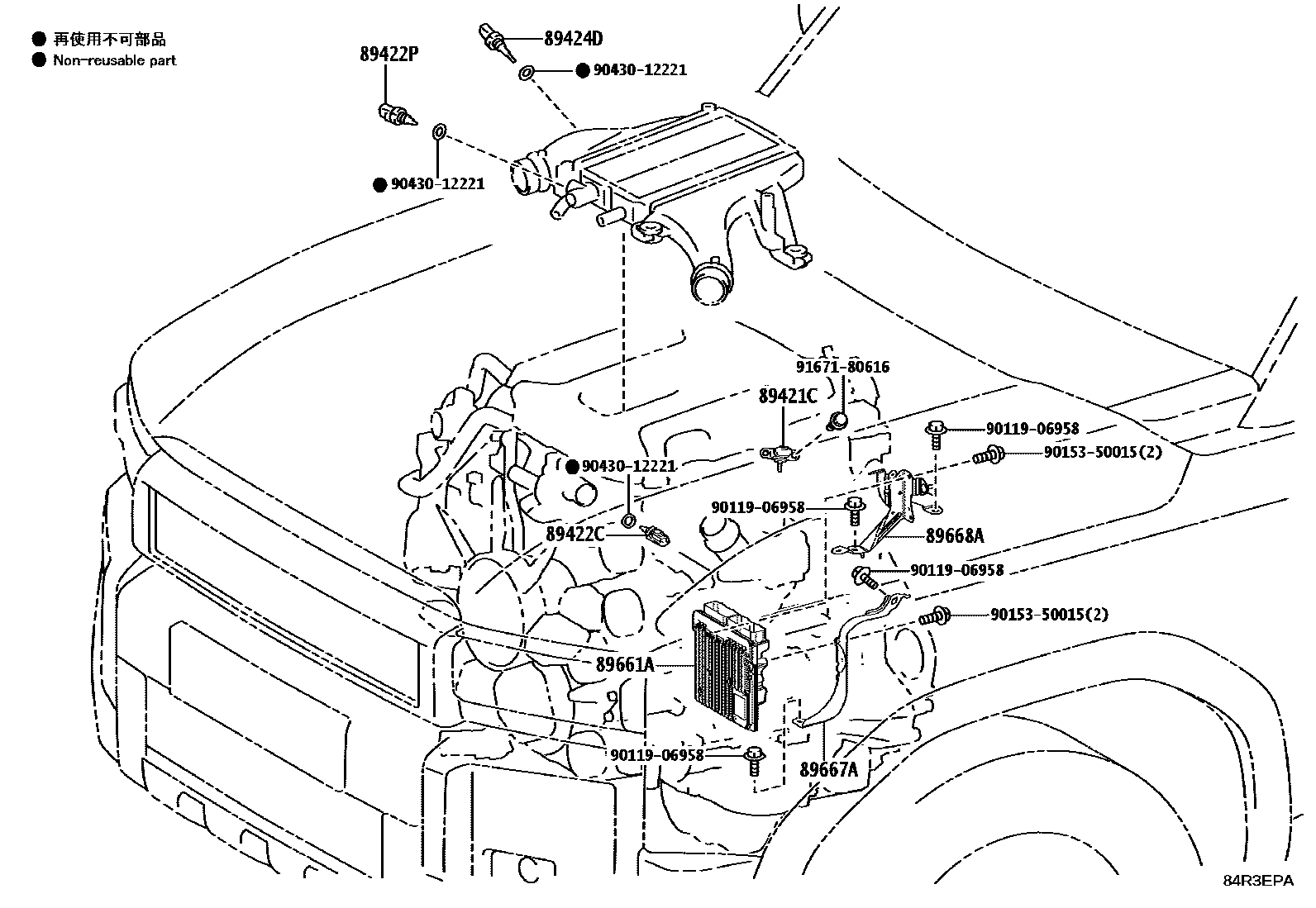

Toyota LAND CRUISER PRADO — ELECTRONIC CONTROLED DIESEL (ECD)

0001 1EURO6 0002 1EXCEPT EURO6

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-71030iGDJ250..RHD..EUR202401-202509

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iGDJ250..RHD..EUR202401-202509

89422PSENSOR, WATER TEMPERATURE

main89422-33030iGDJ250..RHD..EUR202407-202509

89424DSENSOR, INLET AIR TEMPERATURE

main89424-60020iGDJ250..RHD..EUR202407-202509

89661ACOMPUTER, ENGINE CONTROL

main89661-6A430iGDJ250..R..GCC202401

DENSO,*614

main89661-6A430iGDJ250..8FC..(GEN,SA)202401

DENSO,EXHAUST EMISSION CONTROL-EURO0, WITHOUT(ON BOARD DIAGNOSIS),*614

main89661-6A430iGDJ250..8FC..(GEN,SA)202401

DENSO,EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS),*614

main89661-6A430iGDJ250..8FC..(GEN,SA)202401

DENSO,EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS),*614

main89661-6A490iGDJ250..6FC202405

DENSO,*614

main89666-60X30iGDJ25#..ARL,GCC,RUS202401

DENSO

main89666-60X30iGDJ25#..ARL,GCC,RUS202401

DENSO,EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)

main89666-60X40iGDJ250..LHD..EUR202407-202509

DENSO

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-60310iGDJ250..RHD..EUR202401-202509

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60330iGDJ250..RHD..EUR202401-202509

9011906958

main90119-06958

9015350015

main90153-50015

9043012221

main90430-12221

9167180616

main91671-80616

11 parts on this diagram · 2 diagrams in section
