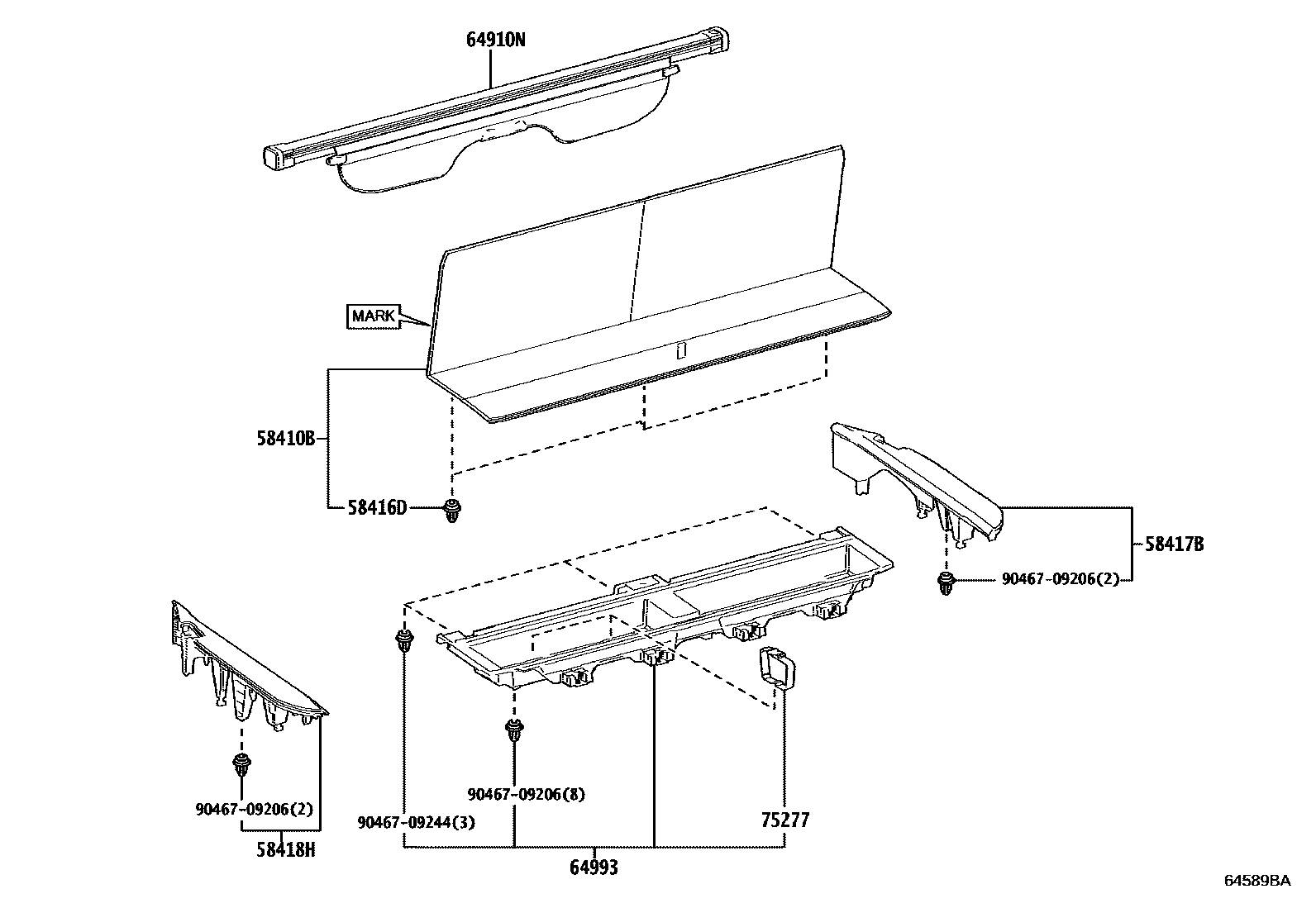

Toyota LAND CRUISER PRADO — DECK BOARD & DECK TRIM COVER

0001 1REAR SEAT(6:4TUMBLE&5:5DOUBLE0002 1REAR SEAT(6:4 TUMBLE SEAT) 0003 1REAR SEAT(6:4 TUMBLE & 5:5) 0004 1REAR SEAT(6:4 TUMBLE SEAT)

58410BBOARD ASSY, DECK

main58410-60050-C2iGDJ250..RHD..L..EUR202404-202509

BLACK,TRIM1#,2#,MARK=58410-60050

main58410-60060-C2iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM2#,MARK=58410-60060

main58410-60060-C2iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM2#,4#,MARK=58410-60060

main58410-60060-C2iGDJ250..RHD..A..EUR202401-202509

BLACK,TRIM1#,2#,MARK=58410-60060

main58410-60060-C2iGDJ250..LHD..U..EUR;GDJ250,TJA250,TRJ250..U..(GCC,GEN,RUS)202401

BLACK,TRIM1#,2#,4#,MARK=58410-60060

main58410-60080-C2iGDJ251..L202408

REAR SEAT-6:4 TUMBLE SEAT,BLACK,TRIM2#,4#,MARK=58410-60080

main58410-60080-C2iGDJ251..R202408

BLACK,TRIM1#,2#,MARK=58410-60080

main58410-60080-C2iGDJ251..R202408

BLACK,TRIM2#,MARK=58410-60080

main58410-60080-C2iGDJ251..R202408

FRONT SEAT-*DRS:POWER(8WAY)&MEMORY&MANUAL CUSHION,BLACK,TRIM1#,2#,MARK=58410-60080

main58410-60090-C2iGDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404-202509

BLACK,TRIM1#,2#,MARK=58410-60090

main58410-60100-C2iGDJ250..LHD..A..EUR;GDJ250,TJA250..A..(GCC,GEN,RUS,SA)202401-202509

BLACK,TRIM2#,MARK=58410-60100

main58410-60100-C2iGDJ250,TRJ250..6FC..R;GDJ250,TJA250..R..RUS202401

BLACK,TRIM1#,2#,4#,MARK=58410-60100

main58410-60100-C2iGDJ250,TRJ250..6FC..R;GDJ250,TJA250..R..RUS202401-202509

BLACK,TRIM2#,4#,MARK=58410-60100

main58410-60100-C2iGDJ250,TRJ250..6FC..R;GDJ250,TJA250..R..RUS202401-202509

BLACK,TRIM1#,2#,MARK=58410-60100

main58410-60120-C2iGDJ251..L202408

FRONT SEAT-*DRS:POWER(8WAY)&MEMORY&MANUAL CUSHION,BLACK,TRIM1#,2#,MARK=58410-60120

main58410-60120-C2iGDJ251..R202408

BLACK,TRIM2#,MARK=58410-60120

main58410-60120-C2iGDJ251..R202408

REAR SEAT-6:4 TUMBLE SEAT,BLACK,TRIM2#,4#,MARK=58410-60120

main58410-60120-C2iGDJ251..U202408

BLACK,TRIM1#,2#,MARK=58410-60120

58416DCLIP, REAR FLOOR BOARD

main62217-13010iGDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404-202509

main90467-10161iGDJ251..A202408

REAR SEAT-6:4 TUMBLE SEAT

main90467-10161iGDJ251..R,U202408

FRONT SEAT-*DRS:POWER(8WAY)&MEMORY&MANUAL CUSHION

main90467-10188iGDJ250..RHD..(A,R,U)..EUR202401-202509

58417BBOARD, REAR FLOOR, REAR RH

main58417-60090-C3iGDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404-202509

BLACK,TRIM1#,2#

main58417-60100-C2iGDJ250..RHD..R..EUR202401-202509

BLACK,TRIM2#

main58417-60100-C2iGDJ250..RHD..R..EUR202401-202509

BLACK,TRIM1#,2#

main58417-60100-C2iGDJ250..RHD..R..EUR202401-202509

BLACK,TRIM2#,4#

main58417-60100-C2iGDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA)202401

BLACK,TRIM1#,2#,4#

main58417-60110-C2iGDJ251..L202408

BLACK,TRIM2#,4#

main58417-60110-C2iGDJ251..L202408

REAR SEAT-6:4 TUMBLE & 5:5,BLACK,TRIM1#,2#

main58417-60110-C2iGDJ251..A202408

BLACK,TRIM1#,2#

58418HBOARD, REAR FLOOR, REAR LH

main58418-60050-C3iGDJ250..RHD..L..EUR202404-202509

BLACK,TRIM1#,2#

main58418-60060-C2iGDJ250..RHD..R..EUR202401-202509

BLACK,TRIM2#,4#

main58418-60060-C2iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM1#,2#

main58418-60060-C2iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM2#

main58418-60060-C2iGDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA)202401

BLACK,TRIM1#,2#,4#

main58418-60070-C2iGDJ251..L202408

BLACK,TRIM1#,2#

main58418-60070-C2iGDJ251..L202408

BLACK,TRIM2#,4#

main58418-60070-C2iGDJ251..L202408

REAR SEAT-6:4 TUMBLE & 5:5,BLACK,TRIM1#,2#

64910NCOVER ASSY, TONNEAU

64993BOX, DECK FLOOR, REAR

main64991-60030iGDJ250..LHD..(A,R,U)..EUR;GDJ250,TJA250,TRJ250..(A,R,U)..(GCC,GEN,RUS,SA)202401-202509

main64991-60040-C0iGDJ251..A202408

REAR SEAT-6:4 TUMBLE SEAT,BLACK

main64991-60040-C0iGDJ251..A202408

BLACK

main64991-60040-C0iGDJ251..R,U202408

FRONT SEAT-*DRS:POWER(8WAY)&MEMORY&MANUAL CUSHION,BLACK

main64993-60010iGDJ251..L202408

HIGH GRADE PACKAGE FOR LUX&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY&MANUAL CUSHION

main64993-60010iGDJ251..R202408

REAR SEAT-6:4 TUMBLE & 5:5

main64993-60020iGDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404-202509

75277BAND, TOOL, NO.1

main64279-60030iGDJ250..RHD..EUR202401-202509

main64279-60030iGDJ251..A,L202408

HIGH GRADE PACKAGE FOR LUX&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY&MANUAL CUSHION

main64279-60030iGDJ251..A,L202408

REAR SEAT-6:4 TUMBLE & 5:5

main64279-60030iGDJ251..A,L202408

FRONT SEAT-*DRS:POWER(8WAY)&MEMORY&MANUAL CUSHION

main64279-60030iGDJ251..A,L202408

REAR SEAT-6:4 TUMBLE SEAT

9046709206

main90467-09206

9046709244

main90467-09244

9 parts on this diagram · 4 diagrams in section
