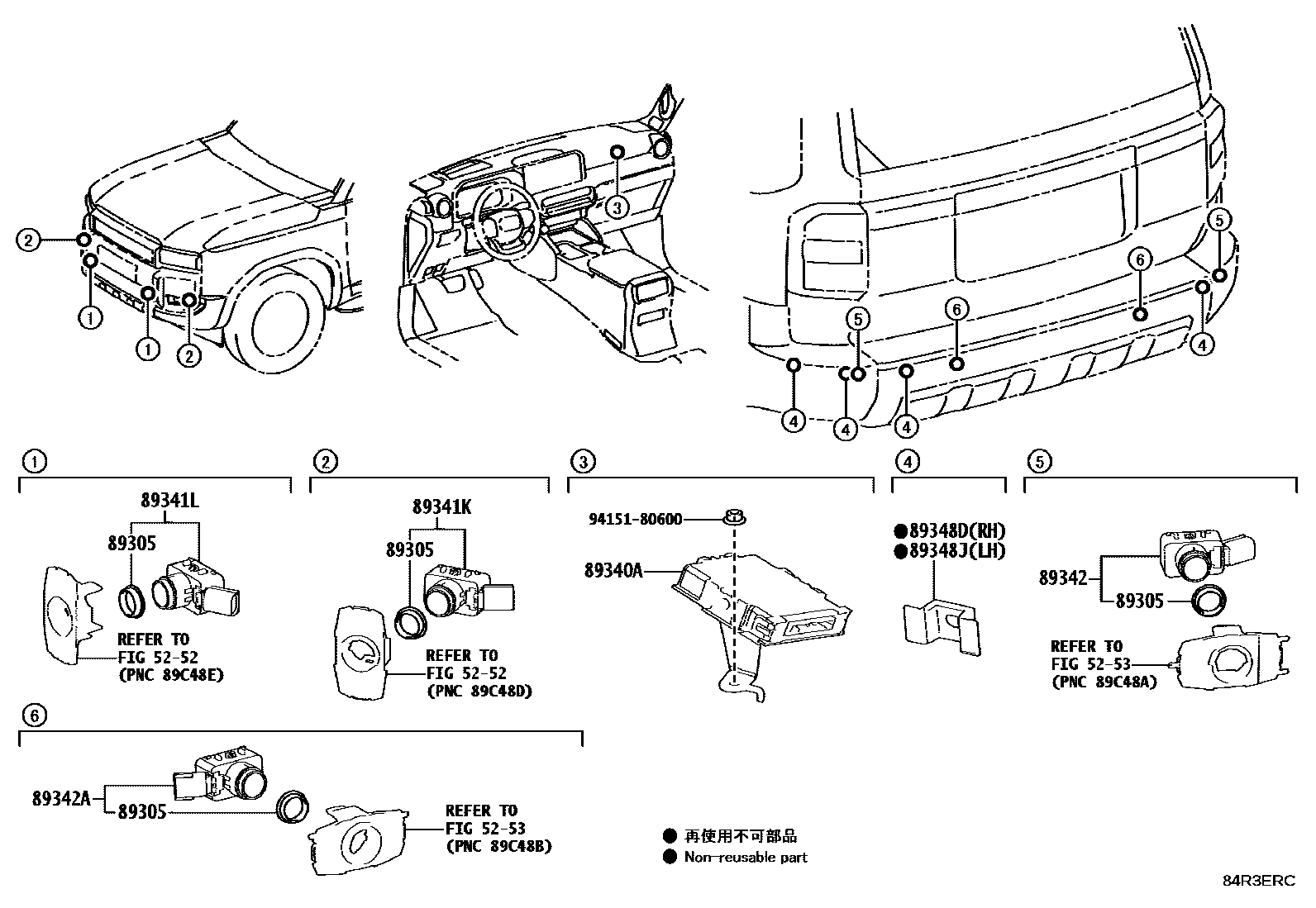

Toyota LAND CRUISER PRADO — CLEARANCE & BACK SONAR
5252
5253
89305CUSHION SET, ULTRASONIC SENSOR
main89305-52010iTJA250..U..GCC;GDJ250..LHD..6FC..R;GDJ250..LHD..A..GEN;GDJ250..RHD..R..GEN;TRJ250..LHD..(GEN,RUS);TJA250..(A,R)..(GCC,GEN);GDJ250..(A,R,U)..(GCC,SA);GDJ250..LHD..8F202401
PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)
main89305-52010iTJA250..U..GCC;GDJ250..LHD..6FC..R;GDJ250..LHD..A..GEN;GDJ250..RHD..R..GEN;TRJ250..LHD..(GEN,RUS);TJA250..(A,R)..(GCC,GEN);GDJ250..(A,R,U)..(GCC,SA);GDJ250..LHD..8F202401
PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)
89340ACOMPUTER ASSY, CLEARANCE WARNING
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 14SPEAKER(JBL)&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)
HIGH GRADE PACKAGE FOR ADV&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)
AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)
PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)
HIGH GRADE PACKAGE FOR ADV&PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)
AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER&PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER&PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 14SPEAKER(JBL)&PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)
PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)
PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)
AUDIO(FOR OVERSEAS MARKET)-*DA(9INCH) & 6SPEAKER&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)
89341KSENSOR, ULTRASONIC, FRONT CORNER
DUMMY-MAT BLACK
PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4),DUMMY-MAT BLACK
PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4),DUMMY-MAT BLACK
main89341-K0060-A0iGDJ250..R..GEN;TJA250..A..GCC;TJA250..(A,R)..GEN;GDJ250..LHD..A..GEN;TRJ250..R..(GCC,GEN);GDJ250..(A,R)..(GCC,SA)202401
PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4),SUPER WHITE 2,040
sub89341-50080
main89341-K0060-A0iGDJ250..RHD..A..GEN;GDJ250..LHD..R..EUR;GDJ250..LHD..A..(EUR,RUS);GDJ251,TJA250..(A,R)..(ARL,RUS)202401
PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4),SUPER WHITE 2,040
sub89341-50080
main89341-K0060-A4iTJA250..R..GCC;TJA250..A..GEN;GDJ250..R..(GCC,RUS,SA);TRJ250..LHD..R..(GEN,RUS);GDJ250..LHD..8FC..(A,R)..GEN202401
PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4),PLATINUM WHITE PEARL MC.,089
sub89341-50080
main89341-K0060-A4iTJA250..R..GCC;TJA250..A..GEN;GDJ250..R..(GCC,RUS,SA);TRJ250..LHD..R..(GEN,RUS);GDJ250..LHD..8FC..(A,R)..GEN202401
PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4),PLATINUM WHITE PEARL MC.,089
sub89341-50080
main89341-K0060-A4iTJA250..R..GCC;TJA250..A..GEN;GDJ250..R..(GCC,RUS,SA);TRJ250..LHD..R..(GEN,RUS);GDJ250..LHD..8FC..(A,R)..GEN202401-202509
PLATINUM WHITE PEARL MC.,089
sub89341-50080
main89341-K0060-C1iGDJ250..LHD..A..GEN;GDJ250..R..(GEN,RUS);GDJ250..(A,R)..(GCC,SA);TJA250..(A,R)..(GCC,GEN);TRJ250..LHD..R..(GEN,RUS)202401
PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4),BLACK,202
sub89341-50080
main89341-K0060-C1iGDJ250..RHD..A..GEN;GDJ250..LHD..R..EUR;GDJ250..LHD..A..(EUR,RUS);GDJ251,TJA250..(A,R)..(ARL,RUS)202401-202509
BLACK,202
sub89341-50080
main89341-K0060-C1iGDJ250..RHD..A..GEN;GDJ250..LHD..R..EUR;GDJ250..LHD..A..(EUR,RUS);GDJ251,TJA250..(A,R)..(ARL,RUS)202401
PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4),BLACK,202
sub89341-50080
main89341-K0060-C5iTJA250..R..GCC;TJA250..A..GEN;GDJ250..R..(GCC,RUS,SA);TRJ250..LHD..R..(GEN,RUS);GDJ250..LHD..8FC..(A,R)..GEN202401-202509
ATTITUDE BLACK MC.,218
sub89341-50080
main89341-K0060-C5iTJA250..R..GCC;TJA250..A..GEN;GDJ250..R..(GCC,RUS,SA);TRJ250..LHD..R..(GEN,RUS);GDJ250..LHD..8FC..(A,R)..GEN202401
PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4),ATTITUDE BLACK MC.,218
sub89341-50080
main89341-K0060-C5iTJA250..R..GCC;TJA250..A..GEN;GDJ250..R..(GCC,RUS,SA);TRJ250..LHD..R..(GEN,RUS);GDJ250..LHD..8FC..(A,R)..GEN202401
PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4),ATTITUDE BLACK MC.,218
sub89341-50080
main89341-K0060-E0iGDJ250..LHD..A..GEN;GDJ250..R..(GEN,RUS);GDJ250..(A,R)..(GCC,SA);TJA250..(A,R)..(GCC,GEN);TRJ250..LHD..R..(GEN,RUS)202401
PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4),AVANT-GARDE BRONZE ME.,4V8
sub89341-50080
main89341-K0060-E0iGDJ250..LHD..R..EUR;TJA250..L..(GCC,GEN);GDJ250..RHD..(A,L)..GEN;GDJ250..L..(GCC,RUS,SA);GDJ250..LHD..A..(EUR,RUS);GDJ250..LHD..L..(EUR,GEN);GDJ251,TJA250..(A,L,R).202401-202509
AVANT-GARDE BRONZE ME.,4V8
sub89341-50080
main89341-K0060-E0iGDJ250..LHD..R..EUR;TJA250..L..(GCC,GEN);GDJ250..RHD..(A,L)..GEN;GDJ250..L..(GCC,RUS,SA);GDJ250..LHD..A..(EUR,RUS);GDJ250..LHD..L..(EUR,GEN);GDJ251,TJA250..(A,L,R).202401
PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4),AVANT-GARDE BRONZE ME.,4V8
sub89341-50080
PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4),SAND,2ZC ,5C8
sub89341-50080
PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4),SAND,5C8
sub89341-50080
SAND,2ZC ,5C8
sub89341-50080
PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4),SAND,2ZC ,5C8
sub89341-50080
PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4),SAND,5C8
sub89341-50080
PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4),SMOKY BLUE,8X0
sub89341-50080
SMOKY BLUE,2ZD ,8X0
sub89341-50080
PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4),SMOKY BLUE,2ZD ,8X0
sub89341-50080
PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4),SMOKY BLUE,8X0
sub89341-50080
PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4),SMOKY BLUE,2ZD ,8X0
sub89341-50080
main89341-K0060-S6iGDJ250..A..(GCC,SA);GDJ250..LHD..A..GEN;TJA250..A..(GCC,GEN);GDJ250,TRJ250..R..RUS202401
PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4),DK.GRAY,1L7
sub89341-50080
main89341-K0060-S6iGDJ250..RHD..A..GEN;GDJ250..LHD..R..EUR;GDJ250..LHD..A..(EUR,RUS);GDJ251,TJA250..(A,R)..(ARL,RUS)202401
PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4),DK.GRAY,1L7
sub89341-50080
main89341-K0060-S6iGDJ250..RHD..A..GEN;GDJ250..LHD..R..EUR;GDJ250..LHD..A..(EUR,RUS);GDJ251,TJA250..(A,R)..(ARL,RUS)202401-202509
DK.GRAY,1L7
sub89341-50080
89341LSENSOR, ULTRASONIC, FRONT CENTER
main89341-50080-C0iGDJ250..A..(GCC,SA);GDJ250..LHD..A..GEN;TJA250..A..(GCC,GEN);GDJ250,TRJ250..R..RUS202401
PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4),DUMMY-MAT BLACK
DUMMY-MAT BLACK
main89341-50080-C0iGDJ250..A..RUS;GDJ250..LHD..EUR;GDJ250..LHD..L..GEN;TJA250..L..(GCC,GEN);GDJ251,TJA250..ARL,RUS;GDJ250..L..(GCC,RUS,SA);GDJ250..RHD..(A,L)..GEN202401
PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4),DUMMY-MAT BLACK
89342SENSOR, ULTRASONIC, REAR CORNER
main89341-50080-C0iGDJ250..A..(GCC,SA);GDJ250..LHD..A..GEN;TJA250..A..(GCC,GEN);GDJ250,TRJ250..R..RUS202401
PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4),DUMMY-MAT BLACK
DUMMY-MAT BLACK
main89341-50080-C0iGDJ250..A..RUS;GDJ250..RHD..A..GEN;GDJ250..LHD..(A,R,U)..EUR;GDJ251,TJA250..(A,R,U)..(ARL,RUS)202401
PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4),DUMMY-MAT BLACK
AVANT-GARDE BRONZE ME.,4V8
sub89341-50080
89342ASENSOR, ULTRASONIC, REAR CENTER
main89341-50080-C0iTJA250..A..GEN;TJA250..(R,U)..GCC;TRJ250..LHD..(GEN,RUS);GDJ250..(R,U)..(GCC,RUS,SA);GDJ250..LHD..8FC..(A,R,U)..GEN202401
PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4),DUMMY-MAT BLACK
main89341-50080-C0iTJA250..A..GEN;TJA250..(R,U)..GCC;TRJ250..LHD..(GEN,RUS);GDJ250..(R,U)..(GCC,RUS,SA);GDJ250..LHD..8FC..(A,R,U)..GEN202401
PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4),DUMMY-MAT BLACK
main89341-50080-C0iTJA250..A..GEN;TJA250..(R,U)..GCC;TRJ250..LHD..(GEN,RUS);GDJ250..(R,U)..(GCC,RUS,SA);GDJ250..LHD..8FC..(A,R,U)..GEN202401-202509
DUMMY-MAT BLACK
89348DCLIP, ULTRASONIC SENSOR
BACK DOOR-HATCH DOOR,W(HANDS FREE POWER BACK DOOR)&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)
PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)
PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)
BACK DOOR-WITH(HANDS FREE POWER BACK DOOR)&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)
BACK DOOR-HATCH DOOR,W(HANDS FREE POWER BACK DOOR)&REAR FOG LAMP-WITH
REAR FOG LAMP-WITH
REAR FOG LAMP-WITH&PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)
REAR FOG LAMP-WITH&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)
BACK DOOR-WITH(POWER BACK DOOR)&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)
BACK DOOR-WITH(HANDS FREE POWER BACK DOOR)
BACK DOOR-WITH(HANDS FREE POWER BACK DOOR)&PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)
BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR)&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)
BACK DOOR-HATCH DOOR,W(HANDS FREE POWER BACK DOOR)
BACK DOOR-HATCH DOOR,W(HANDS FREE POWER BACK DOOR)&PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)
89348JCLIP, ULTRASONIC SENSOR
main89348-50050iGDJ251;GDJ250..L..SA;GDJ250..RHD..(R,U)..EUR;GDJ250,TJA250..LHD..L..GEN;GDJ250..RHD..(A,L)..(EUR,GEN)202401
REAR FOG LAMP-WITHOUT&PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)
main89348-50050iGDJ251;GDJ250..L..SA;GDJ250..RHD..(R,U)..EUR;GDJ250,TJA250..LHD..L..GEN;GDJ250..RHD..(A,L)..(EUR,GEN)202401
PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)
main89348-50050iGDJ251;GDJ250..L..SA;GDJ250..RHD..(R,U)..EUR;GDJ250,TJA250..LHD..L..GEN;GDJ250..RHD..(A,L)..(EUR,GEN)202401
PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)
main89348-50050iGDJ251;GDJ250..L..SA;GDJ250..RHD..(R,U)..EUR;GDJ250,TJA250..LHD..L..GEN;GDJ250..RHD..(A,L)..(EUR,GEN)202401
REAR FOG LAMP-WITH
main89348-50050iGDJ251;GDJ250..L..SA;GDJ250..RHD..(R,U)..EUR;GDJ250,TJA250..LHD..L..GEN;GDJ250..RHD..(A,L)..(EUR,GEN)202401
REAR FOG LAMP-WITH&PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)
main89348-50050iGDJ251;GDJ250..L..SA;GDJ250..RHD..(R,U)..EUR;GDJ250,TJA250..LHD..L..GEN;GDJ250..RHD..(A,L)..(EUR,GEN)202401
REAR FOG LAMP-WITH&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)
main89348-50050iGDJ251;GDJ250..L..SA;GDJ250..RHD..(R,U)..EUR;GDJ250,TJA250..LHD..L..GEN;GDJ250..RHD..(A,L)..(EUR,GEN)202401
REAR FOG LAMP-WITHOUT
9415180600
main94151-80600
11 parts on this diagram · 2 diagrams in section
