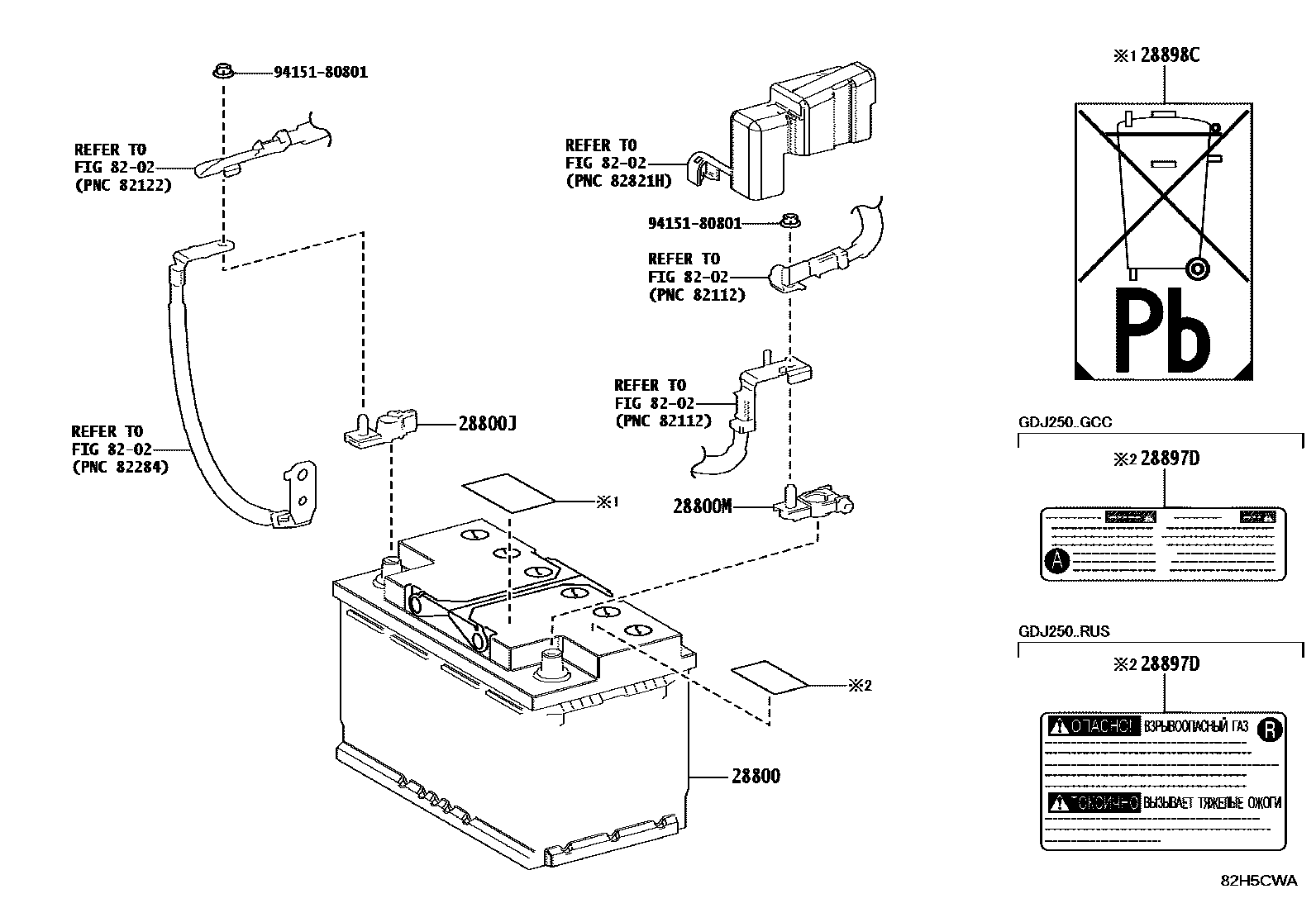

Toyota LAND CRUISER PRADO — BATTERY & BATTERY CABLE

0001 1 0002 1 0003 1 0004 1 0005 112V BATTERY 0006 1HV BATTERY

28800BATTERY

main28800-36132i2TRFE..TRJ250..GCC,GEN202401-202403

LN2

sub28800-36133

main28800-36133i2TRFE..TRJ250..GCC,GEN202404

LN2

main28800-38161i2TRFE..TRJ250..LHD..GEN202401-202405

LN3

sub28800-38162

main28800-38161i2TRFE..TRJ250..LHD..GEN202401-202404

LN3,COLD AREA SPEC

sub28800-38162

main28800-38162iT24..TJA250;2TRFE..TRJ250..RUS202405

LN3

main28800-38162i2TRFE..TRJ250..LHD..GEN202405

LN3,COLD AREA SPEC

main28800-38192i1GDFTV..GDJ250202401-202403

LN4

sub28800-38193

main28800-38193i1GDFTV..GDJ250..LHD..EUR;1GDFTV..GDJ25#..ARL,GCC,GEN,RUS,SA202404-202509

LN4

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059iT24,1GDFTV,2TRFE..GDJ250,TJA250,TRJ250202401

28800MTERMINAL, BATTERY POSITIVE

main90982-05069iT24,1GDFTV,2TRFE..GDJ250,TJA250,TRJ250..LHD202401

28897DLABEL, BATTERY CAUTION

main28897-36030iT24,1GDFTV..GDJ250,TJA250..GCC202401

DESTINATION PACKAGE(OTHER-EGYPT SPEC

main28897-36030iT24,1GDFTV..GDJ250,TJA250..GCC202401

DESTINATION PACKAGE(OTHER

main28897-38070iT24..TJA250..(A,L)..RUS;1GDFTV,2TRFE..GDJ250,TRJ250..RUS202401

DESTINATION PACKAGE(ERP)-MOLDOVA SPEC

main28897-38070iT24..TJA250..(A,L)..RUS;1GDFTV,2TRFE..GDJ250,TRJ250..RUS202401

DESTINATION PACKAGE(ERP)-TAJIKISTAN SPEC

main28897-38070iT24..TJA250..(A,L)..RUS;1GDFTV,2TRFE..GDJ250,TRJ250..RUS202401

DESTINATION PACKAGE(ERP)-UKRAINE SPEC

28898CPLATE, BATTERY

main28898-46020i1GDFTV..GDJ250..EUR202407-202412

8202

9415180801

main94151-80801

7 parts on this diagram · 6 diagrams in section
