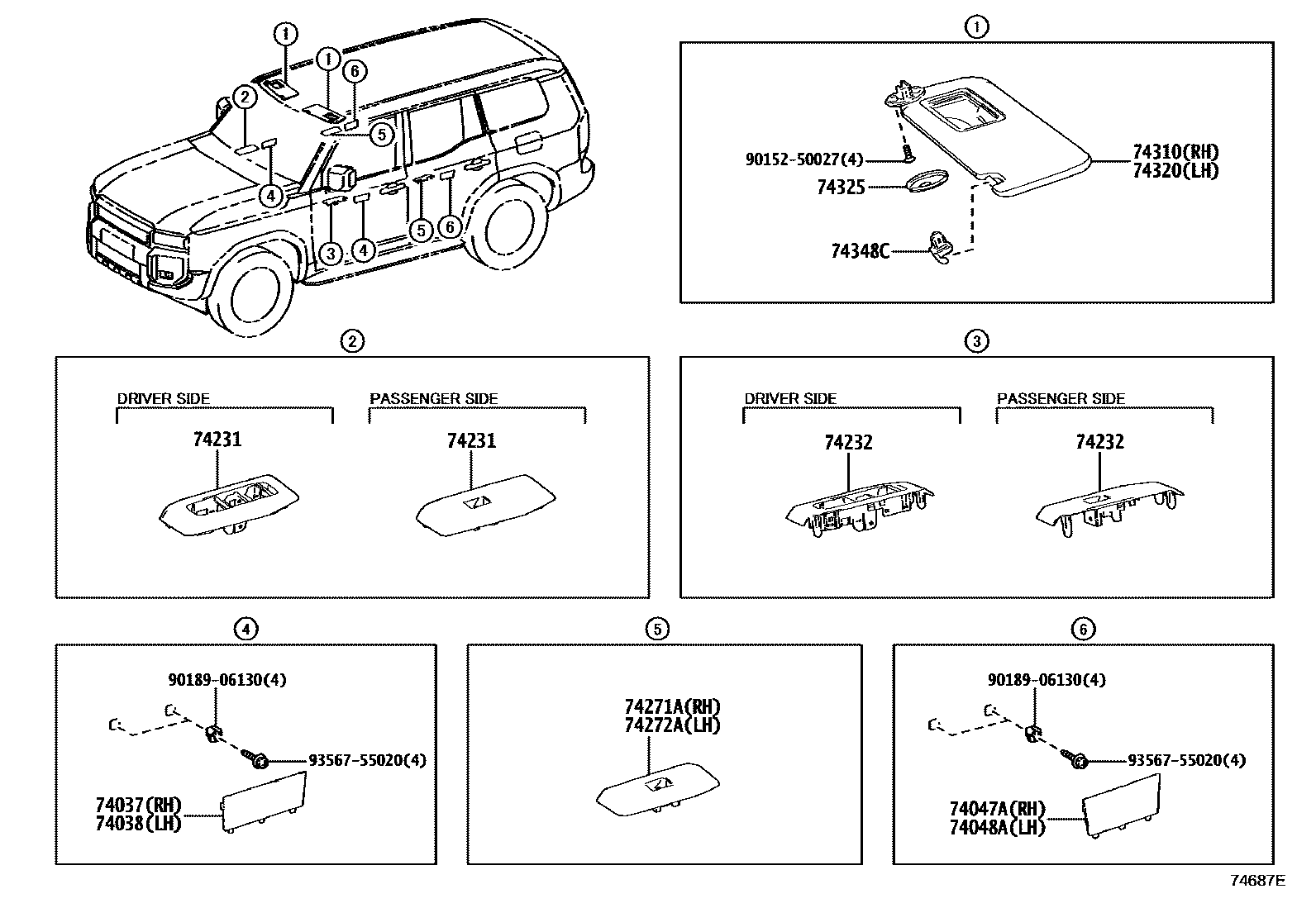

Toyota LAND CRUISER PRADO — ARMREST & VISOR

0001 1ARMREST & VISOR 0002 1ASSIST GRIP(DOOR & SIDE TRIM)0003 1ASSIST GRIP(ROOF)

74037COVER SUB-ASSY, FRONT DOOR ARMREST, RH

main74037-60040iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

74038COVER SUB-ASSY, FRONT DOOR ARMREST, LH

main74038-60040iGDJ250..RHD..EUR202401-202509

74047ACOVER SUB-ASSY, REAR DOOR ARMREST, RH

main74047-60020iGDJ250..RHD..EUR202401-202509

74048ACOVER SUB-ASSY, REAR DOOR ARMREST, LH

main74048-60020iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-60B40iGDJ250,TJA250..LHD..(A,L)202401

HIGH GRADE PACKAGE FOR AR

main74231-60B40iGDJ250,TJA250,TRJ250..LHD..R202401

MIDDLE GRADE PACKAGE FOR AR

main74231-60B60iGDJ250,TJA250,TRJ250..LHD..(R,U)202401

main74231-60B80iGDJ251,TRJ250..RHD..R;GDJ250..RHD..8FC..R..(GEN,SA)202401-202509

MIDDLE GRADE PACKAGE FOR AR

main74231-60B80iGDJ250..RHD..(A,L)..EUR202401-202509

HIGH GRADE PACKAGE FOR AR

main74231-60B90iGDJ250..RHD..(R,U)..EUR202401-202509

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-60A70iGDJ250,TJA250,TRJ250..LHD..R202401

MIDDLE GRADE PACKAGE FOR AR

main74232-60A70iTRJ250..LHD..R;GDJ250,TJA250..LHD..8FC..R202401

HIGH GRADE PACKAGE FOR AR

main74232-60A80iGDJ250,TJA250,TRJ250..LHD..(R,U)202401

main74232-60A90iGDJ251,TRJ250..RHD..R;GDJ250..RHD..8FC..R..(GEN,SA)202401-202509

HIGH GRADE PACKAGE FOR AR

main74232-60A90iGDJ251,TRJ250..RHD..R;GDJ250..RHD..8FC..R..(GEN,SA)202401-202509

MIDDLE GRADE PACKAGE FOR AR

main74232-60B00iGDJ250..RHD..(R,U)..EUR202401-202509

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-60500iGDJ250..LHD..(A,L)..EUR;GDJ25#,TJA250..(A,L)..(ARL,GCC,GEN,RUS,SA)202401-202509

HIGH GRADE PACKAGE FOR AR

main74271-60500iGDJ250..RHD..(A,L)..EUR202401-202509

MIDDLE GRADE PACKAGE FOR AR

main74271-60510iGDJ250..LHD..(R,U)..EUR;GDJ25#,TJA250,TRJ250..(R,U)..(ARL,GCC,GEN,RUS,SA)202401-202509

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-60500iGDJ250..RHD..(A,L)..EUR202401-202509

MIDDLE GRADE PACKAGE FOR AR

main74272-60500iGDJ250..RHD..R..EUR202401-202509

HIGH GRADE PACKAGE FOR AR

main74272-60510iGDJ250..LHD..(R,U)..EUR;GDJ25#,TJA250,TRJ250..(R,U)..(ARL,GCC,GEN,RUS,SA)202401-202509

74310VISOR ASSY, RH

main74310-60Q40-A0iGDJ250,TJA250..LHD..L..(EUR,GCC,GEN);GDJ250,TRJ250..LHD..6FC..R..(GCC,GEN)202401

FROMAGE,TRIM1#,4#

main74310-60Q40-A0iGDJ250,TJA250..LHD..8FC..R..(EUR,GCC,GEN)202401

FROMAGE,TRIM1#,40

main74310-60Q40-C0iGDJ250,TJA250..LHD..A..(EUR,GCC,GEN)202401

BLACK,TRIM2#,4#

main74310-60Q40-C0iGDJ250,TJA250..LHD..A..(EUR,GCC,GEN)202401

BLACK,TRIM2#

main74310-60Q40-C0iTJA250..L..GEN;TJA250..(L,U)..GCC;GDJ250..LHD..6FC..R;TRJ250..LHD..(GCC,GEN);GDJ250..LHD..(L,U)..(EUR,GCC,GEN)202401

BLACK,TRIM2#,41

main74310-60Q80-A0iGDJ250..RHD..(L,R)..EUR202401-202509

FROMAGE,TRIM1#

main74310-60Q80-C0iGDJ250..RHD..A..EUR202401-202509

BLACK,TRIM2#,4#

main74310-60Q80-C0iGDJ250..RHD..A..EUR202401-202509

BLACK,TRIM2#

main74310-60R60-A0iGDJ250,TJA250,TRJ250..(L,R)..RUS202401

FROMAGE,TRIM1#

main74310-60R60-A0iGDJ250,TJA250,TRJ250..(L,R)..RUS202401

DESTINATION PACKAGE(OTHER-COLOMBIA SPEC,FROMAGE,TRIM1#

main74310-60R60-C0iTJA250..U..GEN;GDJ250,TJA250,TRJ250..(L,R,U)..RUS202401

BLACK,TRIM2#

main74310-60R60-C0iTJA250..U..GEN;GDJ250,TJA250,TRJ250..(L,R,U)..RUS202401

BLACK,TRIM2#,4#

main74310-60R60-C0iTJA250..U..GEN;GDJ250,TJA250,TRJ250..(L,R,U)..RUS202401

DESTINATION PACKAGE(OTHER-COLOMBIA SPEC,BLACK,TRIM2#,4#

74320VISOR ASSY, LH

main74320-60L40-A0iGDJ250,TJA250..LHD..8FC..R..(EUR,GCC,GEN)202401

FROMAGE,TRIM1#,4#

main74320-60L40-A0iGDJ250,TJA250..LHD..L..(EUR,GCC,GEN);GDJ250,TRJ250..LHD..6FC..R..(GCC,GEN)202401

FROMAGE,TRIM1#,40

main74320-60L40-C0iGDJ250,TJA250..LHD..8FC..R..(EUR,GCC,GEN)202401

BLACK,TRIM2#,41

main74320-60L40-C0iGDJ250,TJA250..LHD..A..(EUR,GCC,GEN)202401

BLACK,TRIM2#,4#

main74320-60L40-C0iGDJ250,TJA250..LHD..A..(EUR,GCC,GEN)202401

BLACK,TRIM2#

main74320-60L60-A0iGDJ25#,TRJ250..RHD..(L,R)..(ARL,GEN,SA)202401-202509

FROMAGE,TRIM1#

main74320-60L60-C0iGDJ250..RHD..A..EUR202401-202509

BLACK,TRIM2#

main74320-60L60-C0iGDJ250..RHD..A..EUR202401-202509

BLACK,TRIM2#,4#

main74320-60M40-A0iGDJ250,TJA250,TRJ250..(L,R)..RUS202401

FROMAGE,TRIM1#

main74320-60M40-A0iGDJ250,TJA250,TRJ250..(L,R)..RUS202401

DESTINATION PACKAGE(OTHER-COLOMBIA SPEC,FROMAGE,TRIM1#

main74320-60M40-C0iTJA250..U..GEN;GDJ250,TJA250,TRJ250..(L,R,U)..RUS202401

BLACK,TRIM2#,4#

main74320-60M40-C0iTJA250..U..GEN;GDJ250,TJA250,TRJ250..(L,R,U)..RUS202401

BLACK,TRIM2#

main74320-60M40-C0iTJA250..U..GEN;GDJ250,TJA250,TRJ250..(L,R,U)..RUS202401

DESTINATION PACKAGE(OTHER-COLOMBIA SPEC,BLACK,TRIM2#,4#

74325COVER, VISOR BRACKET

main74317-60020-01iGDJ250..6FC..R;GDJ250..R..RUS;GDJ251,TRJ250..L,R;TJA250..(L,R)..RUS;GDJ250..LHD..L..EUR;TJA250..L..(GCC,GEN);GDJ250..L..(GCC,GEN,RUS,SA)202401

FROMAGE,TRIM1#,40

main74317-60020-01iGDJ250..6FC..R;GDJ250..R..RUS;GDJ251,TRJ250..L,R;TJA250..(L,R)..RUS;GDJ250..LHD..L..EUR;TJA250..L..(GCC,GEN);GDJ250..L..(GCC,GEN,RUS,SA)202401-202509

FROMAGE,TRIM1#,4#

main74317-60020-C2iGDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA)202401

BLACK,TRIM2#,41

main74317-60020-C2iGDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA)202401-202509

BLACK,TRIM2#,4#

main74317-60020-C2iGDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA)202401-202509

BLACK,TRIM2#

74348CHOLDER, VISOR, LH

main74348-33040-03iGDJ250..6FC..R;GDJ250..R..RUS;GDJ251,TRJ250..L,R;TJA250..(L,R)..RUS;GDJ250..LHD..L..EUR;TJA250..L..(GCC,GEN);GDJ250..L..(GCC,GEN,RUS,SA)202401

FROMAGE,TRIM1#,40

sub74348-33040

main74348-33040-03iGDJ250..RHD..(L,R)..EUR202401-202509

FROMAGE,TRIM1#,4#

sub74348-33040

main74348-33040-C2iGDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA)202401-202509

BLACK,TRIM2#

sub74348-33040

main74348-33040-C2iGDJ250..LHD..A..EUR;GDJ25#,TJA250..A..(ARL,GCC,GEN,RUS,SA)202401

BLACK,TRIM2#,41

sub74348-33040

main74348-33040-C2iGDJ250..RHD..A..EUR202401-202509

BLACK,TRIM2#,4#

sub74348-33040

9015250027

main90152-50027

9018906130

main90189-06130

9356755020

main93567-55020

15 parts on this diagram · 3 diagrams in section
