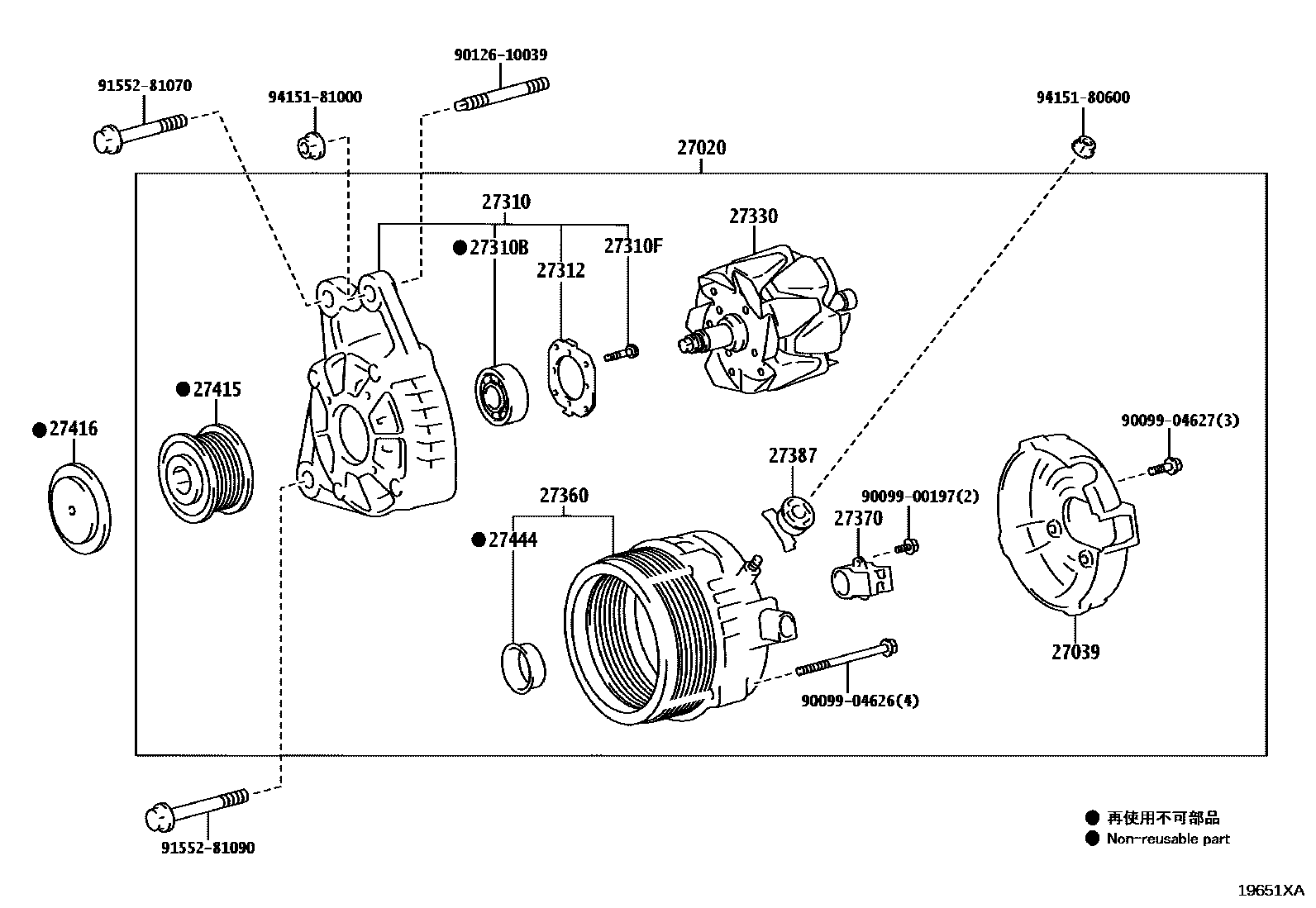

Toyota LAND CRUISER PRADO — ALTERNATOR
27020ALTERNATOR ASSY
12V 130A
main27060-11440i1GDFTV..GDJ250..(A,R)..RUS;1GDFTV..GDJ250..LHD..L..EUR;1GDFTV..GDJ250..L..(GCC,GEN);1GDFTV..GDJ250..(L,U)..(RUS,SA)202401-202509
12V 180A
main27060-11440i1GDFTV..GDJ250..(A,R)..RUS;1GDFTV..GDJ250..LHD..L..EUR;1GDFTV..GDJ250..L..(GCC,GEN);1GDFTV..GDJ250..(L,U)..(RUS,SA)202401
12V 180A,COLD AREA SPEC
main27060-11440i1GDFTV..GDJ250..(A,R)..RUS;1GDFTV..GDJ250..LHD..L..EUR;1GDFTV..GDJ250..L..(GCC,GEN);1GDFTV..GDJ250..(L,U)..(RUS,SA)202401
12V 180A,COLD AREA SPEC&REAR AIR CONDITIONER-WITH
main27060-11440i1GDFTV..GDJ250..(A,R)..RUS;1GDFTV..GDJ250..LHD..L..EUR;1GDFTV..GDJ250..L..(GCC,GEN);1GDFTV..GDJ250..(L,U)..(RUS,SA)202401-202509
12V 180A,REAR AIR CONDITIONER-WITH
12V 100A
12V 130A,COLD AREA SPEC&ENGINE-2TR-FE WITH(HEATER)&AC INVERTER OUTPUT-220V 100W
12V 130A,ENGINE-2TR-FE WITH(HEATER)&AC INVERTER OUTPUT-220V 100W
12V 130A
12V 130A,COLD AREA SPEC
12V 130A,AC INVERTER OUTPUT-220V 100W
12V 130A,AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
12V 130A
12V 180A,REAR AIR CONDITIONER-WITH
12V 180A,REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
12V 180A,REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
12V 180A,AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
12V 180A,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-120V 100W&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
12V 180A,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-220V 100W
12V 180A,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-220V 100W&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
12V 180A,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&AC INVERTER OUTPUT-220V 100W&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
12V 180A,REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-120V 100W&AUDIO(FOR OVERSEASMARKET)-AUDIO LESS & 6SPEAKER
12V 180A,REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-220V 100W
12V 180A,REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-220V 100W&AUDIO(FOR OVERSEASMARKET)-EMV(12.3INCH) & 10SPEAKER
12V 180A,AC INVERTER OUTPUT-220V 100W&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
12V 180A
12V 180A,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH
12V 180A,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
12V 180A,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
12V 180A,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
12V 180A,COLD AREA SPEC
12V 180A,COLD AREA SPEC&REAR AIR CONDITIONER-WITH
12V 180A,COLD AREA SPEC&REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-AUDIOLESS & 6SPEAKER
12V 180A,COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
27039COVER, ALTERNATOR REAR END
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH)& 10SPEAKER
COLD AREA SPEC
COLD AREA SPEC&REAR AIR CONDITIONER-WITH
COLD AREA SPEC&REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
REAR AIR CONDITIONER-WITH
REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-120V 100W&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-220V 100W
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-220V 100W&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&AC INVERTER OUTPUT-220V 100W&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-120V 100W&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-220V 100W
REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-220V 100W&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
AC INVERTER OUTPUT-220V 100W&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
main27039-38150i1GDFTV..GDJ250..(A,R)..RUS;1GDFTV..GDJ250..LHD..L..EUR;1GDFTV..GDJ250..L..(GCC,GEN);1GDFTV..GDJ250..(L,U)..(RUS,SA)202401
COLD AREA SPEC
main27039-38150i1GDFTV..GDJ250..(A,R)..RUS;1GDFTV..GDJ250..LHD..L..EUR;1GDFTV..GDJ250..L..(GCC,GEN);1GDFTV..GDJ250..(L,U)..(RUS,SA)202401
COLD AREA SPEC&REAR AIR CONDITIONER-WITH
main27039-38150i1GDFTV..GDJ250..(A,R)..RUS;1GDFTV..GDJ250..LHD..L..EUR;1GDFTV..GDJ250..L..(GCC,GEN);1GDFTV..GDJ250..(L,U)..(RUS,SA)202401-202509
REAR AIR CONDITIONER-WITH
AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
27310FRAME ASSY, DRIVE END, ALTERNATOR
COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-220V 100W
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-220V 100W&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&AC INVERTER OUTPUT-220V 100W&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-120V 100W&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-220V 100W
REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-220V 100W&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
AC INVERTER OUTPUT-220V 100W&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH)& 10SPEAKER
COLD AREA SPEC
COLD AREA SPEC&REAR AIR CONDITIONER-WITH
COLD AREA SPEC&REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
REAR AIR CONDITIONER-WITH
REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-120V 100W&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
main27310-11360i1GDFTV..GDJ250..LHD..(A,R,U)..EUR;1GDFTV..GDJ250..(A,R,U)..(GCC,GEN,SA)202401-202509
REAR AIR CONDITIONER-WITH
COLD AREA SPEC&REAR AIR CONDITIONER-WITH
COLD AREA SPEC
COLD AREA SPEC&ENGINE-2TR-FE WITH(HEATER)&AC INVERTER OUTPUT-220V 100W
COLD AREA SPEC
AC INVERTER OUTPUT-220V 100W
ENGINE-2TR-FE WITH(HEATER)&AC INVERTER OUTPUT-220V 100W
AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
main90099-10223i2TRFE..TRJ250;1GDFTV..GDJ250..LHD..(A,R,U)..EUR;1GDFTV..GDJ250..(A,R,U)..(GCC,GEN,SA)202401-202509
COLD AREA SPEC&REAR AIR CONDITIONER-WITH
COLD AREA SPEC
REAR AIR CONDITIONER-WITH
27310FSCREW(FOR ALTERNATOR DRIVE END FRAME)
main90099-00195i1GDFTV..GDJ250..LHD..(A,R,U)..EUR;1GDFTV..GDJ250..(A,R,U)..(GCC,GEN,SA)202401-202509
REAR AIR CONDITIONER-WITH
main90099-00195i1GDFTV..GDJ250..(A,R)..RUS;1GDFTV..GDJ250..LHD..L..EUR;1GDFTV..GDJ250..L..(GCC,GEN);1GDFTV..GDJ250..(L,U)..(RUS,SA)202401
COLD AREA SPEC
main90099-00195i1GDFTV..GDJ250..(A,R)..RUS;1GDFTV..GDJ250..LHD..L..EUR;1GDFTV..GDJ250..L..(GCC,GEN);1GDFTV..GDJ250..(L,U)..(RUS,SA)202401
COLD AREA SPEC&REAR AIR CONDITIONER-WITH
27312PLATE, RETAINER
COLD AREA SPEC
REAR AIR CONDITIONER-WITH
COLD AREA SPEC&REAR AIR CONDITIONER-WITH
main27312-72100i2TRFE..TRJ250;1GDFTV..GDJ250..LHD..(A,R,U)..EUR;1GDFTV..GDJ250..(A,R,U)..(GCC,GEN,SA)202401-202509
27330ROTOR ASSY, ALTERNATOR
COLD AREA SPEC&REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH)& 10SPEAKER
COLD AREA SPEC
COLD AREA SPEC&REAR AIR CONDITIONER-WITH
COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
REAR AIR CONDITIONER-WITH
REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-120V 100W&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-220V 100W
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-220V 100W&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&AC INVERTER OUTPUT-220V 100W&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-120V 100W&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-220V 100W
REAR AIR CONDITIONER-WITH&AC INVERTER OUTPUT-220V 100W&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
AC INVERTER OUTPUT-220V 100W&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
ENGINE-2TR-FE WITH(HEATER)&AC INVERTER OUTPUT-220V 100W
COLD AREA SPEC
COLD AREA SPEC&ENGINE-2TR-FE WITH(HEATER)&AC INVERTER OUTPUT-220V 100W
AC INVERTER OUTPUT-220V 100W
REAR AIR CONDITIONER-WITH
COLD AREA SPEC&REAR AIR CONDITIONER-WITH
COLD AREA SPEC
AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
27360COIL ASSY, ALTERNATOR
main27360-11360i1GDFTV..GDJ250..LHD..(A,R,U)..EUR;1GDFTV..GDJ250..(A,R,U)..(GCC,GEN,SA)202401-202509
COLD AREA SPEC
COLD AREA SPEC&REAR AIR CONDITIONER-WITH
REAR AIR CONDITIONER-WITH
ENGINE-2TR-FE WITH(HEATER)&AC INVERTER OUTPUT-220V 100W
COLD AREA SPEC
AC INVERTER OUTPUT-220V 100W
COLD AREA SPEC&ENGINE-2TR-FE WITH(HEATER)&AC INVERTER OUTPUT-220V 100W
27370HOLDER ASSY, ALTERNATOR BRUSH
27387INSULATOR, TERMINAL
main27387-20130i2TRFE..TRJ250;1GDFTV..GDJ250..LHD..(A,R,U)..EUR;1GDFTV..GDJ250..(A,R,U)..(GCC,GEN,SA)202401-202509
COLD AREA SPEC&REAR AIR CONDITIONER-WITH
REAR AIR CONDITIONER-WITH
COLD AREA SPEC
27415PULLEY, ALTERNATOR W/CLUTCH
AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
COLD AREA SPEC&REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
REAR AIR CONDITIONER-WITH
REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
COLD AREA SPEC
COLD AREA SPEC&REAR AIR CONDITIONER-WITH
27416CAP, ALTERNATOR PULLEY
27444PACKING, ALTERNATOR BEARING COVER
main27444-21190i2TRFE..TRJ250;1GDFTV..GDJ250..LHD..(A,R,U)..EUR;1GDFTV..GDJ250..(A,R,U)..(GCC,GEN,SA)202401-202509
9009900197
main90099-00197
9009904626
main90099-04626
9009904627
main90099-04627
9012610039
main90126-10039
9155281070
main91552-81070
9155281090
main91552-81090
9415180600
main94151-80600
9415181000
main94151-81000
21 parts on this diagram · 6 diagrams in section
