Toyota LAND CRUISER 90 — HEATING & AIR CONDITIONING - SET

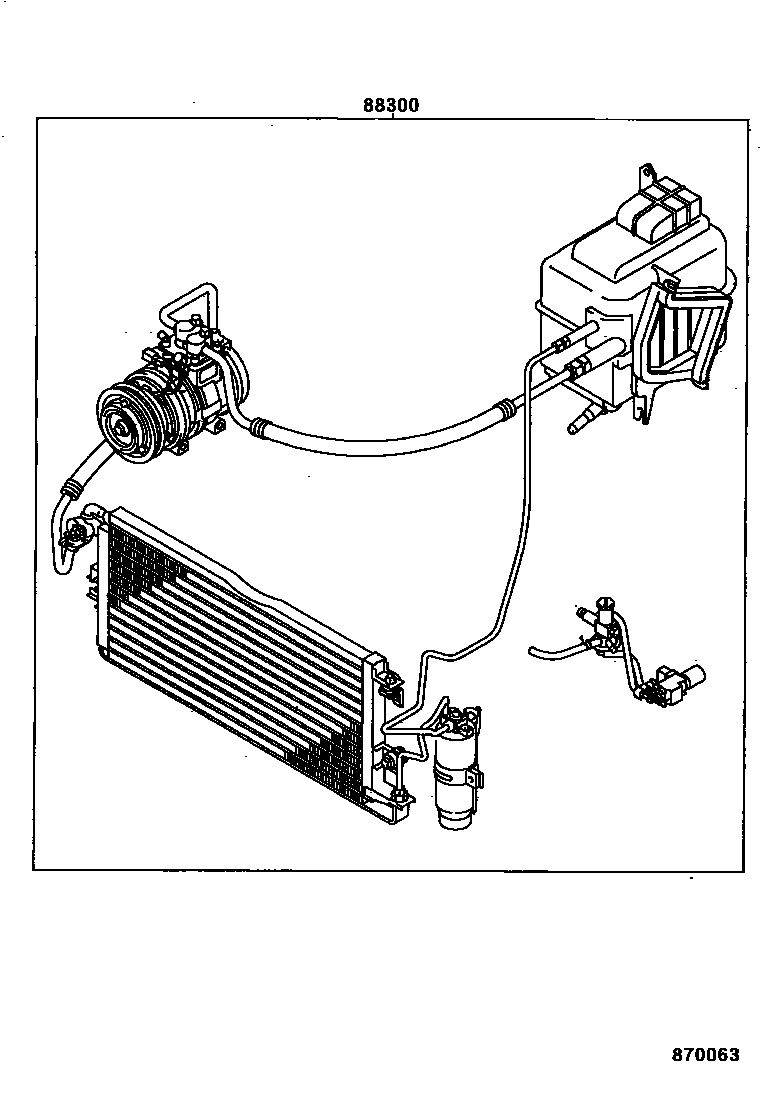

Parts diagram

88300COOLER & ACCESSORY ASSY

main80830-60150i200008-200209

main80830-60160i200008-200209

main80830-60170i200008-200209

main80830-60200i200008-200209

main80830-60210i200008-200209

W(VISCOUS HEATER)

main80830-60220i200008-200209

W(VISCOUS HEATER)

main88300-60820i199604-199801

main88300-60821i199801-199906

main88300-60822i199906-200209

main88300-60840i199604-199801

main88300-60841i199801-199906

main88300-60842i199906-200008

main88300-60860i199604-199709

main88300-60861i199709-199906

main88300-60862i199906-200108

main88300-60863i200108-200209

main88300-6A320i199604-199709

main88300-6A321i199709-199906

main88300-6A322i199906-200008

1 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota LAND CRUISER 90

This section contains 1 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota LAND CRUISER 90. Key components include: COOLER & ACCESSORY ASSY.
