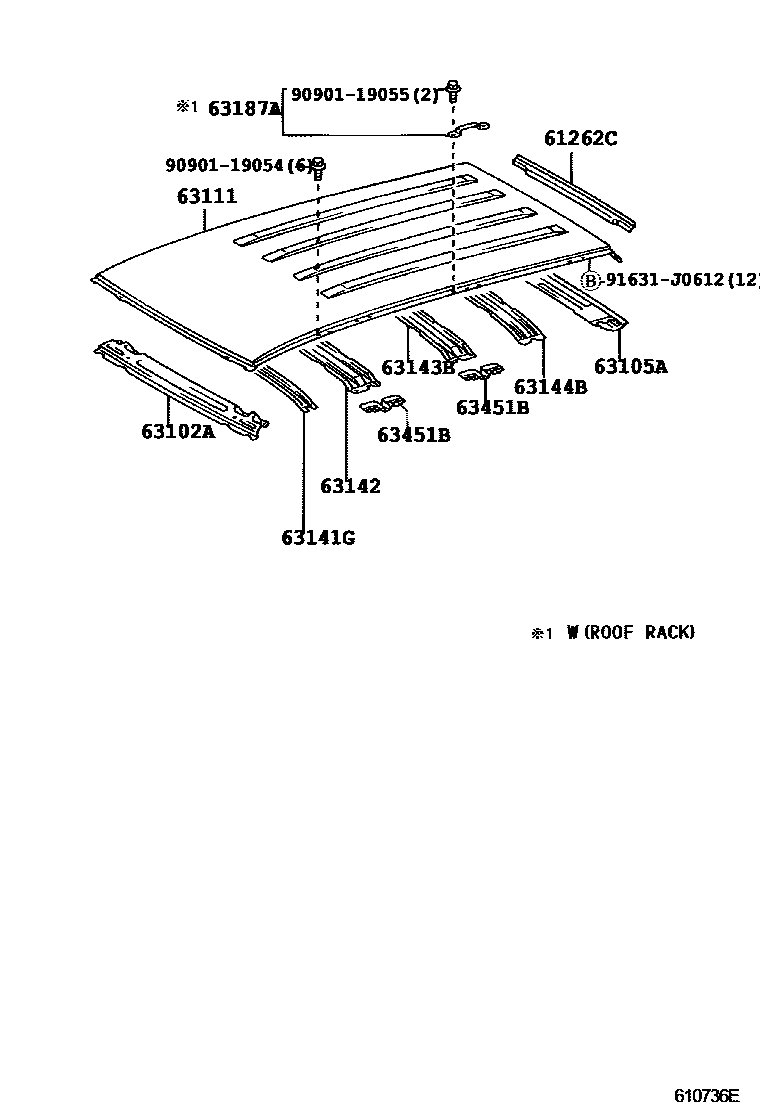

Toyota LAND CRUISER 100 — ROOF PANEL & BACK PANEL

61262CCHANNEL, ROOF DRIP, REAR

main61263-60050i199801-199906

main61263-60051i199906-200208

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60070i199801-200201

main63102-60071i200201-200208

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60170i199801-199906

main63105-60171i199906-200208

main63105-60180i199801-199906

main63105-60181i199906-200208

main63105-60190i199801-199906

main63105-60191i199906-200208

63111PANEL, ROOF

main63111-60430i199801-199906

main63111-60431i200505

main63111-60440i199801-199906

W(MOON ROOF)

main63111-60441i200208-200505

W(MOON ROOF)

main63111-60450i199801-199906

main63111-60451i200505

main63111-60460i199801-199906

W(MOON ROOF)

main63111-60461i200309-200506

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-60060i200208-200505

63142REINFORCEMENT, ROOF PANEL, NO.2

main63104-60020i199801-200208

W(MOON ROOF)

main63104-60040i199801-200208

W(MOON ROOF & ROOF RACK)

main63143-60030i200505

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-60050i199801-200008

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63127-60020i200208-200505

63187ABRACKET, ROOF RACK, REAR

main63187-60030×6i199801-200208

63451BREINFORCEMENT, ROOF RACK, NO.1

main63451-60040×2i199801-200208

W(MOON ROOF)

9090119054

main90901-19054

9090119055

main90901-19055

91631J0612

main91631-J0612

13 parts on this diagram · 6 diagrams in section

ROOF PANEL & BACK PANEL for Toyota LAND CRUISER 100

This section contains 103 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota LAND CRUISER 100. Key components include: SEAL, SUN ROOF TO ROOF HEAD LINING, CHANNEL, ROOF DRIP, REAR, BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1, BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, RH, BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, LH.
