Toyota LAND CRUISER 100 — PARTIAL ENGINE ASSEMBLY

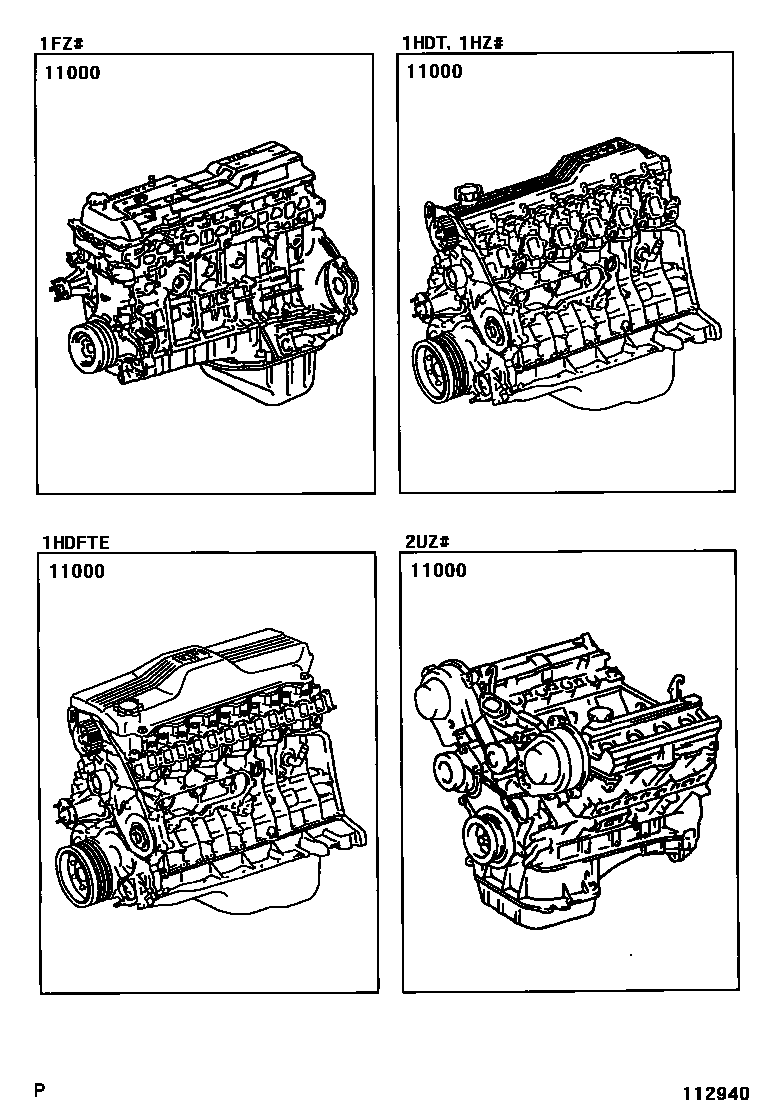

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-17651i200208-200505

main19000-17660i199801-200208

main19000-17670i199801-200208

main19000-17680i200405-200505

main19000-17690i200505

main19000-50430i199801-199903

main19000-50431i199903-200006

main19000-50432i200006-200007

main19000-50433i200007-200008

main19000-50450i199801-199903

main19000-50451i199903-200006

main19000-50452i200006-200007

main19000-50453i200007-200110

main19000-50620i200108-200110

SAUDI ARABIA SPEC

main19000-50650i200208-200401

main19000-50670i200208-200401

main19000-50680i200110-200208

SAUDI ARABIA SPEC

main19000-50690i200208-200401

SAUDI ARABIA OR PERU SPEC

main19000-50B40i200401-200505

main19000-50B60i200401-200506

main19000-50B70i200506

main19000-50B80i200401-200505

main19000-66110i199801-200208

main19000-66120i199801-200208

main19000-66130i200309-200506

1 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota LAND CRUISER 100

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota LAND CRUISER 100. Key components include: ENGINE ASSY, PARTIAL.
