Toyota KLUGER — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-48060i200308

85160LINK ASSY, WINDSHIELD WIPER

main85150-48050i200308

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223×2i200308-200705

85192COVER, WINDSHIELD WIPER ARM

main85292-13010×2i200308-200705

85211BARM, FRONT WIPER, RH

main85211-48110i200308-200705

85212ABLADE, FR WIPER, RH

main85212-46010i200308-200705

85214ARUBBER, WIPER, RH

main85214-48010i200308-200705

85214BRUBBER, WIPER, LH

main85214-24050i200308-200606

main85214-24051i200606-200705

85221BARM, FRONT WIPER, LH

main85221-48110i200308-200705

85222ABLADE, FR WIPER, LH

main85222-48120i200308-200605

main85222-48121i200606-200705

9011906814

main90119-06814

9014860091

main90148-60091

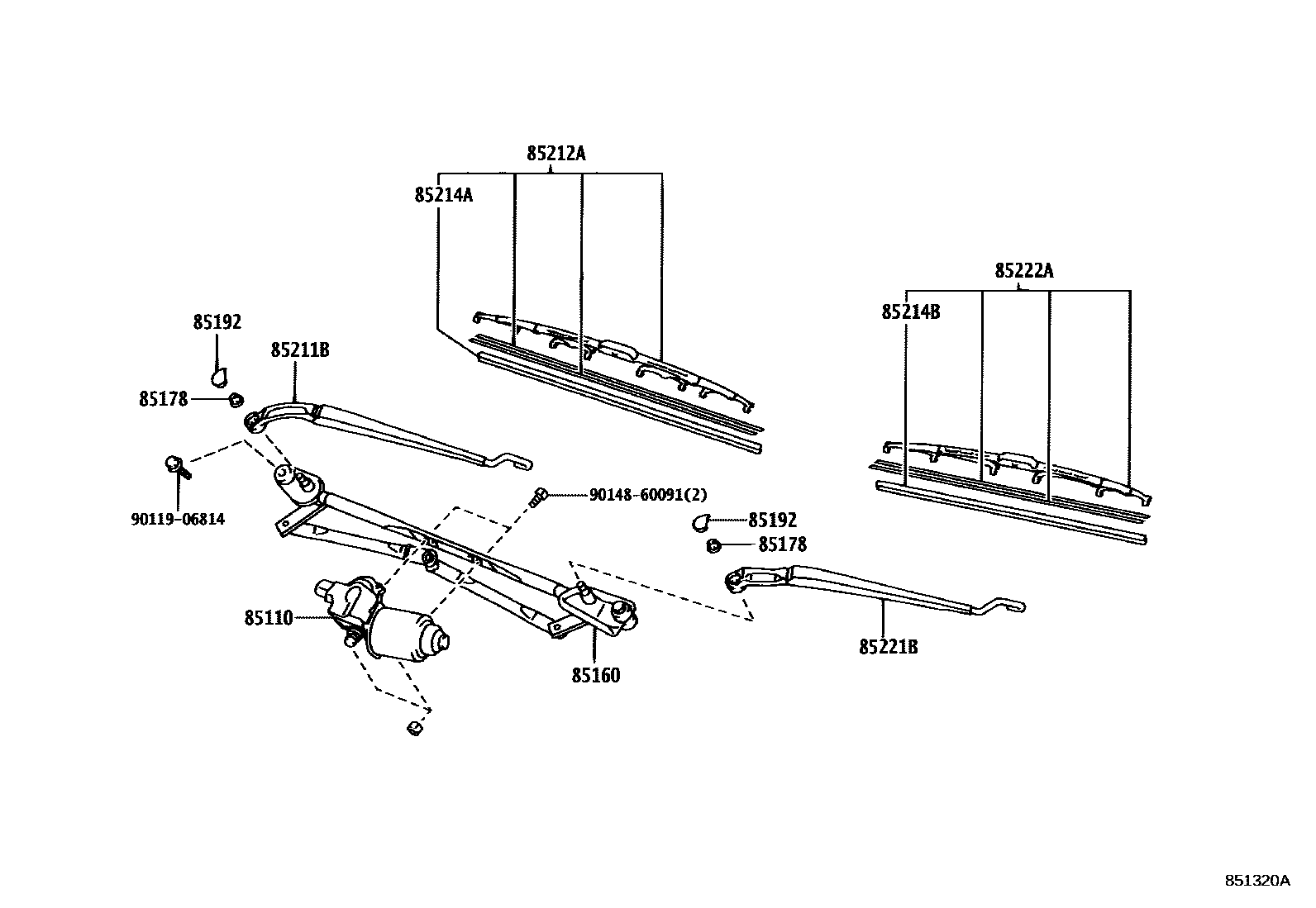

12 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota KLUGER

This section contains 12 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota KLUGER. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH.
