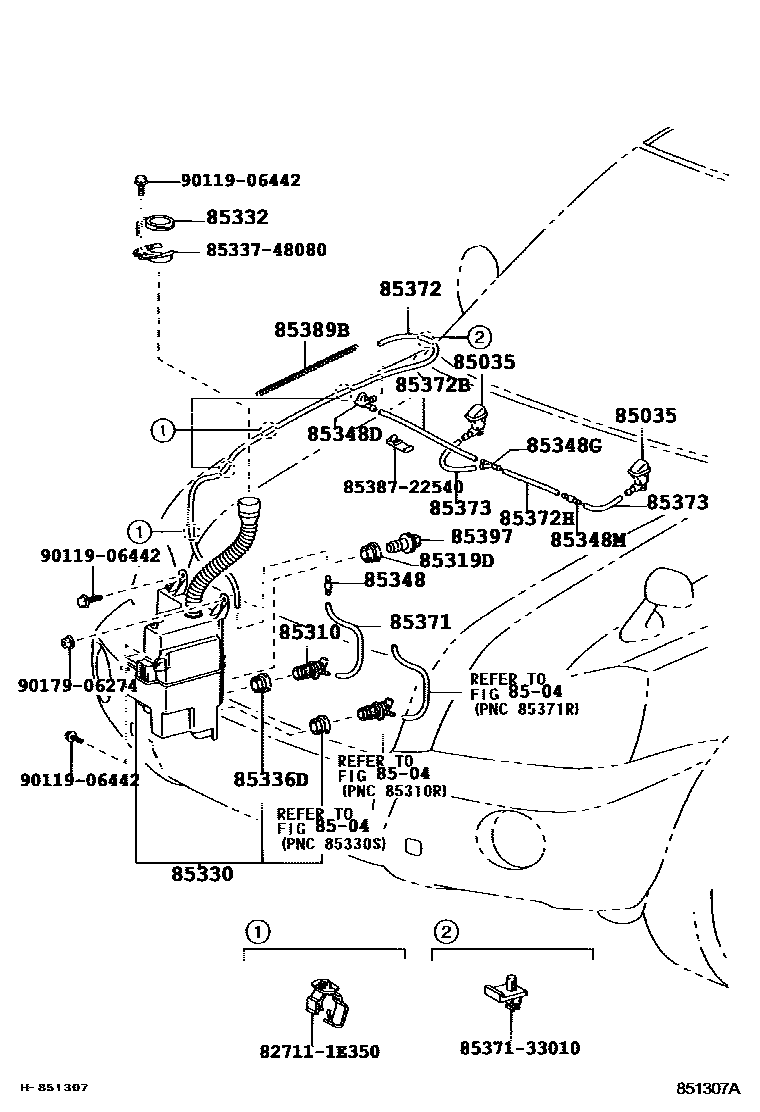

Toyota KLUGER — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-48050×2i200308

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190i200308

85319DPACKING, FRONT WASHER

main85319-33230i200308

85330JAR ASSY, WINDSHIELD WASHER

main85315-48060i200308

85332CAP, WINDSHIELD WASHER JAR

main85316-48060i200308

85336DPACKING, WINDSHIELD WASHER JAR

main85336-60300i200308

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260i200308-200504

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-33070i200308-200504

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250i200308-200504

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-10260i200308-200504

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i200308

L=1450(*H,L=290)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i200308-200504

L=1450

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i200308-200504

L=1450(*H,L=510)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i200308-200504

L=1450(*H,L=390)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i200308

L=1450(*H,L=210)

85389BPROTECTOR, WINDSHIELD WASHER

main85389-48150i200505

85397SWITCH ASSY,LEVEL WARNING

main85397-33230i200308

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350

8533748080CASE, LEVEL WARNING SWITCH

main85337-48080

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

8538722540CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-22540

9011906442

main90119-06442

9017906274

main90179-06274

24 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota KLUGER

This section contains 24 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota KLUGER. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, PACKING, FRONT WASHER, JAR ASSY, WINDSHIELD WASHER.
