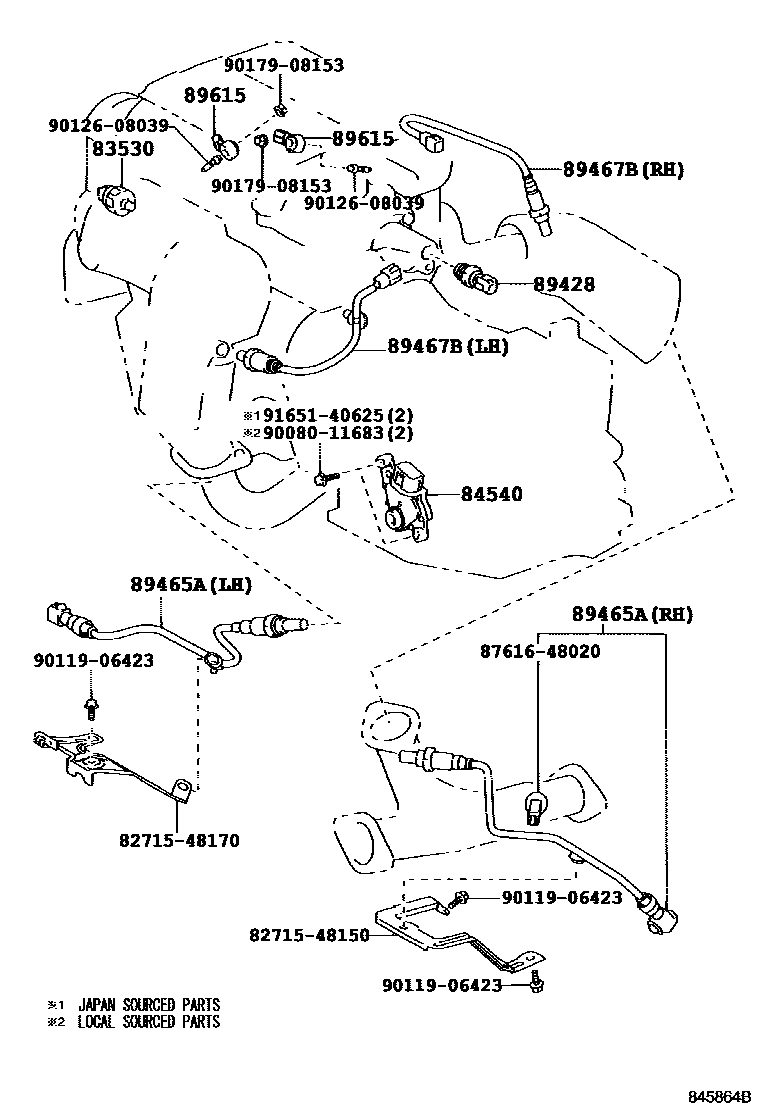

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iMCU28200308

(L)

main83530-28020iMCU28200308

(J),DENSO

main83530-60020iMCU28200308

(J),YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-0E010iMCU28200308-200705

(L)

main84540-48010iMCU28200308-200705

(J)

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-41010iMCU28200308-200705

89465ASENSOR, OXYGEN NO.2

main89465-48170iMCU28200308

LH

main89465-48180iMCU28200308

RH

89467BSENSOR, AIR FUEL RATIO

main89467-48050iMCU28200308

LH

main89467-48060iMCU28200308

RH

89615SENSOR, KNOCK CONTROL

main89615-20090×2iMCU28200308

8271548150BRACKET,WIRING HARNESS CLAMP

main82715-48150

8271548170BRACKET,WIRING HARNESS CLAMP

main82715-48170

8761648020CLAMP, COOLING UNIT CASE

main87616-48020

9008011683

main90080-11683

9011906423

main90119-06423

9012608039

main90126-08039

9017908153

main90179-08153

9165140625

main91651-40625

14 parts on this diagram · 7 diagrams in section
