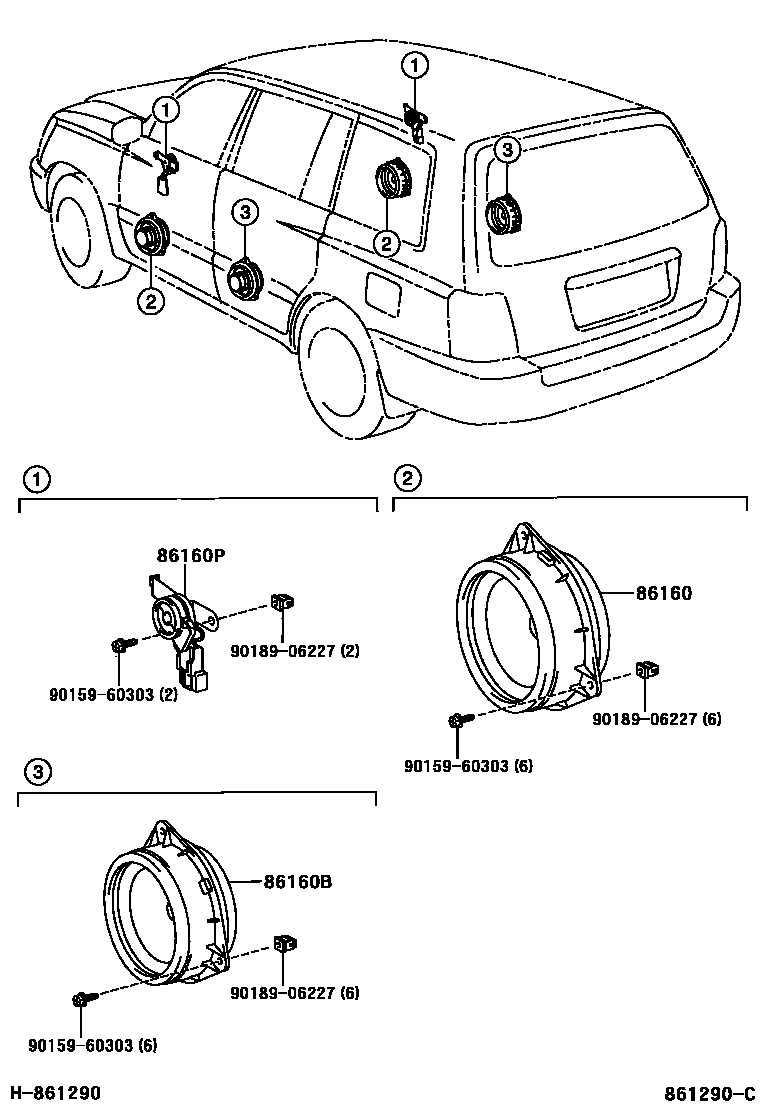

Toyota KLUGER — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-48160×2i200308

86160BSPEAKER ASSY, REAR

main86160-48170×2i200308

86160PSPEAKER ASSY, FRONT NO.2

main86160-48140i200308

main86160-48150i200308

9015960303

main90159-60303

9018906227

main90189-06227

5 parts on this diagram · 1 diagram in section

SPEAKER for Toyota KLUGER

This section contains 5 genuine Toyota parts for the SPEAKER system of the Toyota KLUGER. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
