Toyota KLUGER — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-60190i200308-200610

main87810-60191i200611

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-48460i200308-200705

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-48410i200308-200705

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-48460-A0i200308-200705

SUPER WHITE 2,040

main87910-48460-B0i200308-200705

SILVER ME.,1C0

main87910-48460-C0i200308-200705

BLACK,202

main87910-48460-D0i200308-200705

DK. RED M.M.,3Q3

main87910-48460-E0i200308-200705

BEIGE M.M.,4R3

main87910-48460-G0i200308-200705

GREEN M.M.,6T5

main87910-48460-J0i200308-200705

GRAYISH BLUE ME.,8N6

main87910-48460-J1i200308-200705

DK.BLUE M.M.,8P4

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-48410-A0i200308-200705

SUPER WHITE 2,040

main87940-48410-B0i200308-200705

SILVER ME.,1C0

main87940-48410-C0i200308-200705

BLACK,202

main87940-48410-D0i200308-200705

DK. RED M.M.,3Q3

main87940-48410-E0i200308-200705

BEIGE M.M.,4R3

main87940-48410-G0i200308-200705

GREEN M.M.,6T5

main87940-48410-J0i200308-200705

GRAYISH BLUE ME.,8N6

main87940-48410-J1i200308-200705

DK.BLUE M.M.,8P4

9010506216

main90105-06216

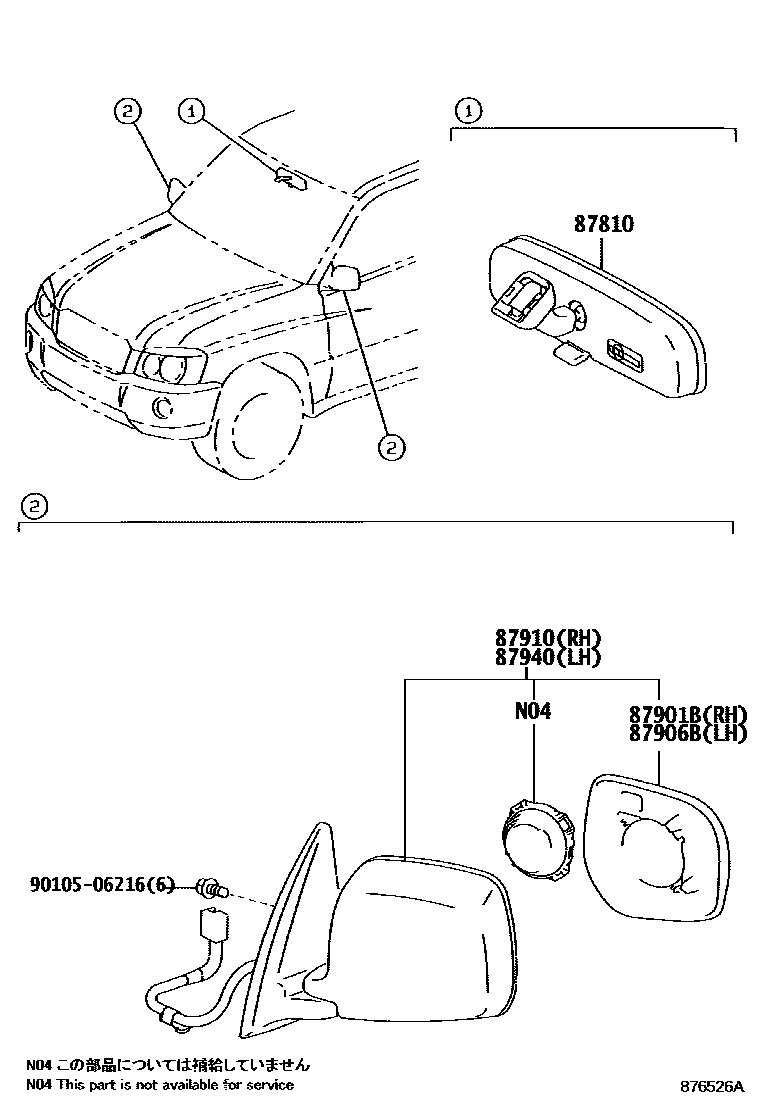

6 parts on this diagram · 1 diagram in section

MIRROR for Toyota KLUGER

This section contains 6 genuine Toyota parts for the MIRROR system of the Toyota KLUGER. Key components include: MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH, MIRROR ASSY, OUTER REAR VIEW, LH.
